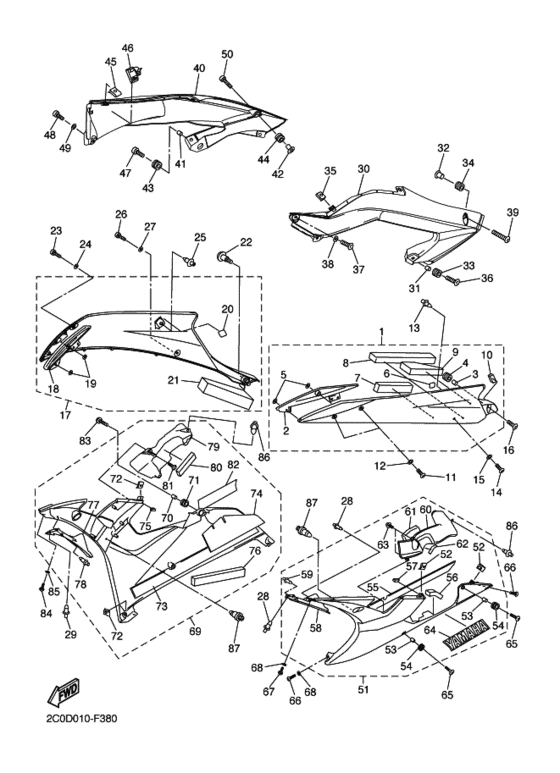

Cowl pnl Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2C0D
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-Y283U-30-P2 Panel Assembly 1パネル アセンブリ １ ; ＷＯＧ; ＭＢＬ２ |
2C0-Y283U-30-P2 |
US $240.95 |
||
|
2
|
2
2C0-28219-00-00 Cover 1．カバー １; |
2C0-28219-00-00 |
from US $11.23 |
||
|
3
|
3
90387-06057-00 Collar．カラー; |
90387-06057-00 |
from US $2.55 |
||
|
4
|
4
90480-14003-00 Grommet．グロメツト; |
90480-14003-00 |
from US $1.34 |
||
|
5
|
5
90183-05M02-00 Nut, Spring．ナツト，スプリング; |
90183-05M02-00 |
from US $1.34 |
||
|
6
|
6
1UF-15379-00-00 Seal．シール; |
1UF-15379-00-00 |
from US $1.70 |
||
|
7
|
7
2C0-2836T-00-00 Damper, Locating 1．ダンパ，ロケーテイング １; |
2C0-2836T-00-00 |
from US $1.31 |
||
|
8
|
8
2C0-2837J-00-00 Damper 5．ダンパ ５; |
2C0-2837J-00-00 |
from US $4.79 |
||
|
9
|
9
2C0-2847S-00-00 Damper 11．ダンパ １１; |
2C0-2847S-00-00 |
from US $5.14 |
||
|
10
|
10
3XV-21717-00-00 Damper．ダンパ; |
3XV-21717-00-00 |
from US $2.27 |
||
|
11
|
11
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
12
|
12
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
13
|
13
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
14
|
14
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
15
|
15
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
16
|
16
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
17
|
17
2C0-Y283V-30-P2
Panel Assembly 2
パネル アセンブリ ２ ; ＷＯＧ; ＭＢＬ２ |
2C0-Y283V-30-P2 |
— | ||
|
18
|
18
2C0-28229-00-00 Cover 2．カバー ２; |
2C0-28229-00-00 |
US $8.96 |
||
|
19
|
19
90183-05M02-00 Nut, Spring．ナツト，スプリング; |
90183-05M02-00 |
from US $1.34 |
||
|
20
|
20
1UF-15379-00-00 Seal．シール; |
1UF-15379-00-00 |
from US $1.70 |
||
|
21
|
21
2C0-2837K-00-00 Damper 6．ダンパ ６; |
2C0-2837K-00-00 |
from US $6.58 |
||
|
22
|
22
90109-06078-00 Bolt |
90109-06078-00 |
from US $7.65 |
||
|
23
|
23
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
24
|
24
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
25
|
25
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
26
|
26
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
27
|
27
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
28
|
28
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
29
|
29
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
30
|
30
2C0-2117V-00-P2 Cover 7カバー ７; ＳＭＸ |
2C0-2117V-00-P2 |
from US $175.46 |
||
|
31
|
31
90387-06057-00 Collarカラー; |
90387-06057-00 |
from US $2.55 |
||
|
32
|
32
90387-067K8-00 Collarカラー; |
90387-067K8-00 |
from US $2.69 |
||
|
33
|
33
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
34
|
34
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
35
|
35
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
35
|
35
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
36
|
36
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
37
|
37
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
38
|
38
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
39
|
39
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
40
|
40
2C0-2117W-00-P2 Cover 8カバー ８; ＳＭＸ |
2C0-2117W-00-P2 |
from US $175.46 |
||
|
41
|
41
90387-06057-00 Collarカラー; |
90387-06057-00 |
from US $2.55 |
||
|
42
|
42
90387-067K8-00 Collarカラー; |
90387-067K8-00 |
from US $2.69 |
||
|
43
|
43
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
44
|
44
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
45
|
45
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
45
|
45
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
46
|
46
904-64130-07-00 Clamp |
904-64130-07-00 |
from US $4.11 |
||
|
47
|
47
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
48
|
48
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
49
|
49
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
50
|
50
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
51
|
51
2C0-Y2808-10-P2 Cover Assy, Underカバーアセンブリ ; ＷＧ; ＳＭＸ |
2C0-Y2808-10-P2 |
from US $411.93 |
||
|
52
|
52
901-83050-76-00
Nut,spring
．ナツト，スプリング; |
901-83050-76-00 |
— | ||
| replacement | |||||
|
52
|
52
901-83050-A6-00 Nut, Spring．ナツト，スプリング; |
901-83050-A6-00 |
from US $1.84 |
||
|
53
|
53
90387-06057-00 Collar．カラー; |
90387-06057-00 |
from US $2.55 |
||
|
54
|
54
90480-14003-00 Grommet．グロメツト; |
90480-14003-00 |
from US $1.34 |
||
|
55
|
55
2C0-2838G-00-00 Seat 1．シート １; |
2C0-2838G-00-00 |
from US $24.09 |
||
|
56
|
56
2C0-2836U-00-00 Damper, Locating 2．ダンパ，ロケーテイング ２; |
2C0-2836U-00-00 |
from US $8.93 |
||
|
57
|
57
2C0-2847N-00-00 Damper 8．ダンパ ８; |
2C0-2847N-00-00 |
from US $1.70 |
||
|
58
|
58
2C0-2836L-00-00 Panel, Inner 2．パネル，インナ ２; |
2C0-2836L-00-00 |
from US $20.12 |
||
|
59
|
59
902-69060-08-00 Rivet (plastic-black)．リベツト; |
902-69060-08-00 |
from US $1.56 |
||
|
60
|
60
2C0-2838U-00-00 Duct 4．グクト ４; |
2C0-2838U-00-00 |
from US $38.82 |
||
|
61
|
61
2C0-2834F-00-00 Damper．ダンパ; |
2C0-2834F-00-00 |
from US $1.19 |
||
|
62
|
62
1LJ-2414J-00-00 Damper, Plate 2．ダンパ，プレート ２; |
1LJ-2414J-00-00 |
from US $2.55 |
||
|
63
|
63
901-64050-14-00
Screw, Tapping
．スクリユ，タツピング; |
901-64050-14-00 |
— | ||
| replacement | |||||
|
63
|
63
901-64050-01-00 Screw, Tapping．スクリユ，タツピング; |
901-64050-01-00 |
from US $1.34 |
||
|
64
|
64
99247-00240-00 Emblem, Yamaha．エンブレム，ヤマハ; |
99247-00240-00 |
from US $10.91 |
||
|
65
|
65
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
66
|
66
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
67
|
67
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
68
|
68
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
69
|
69
2C0-Y2809-10-P2 Cover Assy 2, Underカバーアセンブリ ２ ; ＷＧ; ＳＭＸ |
2C0-Y2809-10-P2 |
from US $416.02 |
||
|
70
|
70
90387-06057-00 Collar．カラー; |
90387-06057-00 |
from US $2.55 |
||
|
71
|
71
90480-14003-00 Grommet．グロメツト; |
90480-14003-00 |
from US $1.34 |
||
|
72
|
72
901-83050-76-00
Nut,spring
．ナツト，スプリング; |
901-83050-76-00 |
— | ||
| replacement | |||||
|
72
|
72
901-83050-A6-00 Nut, Spring．ナツト，スプリング; |
901-83050-A6-00 |
from US $1.84 |
||
|
73
|
73
2C0-2848K-00-00 Seat 2．シート ２; |
2C0-2848K-00-00 |
from US $24.09 |
||
|
74
|
74
2C0-2848H-00-00 Seat．シート; |
2C0-2848H-00-00 |
from US $17.30 |
||
|
75
|
75
2C0-2847P-00-00 Damper 9．ダンパ ９; |
2C0-2847P-00-00 |
from US $0.74 |
||
|
76
|
76
2C0-2847R-00-00 Damper 10．ダンパ １０; |
2C0-2847R-00-00 |
from US $10.91 |
||
|
77
|
77
2C0-2836M-00-00 Panel, Inner 3．パネル，インナ ３; |
2C0-2836M-00-00 |
from US $20.12 |
||
|
78
|
78
902-69060-08-00 Rivet (plastic-black)．リベツト; |
902-69060-08-00 |
from US $1.56 |
||
|
79
|
79
2C0-2838J-00-00 Duct 5．グクト ５; |
2C0-2838J-00-00 |
from US $38.82 |
||
|
80
|
80
2C0-2834E-00-00 Damper 3．ダンパ １; |
2C0-2834E-00-00 |
from US $2.27 |
||
|
81
|
81
901-64050-14-00
Screw, Tapping
．スクリユ，タツピング; |
901-64050-14-00 |
— | ||
| replacement | |||||
|
81
|
81
901-64050-01-00 Screw, Tapping．スクリユ，タツピング; |
901-64050-01-00 |
from US $1.34 |
||
|
82
|
82
99247-00240-00 Emblem, Yamaha．エンブレム，ヤマハ; |
99247-00240-00 |
from US $10.91 |
||
|
83
|
83
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
84
|
84
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
85
|
85
902-02051-80-00 Washer, Plateワツシヤ，プレート; |
902-02051-80-00 |
from US $1.66 |
||
|
86
|
86
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
87
|
87
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
