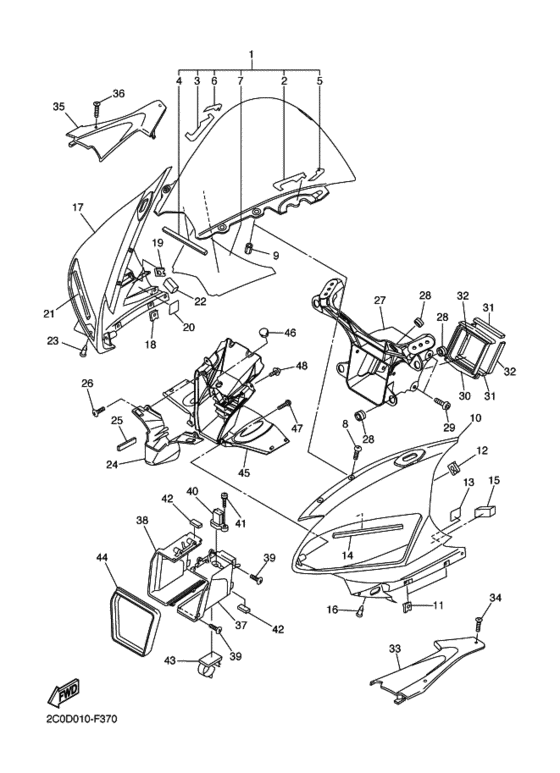

Cowling 1 Diagram Yamaha YZF-R6/ YZF600 R6 RaceBase
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 2C0D
- Sales region
- Japan (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Note
- 競技用モデル
- Model
- YZF-R6R (RaceBase)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-Y2881-40-00 Windshieldウインドシールド; |
2C0-Y2881-40-00 |
US $164.94 |
||
|
2
|
2
2C0-28238-00-00 Seal 3．シール ３; |
2C0-28238-00-00 |
US $6.02 |
||
|
3
|
3
2C0-28268-00-00 Seal 4．シール ４; |
2C0-28268-00-00 |
from US $8.50 |
||
|
4
|
4
2C0-28237-00-00 Damper 3．ダンパ ３; |
2C0-28237-00-00 |
from US $2.13 |
||
|
5
|
5
2C0-28218-00-00 Seal 1．シール １; |
2C0-28218-00-00 |
US $4.26 |
||
|
6
|
6
2C0-28228-00-00 Seal 2．シール ２; |
2C0-28228-00-00 |
from US $5.81 |
||
|
7
|
7
2C0-2832P-00-00 Graphic, 18．グラフイツク １８; |
2C0-2832P-00-00 |
US $92.45 |
||
|
8
|
8
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.56 |
||
|
9
|
9
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
10
|
10
2C0-2835G-00-P2 Body, Front Upper 1ＳＭＸ |
2C0-2835G-00-P2 |
from US $143.69 |
||
| replacements | |||||
|
10
|
10
2C0-2835G-01-P2 Body, Front Upper 1ＳＭＸ |
2C0-2835G-01-P2 |
from US $109.87 |
||
|
10
|
10
2C0-2835G-02-P2 ＳＭＸ |
2C0-2835G-02-P2 |
US $208.13 |
||
|
11
|
11
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
11
|
11
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
13
|
13
1UF-15379-00-00 Sealシール; |
1UF-15379-00-00 |
from US $1.70 |
||
|
14
|
14
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
15
|
15
2C0-2414R-00-00 Damper, Plate 6ダンパ，プレート ６; |
2C0-2414R-00-00 |
from US $2.69 |
||
|
16
|
16
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
17
|
17
2C0-2835H-00-P2 Body, Front Upper 2ＳＭＸ |
2C0-2835H-00-P2 |
from US $134.59 |
||
| replacements | |||||
|
17
|
17
2C0-2835H-01-P2 Body, Front Upper 2ＳＭＸ |
2C0-2835H-01-P2 |
from US $109.87 |
||
|
17
|
17
2C0-2835H-02-P2 ＳＭＸ |
2C0-2835H-02-P2 |
US $181.98 |
||
|
18
|
18
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
19
|
19
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
20
|
20
1UF-15379-00-00 Sealシール; |
1UF-15379-00-00 |
from US $1.70 |
||
|
21
|
21
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
22
|
22
2C0-2414R-00-00 Damper, Plate 6ダンパ，プレート ６; |
2C0-2414R-00-00 |
from US $2.69 |
||
|
23
|
23
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
24
|
24
2C0-28365-00-P2 Coverカバー; ＳＭＸ |
2C0-28365-00-P2 |
from US $42.02 |
||
|
25
|
25
2C0-28372-00-00 Damper |
2C0-28372-00-00 |
from US $1.98 |
||
|
26
|
26
97707-40016-00 Screw, Tappingスクリユ，タツピング; |
97707-40016-00 |
from US $1.42 |
||
|
27
|
27
2C0-28356-00-00 Stay 1ステー １; |
2C0-28356-00-00 |
from US $248.69 |
||
|
28
|
28
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
29
|
29
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.70 |
||
|
30
|
30
2C0-28342-00-00 Joint |
2C0-28342-00-00 |
from US $2.84 |
||
| replacements | |||||
|
30
|
30
2C0-28342-01-00 Joint |
2C0-28342-01-00 |
from US $4.11 |
||
|
30
|
30
2C0-28342-02-00 JOINT |
2C0-28342-02-00 |
from US $4.11 |
||
|
31
|
31
2C0-28217-00-00 Damper 1 |
2C0-28217-00-00 |
from US $1.70 |
||
|
32
|
32
2C0-28227-00-00 Damper 2 |
2C0-28227-00-00 |
from US $1.70 |
||
|
33
|
33
2C0-2837L-00-00 Panel, Console 1パネル，コンソール １; |
2C0-2837L-00-00 |
from US $25.50 |
||
|
34
|
34
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
35
|
35
2C0-2837M-00-00 Panel, Console 2パネル，コンソール ２; |
2C0-2837M-00-00 |
from US $25.50 |
||
|
36
|
36
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
37
|
37
2C0-2838R-00-00 Duct 2 |
2C0-2838R-00-00 |
from US $8.93 |
||
|
38
|
38
2C0-2838T-00-00 Duct 3 |
2C0-2838T-00-00 |
from US $7.74 |
||
|
39
|
39
97707-40016-00 Screw, Tappingスクリユ，タツピング; |
97707-40016-00 |
from US $1.42 |
||
|
40
|
40
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
41
|
41
97707-50116-00 Screw, Pan Tap.4スクリユ，タツピング; |
97707-50116-00 |
US $1.07 |
||
| replacement | |||||
|
41
|
41
97707-50516-00 Screw, Tappingスクリユ，タツピング; |
97707-50516-00 |
from US $0.95 |
||
|
42
|
42
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
43
|
43
904-64130-07-00 Clamp |
904-64130-07-00 |
from US $4.11 |
||
|
44
|
44
2C0-28371-00-00 Damper |
2C0-28371-00-00 |
from US $13.60 |
||
|
45
|
45
2C0-2836K-00-00 Panel, Inner 1 |
2C0-2836K-00-00 |
from US $53.19 |
||
|
46
|
46
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $1.66 |
||
|
47
|
47
977-07500-16-00
Screw, Tapping(4Mv)
スクリユ，トラスヘツドタツピング; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
47
|
47
90167-05077-00 Screw, Tapping(4Tv)スクリユ，トラスヘツドタツピング; |
90167-05077-00 |
from US $1.84 |
||
|
48
|
48
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
