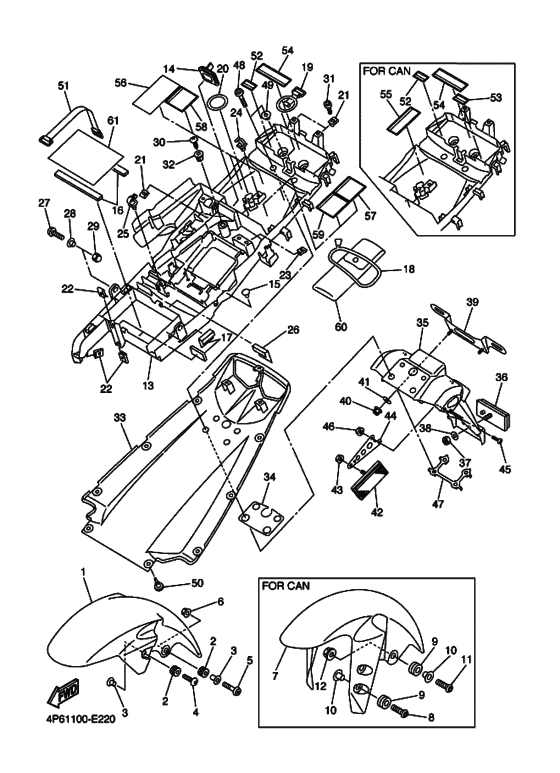

Fender Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2006
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4P63
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6S YZF-R6SV
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
5PW-21511-00-P1 Fender, FrontUR DPBMC |
5PW-21511-00-P1 |
from US $178.25 |
||
| replacements | |||||
|
7
|
7
5PW-21511-01-P1 Fender, FrontUR DPBMC |
5PW-21511-01-P1 |
from US $178.25 |
||
|
7
|
7
5PW-21511-02-P1 UR DPBMC |
5PW-21511-02-P1 |
US $213.39 |
||
|
8
|
8
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.84 |
||
|
9
|
9
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
10
|
10
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
10
|
10
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
11
|
11
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.69 |
||
|
12
|
12
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
13
|
13
5SL-8212B-01-00 Box, Battery 1 |
5SL-8212B-01-00 |
from US $105.14 |
||
|
14
|
14
5MT-2172X-00-00 Cover, Taillight |
5MT-2172X-00-00 |
US $5.35 |
||
|
15
|
15
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
15
|
15
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
16
|
16
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.13 |
||
|
17
|
17
3KJ-24723-00-00 Damper, Seat |
3KJ-24723-00-00 |
from US $2.13 |
||
|
18
|
18
3YX-21376-00-00 Band, Tool |
3YX-21376-00-00 |
from US $11.33 |
||
|
19
|
19
5SL-21646-00-00 Band |
5SL-21646-00-00 |
from US $5.81 |
||
|
20
|
20
5SL-21647-00-00 Band |
5SL-21647-00-00 |
from US $2.69 |
||
|
21
|
21
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
21
|
21
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
22
|
22
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
22
|
22
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
23
|
23
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
24
|
24
90464-07259-00 Clamp |
90464-07259-00 |
from US $1.70 |
||
|
25
|
25
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.34 |
||
|
26
|
26
5JW-2139X-00-00 Damper |
5JW-2139X-00-00 |
from US $1.70 |
||
|
27
|
27
90111-06007-00 Bolt, Button Head |
90111-06007-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
28
|
28
903-87060-22-00
Collar
|
903-87060-22-00 |
— | ||
| replacement | |||||
|
28
|
28
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.70 |
||
|
29
|
29
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
30
|
30
97707-60020-00 Screw, Tapping |
97707-60020-00 |
from US $0.52 |
||
|
31
|
31
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
32
|
32
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
33
|
33
5SL-21611-00-P1 Fender, RearUR DPBMC |
5SL-21611-00-P1 |
from US $154.98 |
||
|
34
|
34
5SL-21669-00-00 Seal |
5SL-21669-00-00 |
US $12.82 |
||
|
35
|
35
5SL-21629-11-00 Guard, Mud |
5SL-21629-11-00 |
from US $35.68 |
||
|
36
|
36
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
37
|
37
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
37
|
37
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
38
|
38
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
39
|
39
5MT-84751-00-00 Bracket, License |
5MT-84751-00-00 |
from US $13.60 |
||
|
40
|
40
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
40
|
40
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
41
|
41
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
42
|
42
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
43
|
43
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
44
|
44
5PW-21688-00-00 Bracket, Rear Stay |
5PW-21688-00-00 |
from US $4.41 |
||
|
45
|
45
90150-04041-00 Screw, Round Head |
90150-04041-00 |
from US $1.84 |
||
| replacement | |||||
|
45
|
45
98907-04012-00 Screw, Binding |
98907-04012-00 |
from US $0.76 |
||
|
46
|
46
95607-04100-00 Nut, U |
95607-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
46
|
46
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
47
|
47
5PW-2161G-00-00 Bracket 6 |
5PW-2161G-00-00 |
US $19.48 |
||
|
48
|
48
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.56 |
||
|
49
|
49
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
49
|
49
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
50
|
50
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
51
|
51
5JJ-82131-00-00 Band, Battery |
5JJ-82131-00-00 |
from US $6.38 |
||
|
52
|
52
3TB-24877-A0-00 Label, Caution |
3TB-24877-A0-00 |
from US $1.84 |
||
|
53
|
53
3TB-24877-B0-00 Label, Caution |
3TB-24877-B0-00 |
US $2.13 |
||
| replacement | |||||
|
53
|
53
3TB-24877-B1-00 Label, Caution |
3TB-24877-B1-00 |
US $1.47 |
||
|
54
|
54
3JJ-28446-A1-00 Label, Caution |
3JJ-28446-A1-00 |
from US $4.39 |
||
|
55
|
55
3JJ-28446-B1-00 Label, Caution |
3JJ-28446-B1-00 |
US $3.52 |
||
|
60
|
60
5SL-28100-00-00 Tool Kit |
5SL-28100-00-00 |
from US $86.35 |
||
|
61
|
61
5EB-14733-00-00
Mat 1
|
5EB-14733-00-00 |
— | ||
