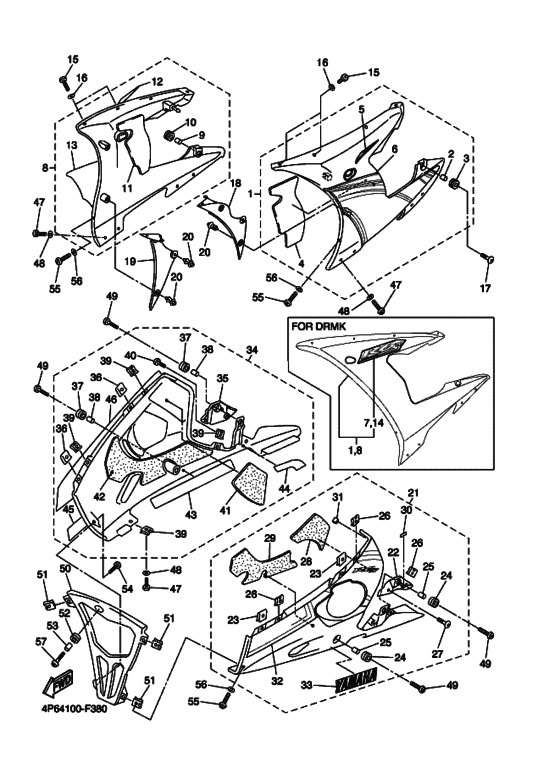

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2007
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4P66
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6S YZFR6SW
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-Y283U-M0-P1 Panel Assembly 1UR FOR DPBMC |
5SL-Y283U-M0-P1 |
from US $390.51 |
||
|
2
|
2
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
3
|
3
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
4
|
4
5SL-2836T-00-00 Damper, Locating 1 |
5SL-2836T-00-00 |
from US $6.01 |
||
|
5
|
5
5AH-283B3-00-00 Graphic 1919; FOR DPBMC |
5AH-283B3-00-00 |
US $23.17 |
||
|
6
|
6
4P6-28391-00-00 Graphic 1FOR DPBMC |
4P6-28391-00-00 |
US $134.96 |
||
|
8
|
8
5SL-Y283V-M0-P1 Panel Assembly 2UR FOR DPBMC |
5SL-Y283V-M0-P1 |
from US $390.51 |
||
|
9
|
9
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
10
|
10
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
11
|
11
5SL-2836U-00-00 Damper, Locating 2 |
5SL-2836U-00-00 |
from US $7.08 |
||
|
12
|
12
5AH-283B4-00-00 Graphic 2020; FOR DPBMC |
5AH-283B4-00-00 |
US $22.28 |
||
|
13
|
13
4P6-28392-00-00 Graphic 2FOR DPBMC |
4P6-28392-00-00 |
US $134.96 |
||
|
15
|
15
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
16
|
16
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
17
|
17
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
18
|
18
5SL-2836K-00-00 Panel, Inner 1 |
5SL-2836K-00-00 |
from US $15.58 |
||
|
19
|
19
5SL-2836L-00-00 Panel, Inner 2 |
5SL-2836L-00-00 |
from US $12.33 |
||
|
20
|
20
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
21
|
21
5SL-Y2808-B0-P5 Cover Assy, UnderDBNM8 FOR DPBMC |
5SL-Y2808-B0-P5 |
US $476.17 |
||
|
22
|
22
5SL-2843J-00-00 Cover 3 |
5SL-2843J-00-00 |
from US $5.24 |
||
|
23
|
23
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
23
|
23
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
24
|
24
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
25
|
25
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
26
|
26
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
27
|
27
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
28
|
28
5SL-2834E-00-00 Damper 3 |
5SL-2834E-00-00 |
from US $3.12 |
||
|
29
|
29
5SL-2837J-00-00 Damper 5 |
5SL-2837J-00-00 |
from US $8.50 |
||
|
30
|
30
1HX-27415-00-00 Plate, Damper |
1HX-27415-00-00 |
from US $1.34 |
||
|
31
|
31
5SL-21649-00-00 Damper |
5SL-21649-00-00 |
from US $1.34 |
||
|
32
|
32
4P6-283A1-00-00 Graphic, Under Cover 1FOR DPBMC |
4P6-283A1-00-00 |
US $186.44 |
||
|
33
|
33
992-41002-80-00 Emblem, YamahaUR FOR DPBMC |
992-41002-80-00 |
from US $16.20 |
||
|
34
|
34
5SL-Y2809-C0-P5 Cover Assy 2, Under2, UNDER; DBNM8 FOR DPBMC |
5SL-Y2809-C0-P5 |
from US $461.89 |
||
|
35
|
35
5SL-2844J-00-00 Cover 4 |
5SL-2844J-00-00 |
from US $7.08 |
||
|
36
|
36
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
36
|
36
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
37
|
37
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
38
|
38
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
39
|
39
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
40
|
40
90111-05002-00 Bolt, Hex. Socket Button |
90111-05002-00 |
from US $1.70 |
||
|
41
|
41
5SL-2834F-00-00 Damper |
5SL-2834F-00-00 |
from US $3.12 |
||
|
42
|
42
5SL-2837K-00-00 Damper 6 |
5SL-2837K-00-00 |
from US $7.48 |
||
|
43
|
43
5SL-2838G-00-00 Seat 1 |
5SL-2838G-00-00 |
US $12.42 |
||
|
44
|
44
5SL-2848K-00-00 Seat 2 |
5SL-2848K-00-00 |
US $6.44 |
||
|
45
|
45
992-41002-80-00 Emblem, YamahaUR FOR DPBMC |
992-41002-80-00 |
from US $16.20 |
||
|
46
|
46
4P6-283A2-00-00 Graphic, Under Cover 2FOR DPBMC |
4P6-283A2-00-00 |
US $201.56 |
||
|
47
|
47
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
48
|
48
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
49
|
49
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
50
|
50
5SL-2836M-00-00 Panel, Inner 3 |
5SL-2836M-00-00 |
from US $39.51 |
||
|
51
|
51
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
52
|
52
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
53
|
53
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
54
|
54
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
54
|
54
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
55
|
55
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
56
|
56
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
57
|
57
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
