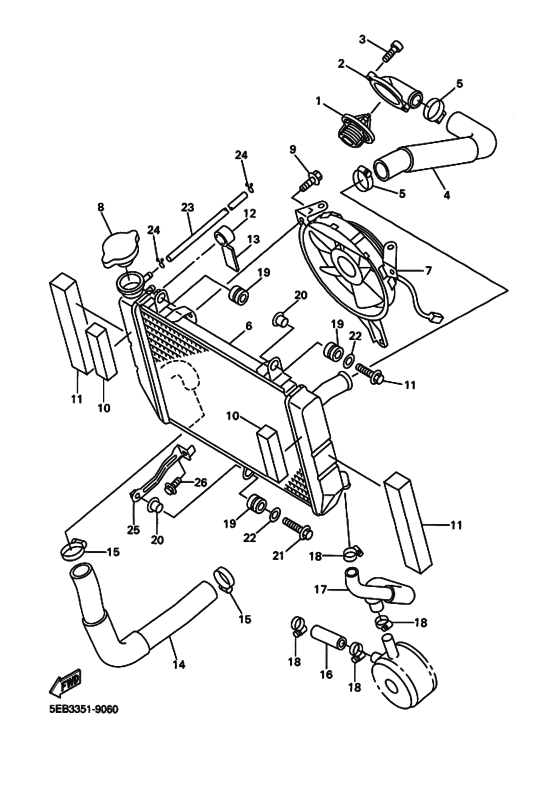

Radiator & hose Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5EB1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-12410-00-00 Thermostat Assy |
5EB-12410-00-00 |
from US $63.68 |
||
|
2
|
2
5EB-12413-00-00 Cover, Thermostat |
5EB-12413-00-00 |
from US $33.15 |
||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
4
|
4
5EB-12578-00-00 Hose 3 |
5EB-12578-00-00 |
from US $34.37 |
||
|
5
|
5
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
6
|
6
5EB-12461-00-00
Radiator Assy
|
5EB-12461-00-00 |
— | ||
|
7
|
7
5EB-12405-00-00 Blower Assy |
5EB-12405-00-00 |
US $390.69 |
||
|
8
|
8
4JH-12462-00-00 Cap, Radiator |
4JH-12462-00-00 |
from US $35.28 |
||
| replacement | |||||
|
8
|
8
5SL-12462-00-00 Cap, Radiator |
5SL-12462-00-00 |
from US $17.20 |
||
|
9
|
9
95811-06010-00 Bolt, Flange |
95811-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
9
|
9
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
|
9
|
9
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
10
|
10
5EB-12659-00-00 Damper, Air Shroud 2 |
5EB-12659-00-00 |
from US $2.55 |
||
|
11
|
11
5EB-12668-00-00 Damper, Air Shroud 3 |
5EB-12668-00-00 |
from US $2.69 |
||
|
12
|
12
5EB-12498-00-00 Protector |
5EB-12498-00-00 |
from US $1.98 |
||
|
13
|
13
3XV-1246A-10-00
Cover 1
|
3XV-1246A-10-00 |
— | ||
|
14
|
14
5EB-12579-00-00 Hose 4 |
5EB-12579-00-00 |
from US $36.57 |
||
|
15
|
15
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
16
|
16
5EB-12588-00-00 Hose 5 |
5EB-12588-00-00 |
US $3.71 |
||
|
17
|
17
5EB-12589-00-00 Hose 6 |
5EB-12589-00-00 |
US $19.83 |
||
|
18
|
18
90450-22052-00 Hose Clamp Assy |
90450-22052-00 |
from US $7.65 |
||
| replacement | |||||
|
18
|
18
90450-22M14-00 Hose Clamp Assy(64X) |
90450-22M14-00 |
from US $7.65 |
||
|
19
|
19
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.56 |
||
|
20
|
20
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
21
|
21
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
21
|
21
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
21
|
21
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
22
|
22
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
22
|
22
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
23
|
23
90445-087K6-00 Hose (L700) |
90445-087K6-00 |
from US $10.48 |
||
|
24
|
24
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
25
|
25
5EB-1244E-00-00 Bracket 1 |
5EB-1244E-00-00 |
from US $10.87 |
||
|
26
|
26
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
