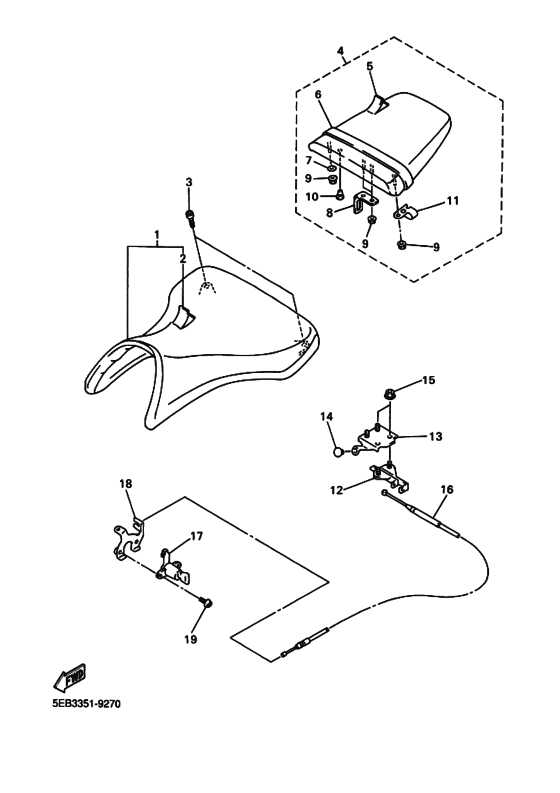

Seat Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5EB1
- Sales region
- Europe (050)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-24710-00-00
Single Seat Assy
|
5EB-24710-00-00 |
— | ||
|
2
|
2
5EB-2470F-00-00 Cover, Seat |
5EB-2470F-00-00 |
from US $73.15 |
||
|
3
|
3
90110-06258-00 Bolt, Hexagon Socket Head |
90110-06258-00 |
from US $1.70 |
||
|
4
|
4
5EB-24750-00-00 Tandem Seat Assy |
5EB-24750-00-00 |
from US $209.40 |
||
| replacement | |||||
|
4
|
4
5EB-24750-01-00 Tandem Seat Assy |
5EB-24750-01-00 |
from US $209.40 |
||
|
5
|
5
5EB-24751-00-00 Cover, Tandem Seat |
5EB-24751-00-00 |
from US $65.18 |
||
|
6
|
6
5EB-24734-00-00 Band, Seat |
5EB-24734-00-00 |
US $40.30 |
||
|
7
|
7
90201-06008-00 Washer, Plate |
90201-06008-00 |
US $2.27 |
||
| replacement | |||||
|
7
|
7
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
8
|
8
4HM-24728-00-00 Bracket, Seat |
4HM-24728-00-00 |
from US $8.64 |
||
|
9
|
9
90179-06635-00 Nut, Flange |
90179-06635-00 |
from US $1.13 |
||
| replacement | |||||
|
9
|
9
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
10
|
10
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
10
|
10
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
11
|
11
5EB-24728-00-00
Bracket, Seat
|
5EB-24728-00-00 |
— | ||
|
12
|
12
4BP-24780-00-00 Seat Lock Assy |
4BP-24780-00-00 |
from US $55.40 |
||
|
13
|
13
4XV-24792-00-00 Plate |
4XV-24792-00-00 |
from US $10.48 |
||
|
14
|
14
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
15
|
15
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
16
|
16
5EB-2478E-00-00 Cable, Seat Lock |
5EB-2478E-00-00 |
US $15.71 |
||
|
17
|
17
2TV-W2470-00-00 Rotor Set |
2TV-W2470-00-00 |
from US $64.71 |
||
| replacement | |||||
|
17
|
17
3CK-W2470-00-00 Rotor Set |
3CK-W2470-00-00 |
from US $70.60 |
||
|
18
|
18
4XV-2117K-00-00 Stay, Lock |
4XV-2117K-00-00 |
from US $12.75 |
||
|
19
|
19
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.70 |
||
