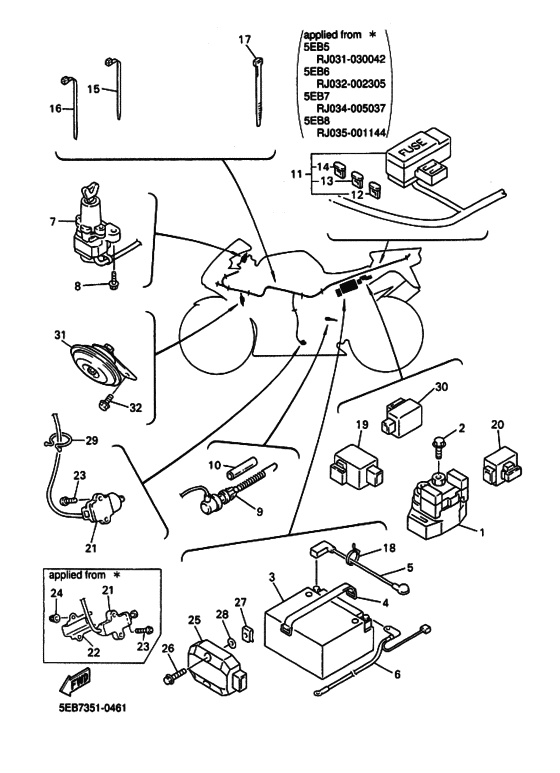

Electrical 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB5
- Sales region
- Europe (060)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- B
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YR-81940-00-00 Starter Relay Assy (Rc19-018) |
4YR-81940-00-00 |
from US $84.28 |
||
| replacement | |||||
|
1
|
1
4YR-81940-02-00 Starter Relay Assy (Rc19-018) |
4YR-81940-02-00 |
from US $84.28 |
||
|
2
|
2
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
3
|
3
4TX-82100-01-00
Gt12B4 Gs Battery -
|
4TX-82100-01-00 |
— | ||
| replacements | |||||
|
3
|
3
GT1-2B400-00-00
Battery
|
GT1-2B400-00-00 |
— | ||
|
3
|
3
YT1-2BBS0-00-00
Bat Yt12B-Bs (Pt12B-4) Yu
|
YT1-2BBS0-00-00 |
— | ||
|
4
|
4
3L8-82131-01-00
Band, Battery
|
3L8-82131-01-00 |
— | ||
| replacement | |||||
|
4
|
4
22F-82131-00-00 Band, Battery |
22F-82131-00-00 |
from US $15.44 |
||
|
5
|
5
4XV-82115-00-00 Wire, Plus Lead |
4XV-82115-00-00 |
US $30.53 |
||
|
6
|
6
5EB-82116-00-00 Wire, Minus Lead |
5EB-82116-00-00 |
from US $33.05 |
||
|
7
|
7
5EB-82501-00-00 Main Switch Steering Lock |
5EB-82501-00-00 |
US $163.50 |
||
| replacement | |||||
|
7
|
7
5EB-82501-01-00 Main Switch Steering Lock |
5EB-82501-01-00 |
US $163.50 |
||
|
8
|
8
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
8
|
8
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
9
|
9
3XV-82530-01-00
Stop Switch Assy
|
3XV-82530-01-00 |
— | ||
|
10
|
10
90446-08001-00 Hose |
90446-08001-00 |
from US $1.98 |
||
|
11
|
11
5EB-82590-30-00
Wire Harness Assy
|
5EB-82590-30-00 |
— | ||
|
12
|
12
36Y-82151-00-00 Fuse (15A-Blue)15A-BL |
36Y-82151-00-00 |
from US $2.98 |
||
|
13
|
13
2KW-82151-00-00 Fuse (7.5A-Bl)7.5A-BL |
2KW-82151-00-00 |
from US $1.56 |
||
|
14
|
14
2GV-82151-00-00 Fuse (20A-Bl)20A-BL |
2GV-82151-00-00 |
from US $1.34 |
||
|
15
|
15
90464-12045-00 Band, Switch Cord |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
16
|
16
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
16
|
16
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
17
|
17
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
18
|
18
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
19
|
19
5EB-81950-20-00 Relay Assy (5Eb-00) |
5EB-81950-20-00 |
from US $114.53 |
||
|
20
|
20
5EB-81950-10-00 Relay Assy (5Eb-10) |
5EB-81950-10-00 |
from US $36.61 |
||
|
21
|
21
3LD-82566-70-00 Switch, Side Stand |
3LD-82566-70-00 |
from US $47.72 |
||
| replacement | |||||
|
21
|
21
3LD-82566-71-00 Switch, Side Stand |
3LD-82566-71-00 |
US $56.83 |
||
|
21
|
21
5EB-82566-00-00 Switch, Side StandAPPLIED FROM * |
5EB-82566-00-00 |
from US $85.63 |
||
| replacement | |||||
|
21
|
21
5EB-82566-01-00 Switch, Side StandAPPLIED FROM * |
5EB-82566-01-00 |
from US $85.63 |
||
|
22
|
22
5JJ-82388-00-00 PlateAPPLIED FROM * |
5JJ-82388-00-00 |
from US $7.37 |
||
|
23
|
23
90157-05001-00 Screw, Pan Head |
90157-05001-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
23
|
23
92017-05030-00 Bolt, Button HeadAPPLIED FROM * |
92017-05030-00 |
from US $2.13 |
||
|
24
|
24
956-07052-00-00 Nut, U FlangeAPPLIED FROM * |
956-07052-00-00 |
from US $1.42 |
||
|
25
|
25
4JH-81960-01-00 Rectifier-Regulator Assy |
4JH-81960-01-00 |
from US $210 |
||
|
26
|
26
95827-06025-00 Bolt, Flange |
95827-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
26
|
26
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
26
|
26
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
27
|
27
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
27
|
27
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
28
|
28
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
29
|
29
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
30
|
30
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
30
|
30
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
30
|
30
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
|
31
|
31
4TH-83371-00-00 Horn |
4TH-83371-00-00 |
from US $50.98 |
||
| replacement | |||||
|
31
|
31
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
32
|
32
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
32
|
32
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
