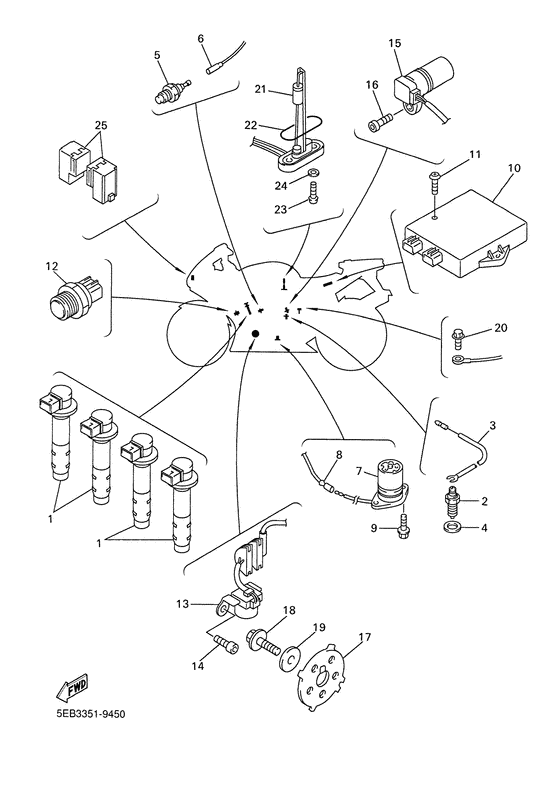

Electrical 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB6
- Sales region
- Finland (030)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EB-82310-00-00 Ignition Coil Assy |
5EB-82310-00-00 |
from US $196.19 |
||
|
02
|
02
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
03
|
03
5EB-82541-00-00
Wire, Lead
|
5EB-82541-00-00 |
— | ||
|
04
|
04
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
05
|
05
11H-83591-00-00 Thermo Unit |
11H-83591-00-00 |
from US $90.36 |
||
|
06
|
06
5EB-82541-20-00 Wire, Lead |
5EB-82541-20-00 |
US $13.99 |
||
| replacement | |||||
|
06
|
06
5EB-82541-21-00
Wire, Lead
|
5EB-82541-21-00 |
— | ||
|
07
|
07
5EB-85720-00-00 Oil Level Gauge Assy |
5EB-85720-00-00 |
from US $153.46 |
||
|
08
|
08
5EB-82509-00-00 Wire, Sub Lead |
5EB-82509-00-00 |
US $10.26 |
||
|
09
|
09
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.34 |
||
|
10
|
10
5EB-85540-10-00
C.d.i. Unit Assy
|
5EB-85540-10-00 |
— | ||
|
11
|
11
97707-60025-00 Screw, Tapping |
97707-60025-00 |
from US $1.56 |
||
|
12
|
12
5EB-82560-00-00 Thermo Switch Assy |
5EB-82560-00-00 |
from US $32.74 |
||
|
13
|
13
5EB-81670-00-00
Pick-Up Assy
|
5EB-81670-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5EB-81670-01-00
Pick-Up Assy
|
5EB-81670-01-00 |
— | ||
|
14
|
14
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
15
|
15
5EB-83755-00-00 Sensor, Speed |
5EB-83755-00-00 |
from US $151.98 |
||
| replacements | |||||
|
15
|
15
5EB-83755-01-00 Sensor, Speed |
5EB-83755-01-00 |
from US $151.98 |
||
|
15
|
15
5EB-83755-02-00 |
5EB-83755-02-00 |
US $168.16 |
||
|
16
|
16
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
17
|
17
5EB-81673-00-00 Rotor |
5EB-81673-00-00 |
US $32.63 |
||
|
18
|
18
90105-08386-00 Bolt, Flange |
90105-08386-00 |
from US $3.40 |
||
| replacements | |||||
|
18
|
18
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
18
|
18
90105-08113-00 Bolt, Flange |
90105-08113-00 |
from US $3.40 |
||
|
19
|
19
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
20
|
20
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
21
|
21
1UF-85752-02-00
Sender Unit Assy, Fuel Meter
|
1UF-85752-02-00 |
— | ||
| replacements | |||||
|
21
|
21
1UF-85752-10-00
Sender Unit Assy, Fuel Meter
|
1UF-85752-10-00 |
— | ||
|
21
|
21
1UF-85752-03-00
Sender Unit Assy, Fuel Meter
|
1UF-85752-03-00 |
— | ||
|
22
|
22
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.32 |
||
|
23
|
23
90149-06008-00 Screw |
90149-06008-00 |
from US $1.70 |
||
|
24
|
24
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
24
|
24
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
25
|
25
4XV-81950-00-00 Relay Assy (4Xv-00) |
4XV-81950-00-00 |
from US $39.93 |
||
