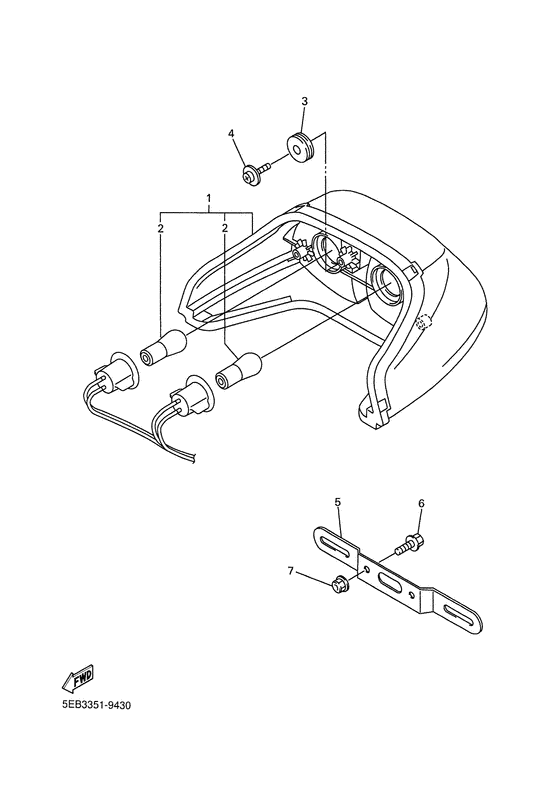

Taillight Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB6
- Sales region
- Norway (040)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EB-84710-00-00
Taillight Unit Assy
|
5EB-84710-00-00 |
— | ||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
03
|
03
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
04
|
04
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
04
|
04
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
|
05
|
05
3YF-84751-00-00 Bracket, License |
3YF-84751-00-00 |
from US $11.19 |
||
| replacement | |||||
|
05
|
05
3YF-84751-01-00 Bracket, License |
3YF-84751-01-00 |
from US $11.19 |
||
|
06
|
06
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
06
|
06
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
07
|
07
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
08
|
08
3VD-12465-00-00 Damper, Radiator |
3VD-12465-00-00 |
from US $2.13 |
||
