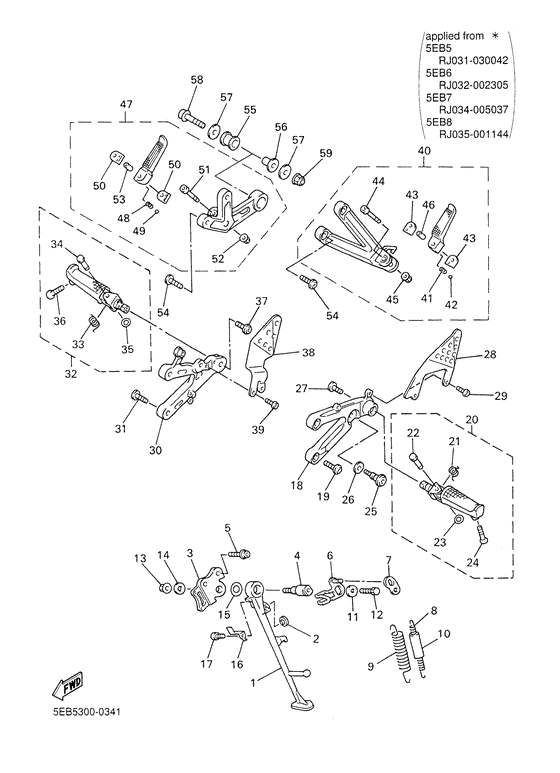

Stand & footrest Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5EB6
- Sales region
- Germany (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5EB-27311-00-00 Stand, Side |
5EB-27311-00-00 |
from US $95.23 |
||
|
02
|
02
128-27114-00-00 Stopper, Main Stand |
128-27114-00-00 |
from US $4.68 |
||
|
03
|
03
4NX-27321-00-00 Bracket, Side Stand |
4NX-27321-00-00 |
US $60.39 |
||
| replacement | |||||
|
03
|
03
5JJ-27321-00-00 Bracket, Side Stand |
5JJ-27321-00-00 |
from US $65.07 |
||
|
03
|
03
5JJ-27321-00-00 Bracket, Side StandApplied from * |
5JJ-27321-00-00 |
from US $65.07 |
||
|
04
|
04
4NX-27351-00-00 Guide, Side Stand |
4NX-27351-00-00 |
from US $30.46 |
||
|
05
|
05
90109-105G7-00 Bolt, Hexagon Socket |
90109-105G7-00 |
from US $4.96 |
||
| replacement | |||||
|
05
|
05
901-10100-12-00 Bolt, Hexagon Socket Head |
901-10100-12-00 |
from US $4.96 |
||
|
06
|
06
5GV-27352-00-00
Hook, Side Stand
|
5GV-27352-00-00 |
— | ||
|
07
|
07
36Y-27315-00-00 Link, Side Stand |
36Y-27315-00-00 |
US $6.14 |
||
|
08
|
08
90506-18224-00 Spring, Tension |
90506-18224-00 |
from US $5.10 |
||
|
09
|
09
90506-26225-00 Spring, Tension |
90506-26225-00 |
from US $6.52 |
||
|
10
|
10
1TX-27351-00-00 Guide, Side Stand |
1TX-27351-00-00 |
from US $4.96 |
||
|
11
|
11
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
12
|
12
90101-08662-00 Bolt |
90101-08662-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
13
|
13
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
14
|
14
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
15
|
15
90201-146F9-00 Washer, Plate |
90201-146F9-00 |
from US $1.84 |
||
|
16
|
16
4NX-27315-00-00 Link, Side Stand |
4NX-27315-00-00 |
from US $11.05 |
||
|
17
|
17
90110-06226-00 Bolt |
90110-06226-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
|
18
|
18
5EB-27442-00-00 Bracket 2 |
5EB-27442-00-00 |
from US $81.67 |
||
|
19
|
19
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
20
|
20
5EB-27410-00-00 Front Footrest Assy |
5EB-27410-00-00 |
from US $67.12 |
||
| replacement | |||||
|
20
|
20
5MT-27410-01-00 Front Footrest Assy (Left) |
5MT-27410-01-00 |
from US $71.42 |
||
|
21
|
21
90508-183B9-00 Spring, Torsion |
90508-183B9-00 |
from US $2.55 |
||
|
22
|
22
90243-08029-00 Pin |
90243-08029-00 |
from US $2.13 |
||
|
23
|
23
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
24
|
24
90109-083E2-00 Bolt |
90109-083E2-00 |
from US $3.40 |
||
| replacement | |||||
|
24
|
24
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
25
|
25
4BP-27434-01-00 Bolt |
4BP-27434-01-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
4BP-27434-11-00 Bolt |
4BP-27434-11-00 |
from US $1.56 |
||
|
26
|
26
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.66 |
||
| replacement | |||||
|
26
|
26
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
27
|
27
90109-103A9-00 Bolt,hex. Socket But |
90109-103A9-00 |
from US $8.22 |
||
| replacement | |||||
|
27
|
27
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $8.22 |
||
|
28
|
28
5EB-27445-01-00
Plate 1
|
5EB-27445-01-00 |
— | ||
|
29
|
29
90111-06003-00 Bolt, Button Head |
90111-06003-00 |
from US $1.07 |
||
| replacement | |||||
|
29
|
29
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.07 |
||
|
30
|
30
5EB-27443-00-00 Bracket 3 |
5EB-27443-00-00 |
from US $103.07 |
||
|
31
|
31
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
32
|
32
5EB-27420-00-00 Front Footrest Assy |
5EB-27420-00-00 |
from US $80.68 |
||
| replacement | |||||
|
32
|
32
5MT-27420-01-00 Front Footrest Assy (Right) |
5MT-27420-01-00 |
from US $71.42 |
||
|
33
|
33
90508-184B0-00 Spring, Torsion |
90508-184B0-00 |
from US $2.55 |
||
|
34
|
34
90243-08029-00 Pin |
90243-08029-00 |
from US $2.13 |
||
|
35
|
35
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
36
|
36
90109-083E2-00 Bolt |
90109-083E2-00 |
from US $3.40 |
||
| replacement | |||||
|
36
|
36
90109-08177-00 Bolt |
90109-08177-00 |
from US $3.40 |
||
|
37
|
37
90109-103A9-00 Bolt,hex. Socket But |
90109-103A9-00 |
from US $8.22 |
||
| replacement | |||||
|
37
|
37
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $8.22 |
||
|
38
|
38
5EB-27446-01-00 Plate 2 |
5EB-27446-01-00 |
US $92.97 |
||
|
39
|
39
90111-06003-00 Bolt, Button Head |
90111-06003-00 |
from US $1.07 |
||
| replacement | |||||
|
39
|
39
92014-06012-00 Bolt, Button Head |
92014-06012-00 |
from US $1.07 |
||
|
40
|
40
5EB-27430-00-00 Rear Footrest Assy 1 |
5EB-27430-00-00 |
from US $104.87 |
||
|
41
|
41
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
42
|
42
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
42
|
42
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
43
|
43
1HX-27437-00-00 Washer, Special |
1HX-27437-00-00 |
from US $7.93 |
||
|
44
|
44
91314-06045-00 Bolt, Hexagon Socket Head |
91314-06045-00 |
from US $1.42 |
||
|
45
|
45
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
46
|
46
90387-064H8-00 Collar |
90387-064H8-00 |
from US $1.35 |
||
|
47
|
47
5EB-27440-00-00
Rear Footrest Assy 2
|
5EB-27440-00-00 |
— | ||
|
48
|
48
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
49
|
49
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
49
|
49
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
50
|
50
1HX-27437-00-00 Washer, Special |
1HX-27437-00-00 |
from US $7.93 |
||
|
51
|
51
91314-06045-00 Bolt, Hexagon Socket Head |
91314-06045-00 |
from US $1.42 |
||
|
52
|
52
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
53
|
53
90387-064H8-00 Collar |
90387-064H8-00 |
from US $1.35 |
||
|
54
|
54
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
55
|
55
36Y-27424-00-00 Damper, Footrest 2 |
36Y-27424-00-00 |
from US $5.67 |
||
| replacement | |||||
|
55
|
55
36Y-27424-01-00 Damper, Footrest 2 |
36Y-27424-01-00 |
from US $5.67 |
||
|
56
|
56
90387-10636-00 Collar |
90387-10636-00 |
from US $7.79 |
||
|
57
|
57
90201-10669-00 Washer, Plate |
90201-10669-00 |
from US $1.28 |
||
|
58
|
58
901-05102-71-00 Bolt, Flange |
901-05102-71-00 |
from US $8.50 |
||
|
59
|
59
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
