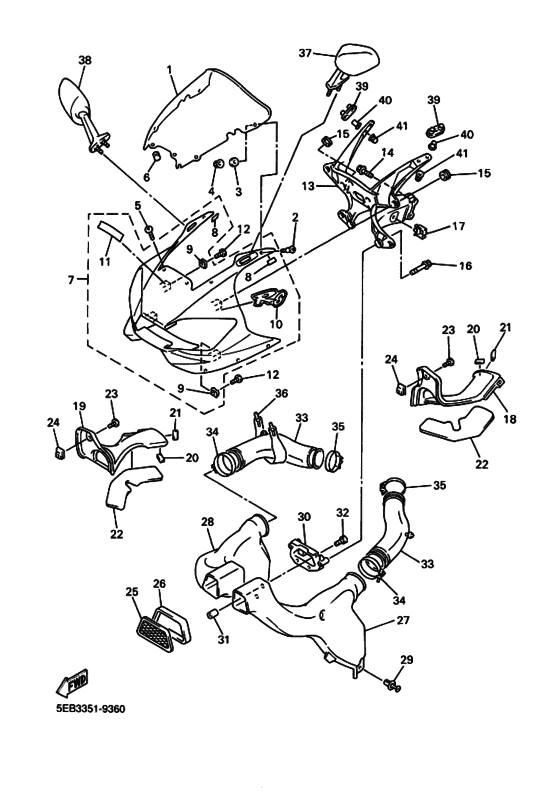

Cowling 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5GV3
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6L
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-28381-10-00 Windshield |
5EB-28381-10-00 |
from US $70.70 |
||
| replacement | |||||
|
1
|
1
5EB-28381-11-00 Windshield |
5EB-28381-11-00 |
from US $70.70 |
||
|
2
|
2
90149-05273-00 Screw |
90149-05273-00 |
from US $3.26 |
||
|
3
|
3
4FM-28215-00-00 Washer, Special |
4FM-28215-00-00 |
from US $3.12 |
||
|
4
|
4
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
5
|
5
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.66 |
||
|
6
|
6
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
7
|
7
5EB-Y283G-10-P0 Body, Front Upper 1UR DPBMC |
5EB-Y283G-10-P0 |
US $937.26 |
||
|
8
|
8
3TU-2178A-00-00 Label |
3TU-2178A-00-00 |
from US $2.69 |
||
|
9
|
9
90183-05074-00 Nut, Spring(3Yx) |
90183-05074-00 |
from US $1.98 |
||
|
10
|
10
5EB-28315-10-00
Emblem
UR FOR DPBMC |
5EB-28315-10-00 |
— | ||
|
11
|
11
992-31000-80-00
Emblem, Yamaha
UR FOR DPBMC |
992-31000-80-00 |
— | ||
| replacement | |||||
|
11
|
11
99241-00080-00 Emblem, YamahaUR FOR DPBMC |
99241-00080-00 |
from US $8.08 |
||
|
12
|
12
90154-05005-00 Screw, Binding |
90154-05005-00 |
from US $1.70 |
||
|
13
|
13
5EB-28356-01-00 Stay 1 |
5EB-28356-01-00 |
from US $314.93 |
||
|
14
|
14
95824-08025-00 Bolt, Flange |
95824-08025-00 |
from US $2.69 |
||
| replacement | |||||
|
14
|
14
95814-08025-00 Bolt, Flange |
95814-08025-00 |
from US $2.69 |
||
|
15
|
15
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
16
|
16
95024-06016-00 Bolt, Flange |
95024-06016-00 |
from US $1.56 |
||
|
17
|
17
90464-16025-00 Clamp |
90464-16025-00 |
from US $1.42 |
||
|
18
|
18
5EB-2837L-00-00 Panel, Console 1 |
5EB-2837L-00-00 |
from US $104.38 |
||
|
19
|
19
5EB-2837M-00-00 Panel, Console 2 |
5EB-2837M-00-00 |
from US $104.38 |
||
|
20
|
20
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
21
|
21
27V-24184-00-00 Damper |
27V-24184-00-00 |
from US $2.72 |
||
| replacement | |||||
|
21
|
21
34M-2139X-00-00 Damper |
34M-2139X-00-00 |
from US $4.25 |
||
|
22
|
22
5EB-2837J-00-00 Damper 5 |
5EB-2837J-00-00 |
from US $5.85 |
||
|
23
|
23
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
24
|
24
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
24
|
24
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
25
|
25
5EB-2837N-00-00 Grill, Air Intake 1 |
5EB-2837N-00-00 |
US $31 |
||
|
26
|
26
5EB-28371-00-00 Damper |
5EB-28371-00-00 |
from US $12.92 |
||
|
27
|
27
5EB-2838R-00-00 Duct 2 |
5EB-2838R-00-00 |
US $79.42 |
||
|
28
|
28
5EB-2838T-00-00 Duct 3 |
5EB-2838T-00-00 |
from US $64.25 |
||
|
29
|
29
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
30
|
30
5EB-28342-01-00 Joint |
5EB-28342-01-00 |
US $54.88 |
||
|
31
|
31
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
32
|
32
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.34 |
||
|
33
|
33
5EB-1446F-00-00 Joint, Surge Tank 1 |
5EB-1446F-00-00 |
from US $26.64 |
||
|
34
|
34
4TV-13575-00-00
Hose Clamp Assy
|
4TV-13575-00-00 |
— | ||
| replacement | |||||
|
34
|
34
904-50640-04-00 Hose Clamp Assy |
904-50640-04-00 |
from US $4.64 |
||
|
35
|
35
90460-59211-00 Hose Clamp Assy |
90460-59211-00 |
from US $8.22 |
||
| replacements | |||||
|
35
|
35
90450-59009-00 Hose Clamp Assy |
90450-59009-00 |
from US $8.22 |
||
|
35
|
35
90450-62006-00 Hose Clamp Assy |
90450-62006-00 |
from US $8.22 |
||
|
36
|
36
5EB-2834V-00-00 Protector 1 |
5EB-2834V-00-00 |
US $11.70 |
||
|
37
|
37
4YR-26280-01-00 Rear View Mirror Assy(Left)Rear view mirror assy (left) |
4YR-26280-01-00 |
from US $106.94 |
||
|
38
|
38
4YR-26290-01-00 Rear View Mirror Assy(Right) |
4YR-26290-01-00 |
from US $106.94 |
||
|
39
|
39
5EB-26298-01-00 Plate, Mirror Fitting 1 |
5EB-26298-01-00 |
from US $5.81 |
||
|
40
|
40
90387-0602X-00 Collar |
90387-0602X-00 |
from US $5.81 |
||
|
41
|
41
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
