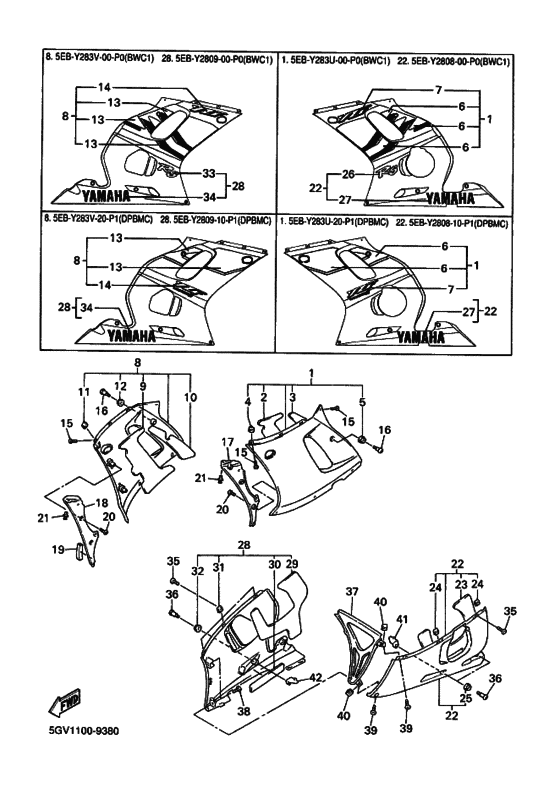

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5GV3
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6L
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-Y283U-20-P1 Panel Assembly 1UR DPBMC |
5EB-Y283U-20-P1 |
US $628.09 |
||
|
2
|
2
5EB-28415-00-00 Damper 1 |
5EB-28415-00-00 |
from US $14.25 |
||
|
3
|
3
5EB-28416-00-00 Damper 2 |
5EB-28416-00-00 |
from US $5.87 |
||
|
4
|
4
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
4
|
4
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
5
|
5
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
5
|
5
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
6
|
6
5EB-28304-00-00 Graphicset, Lower Cover 3UR FOR DPBMC |
5EB-28304-00-00 |
from US $106.07 |
||
|
7
|
7
5EB-28338-00-00
Emblem
UR FOR DPBMC |
5EB-28338-00-00 |
— | ||
|
8
|
8
5EB-Y283V-20-P1 Panel Assembly 2UR DPBMC |
5EB-Y283V-20-P1 |
US $610.49 |
||
|
9
|
9
5EB-28415-10-00 Damper 1 |
5EB-28415-10-00 |
from US $14.25 |
||
|
10
|
10
5EB-28416-10-00 Damper 2 |
5EB-28416-10-00 |
from US $5.87 |
||
|
11
|
11
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
11
|
11
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
12
|
12
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
12
|
12
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
13
|
13
5EB-28305-00-00 Under Cover Graphic Set, 4UR FOR DPBMC |
5EB-28305-00-00 |
US $91.94 |
||
|
14
|
14
5EB-28338-00-00
Emblem
UR FOR DPBMC |
5EB-28338-00-00 |
— | ||
|
15
|
15
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
16
|
16
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
17
|
17
5EB-2836K-00-00 Panel, Inner 1 |
5EB-2836K-00-00 |
from US $61.47 |
||
|
18
|
18
5EB-2836L-00-00 Panel, Inner 2 |
5EB-2836L-00-00 |
from US $66.10 |
||
|
19
|
19
8U9-77268-00-00 Lining, Shroud 8 |
8U9-77268-00-00 |
from US $0.76 |
||
|
20
|
20
97704-40012-00 Screw, Tapping |
97704-40012-00 |
from US $1.56 |
||
|
21
|
21
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
22
|
22
5EB-Y2808-10-P1
Cover Assembly, Under
UR DPBMC |
5EB-Y2808-10-P1 |
— | ||
| replacement | |||||
|
22
|
22
5EB-W2808-10-P1
Cover Assy, Under
UR DPBMC |
5EB-W2808-10-P1 |
— | ||
|
23
|
23
5EB-2834E-00-00 Damper |
5EB-2834E-00-00 |
from US $12.89 |
||
|
24
|
24
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
24
|
24
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
25
|
25
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
25
|
25
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
27
|
27
4XV-2153E-00-00
Emblem, Yamaha
UR FOR DPBMC |
4XV-2153E-00-00 |
— | ||
|
28
|
28
5EB-Y2809-10-P1 Cover Assembly 2, Under2, UNDER; UR DPBMC |
5EB-Y2809-10-P1 |
US $495.27 |
||
| replacement | |||||
|
28
|
28
5EB-W2809-10-P1 Cover Assy 2, Under2, UNDER; UR DPBMC |
5EB-W2809-10-P1 |
US $481.36 |
||
|
29
|
29
5EB-2834F-00-00 Damper |
5EB-2834F-00-00 |
from US $14.10 |
||
|
30
|
30
5EB-2838G-00-00 Seat 1 |
5EB-2838G-00-00 |
US $5.65 |
||
|
31
|
31
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
31
|
31
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
32
|
32
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
32
|
32
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
34
|
34
4XV-2153E-00-00
Emblem, Yamaha
UR FOR DPBMC |
4XV-2153E-00-00 |
— | ||
|
35
|
35
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
36
|
36
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
37
|
37
5EB-2836M-00-00 Panel, Inner 3 |
5EB-2836M-00-00 |
from US $70.94 |
||
|
38
|
38
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
38
|
38
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
39
|
39
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
40
|
40
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
40
|
40
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
41
|
41
5EB-2836A-00-00 Bracket 1 |
5EB-2836A-00-00 |
from US $4.47 |
||
|
42
|
42
5EB-2836E-00-00 Bracket 2 |
5EB-2836E-00-00 |
from US $5.24 |
||
