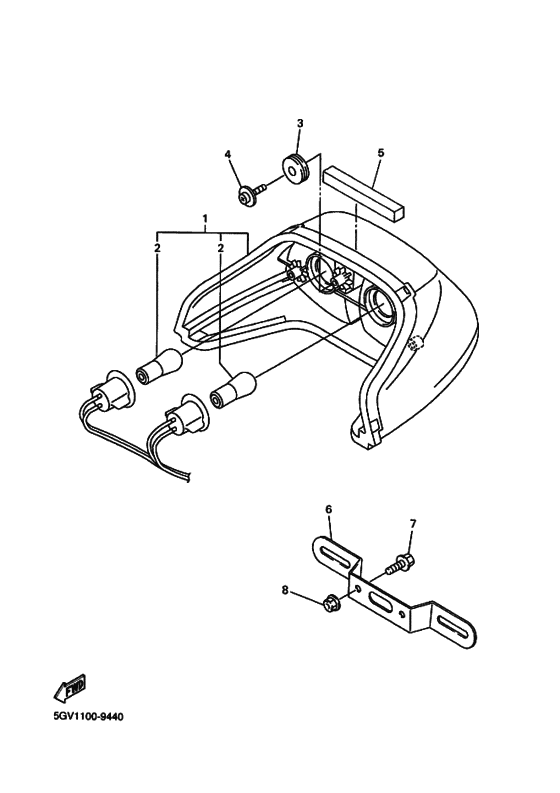

Taillight Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5GV3
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6L
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-84710-10-00 Taillight Unit Assy |
5EB-84710-10-00 |
US $220.52 |
||
|
2
|
2
1A2-84714-41-00
Bulb
12V-21/5W |
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W)12V-21/5W |
1A2-84714-50-00 |
from US $4.96 |
||
|
3
|
3
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
4
|
4
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
4
|
4
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
|
5
|
5
3VD-12465-00-00 Damper, Radiator |
3VD-12465-00-00 |
from US $2.13 |
||
|
6
|
6
5EB-84751-00-00 Bracket, License |
5EB-84751-00-00 |
US $31.97 |
||
|
7
|
7
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
7
|
7
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
8
|
8
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
