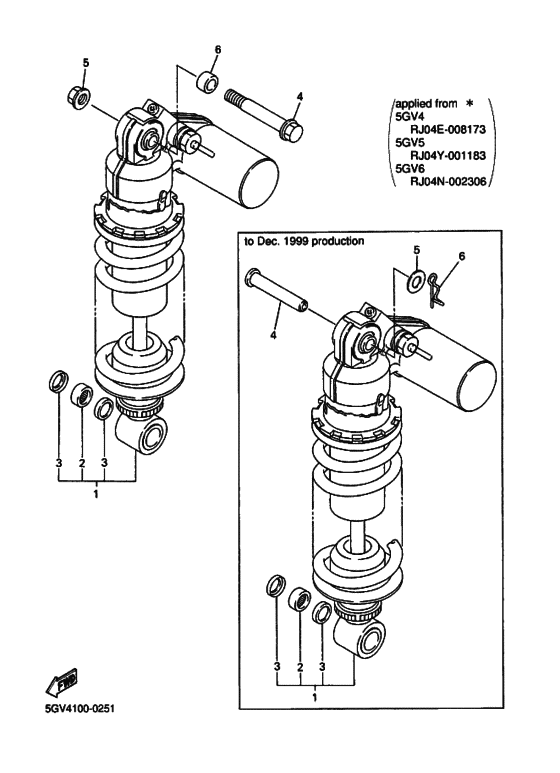

Rear suspension Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5GV6
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6M
- Engine Capacity
- 600
- Color Variant
- B
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-22210-20-00 Shock Absorber Assy, Rear |
5EB-22210-20-00 |
US $1,220.02 |
||
|
2
|
2
933-15317-59-00 Bearing |
933-15317-59-00 |
from US $18.99 |
||
|
3
|
3
931-09170-71-00 Oil Seal |
931-09170-71-00 |
from US $2.98 |
||
|
4
|
4
90240-10143-00
Pin, Clevis
|
90240-10143-00 |
— | ||
|
4
|
4
90105-10376-00 Bolt, Flangeapplied from * |
90105-10376-00 |
from US $6.23 |
||
|
5
|
5
90201-08759-00 Washer, Plate |
90201-08759-00 |
from US $1.70 |
||
|
5
|
5
956-07102-00-00 Nut, U Flangeapplied from * |
956-07102-00-00 |
from US $5.67 |
||
|
6
|
6
90468-20196-00 Clip |
90468-20196-00 |
from US $1.04 |
||
|
6
|
6
90387-1013U-00 Collarapplied from * |
90387-1013U-00 |
from US $13.88 |
