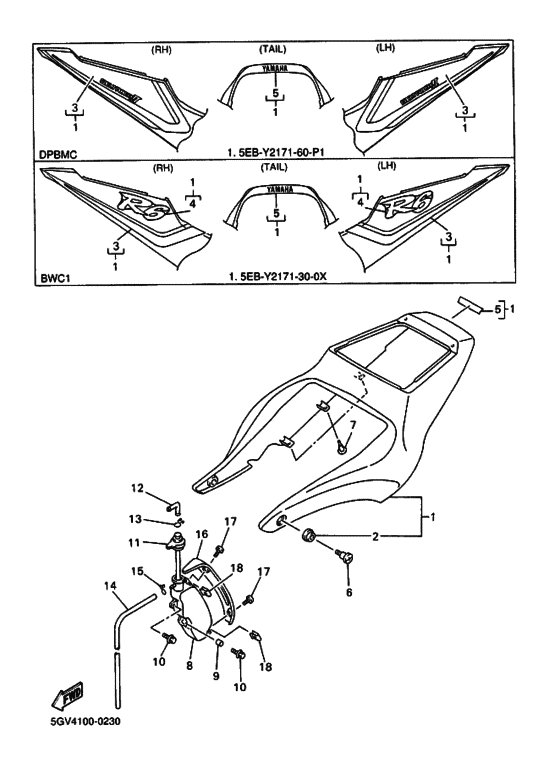

Side cover Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2000
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5GV6
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6M
- Engine Capacity
- 600
- Color Variant
- B
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-Y2171-30-0X Cover, Side 1UR BWC1/MBL2 FOR BWC1 |
5EB-Y2171-30-0X |
US $623 |
||
| replacement | |||||
|
1
|
1
5EB-Y2171-61-0X Cover, Side 1UR BWC1/MBL2 FOR BWC1 |
5EB-Y2171-61-0X |
US $597.10 |
||
|
2
|
2
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
2
|
2
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
3
|
3
5EB-2173L-A0-00
Graphic Set 1
UR FOR BWC1 |
5EB-2173L-A0-00 |
— | ||
|
4
|
4
5EB-21782-00-00 Emblem 2FOR BWC1 |
5EB-21782-00-00 |
US $36.49 |
||
|
5
|
5
99244-00080-00 Emblem, YamahaUR FOR BWC1 |
99244-00080-00 |
from US $8.64 |
||
|
6
|
6
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $1.84 |
||
|
7
|
7
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
8
|
8
5EB-21871-01-00 Tank, Recovery |
5EB-21871-01-00 |
from US $57.73 |
||
|
9
|
9
90387-066K1-00 Collar |
90387-066K1-00 |
from US $2.55 |
||
| replacements | |||||
|
9
|
9
903-87067-04-00
Collar (796)
|
903-87067-04-00 |
— | ||
|
9
|
9
90387-068G2-00 Collar |
90387-068G2-00 |
US $1.56 |
||
|
10
|
10
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
11
|
11
5EB-21875-00-00 Cap |
5EB-21875-00-00 |
from US $9.21 |
||
|
12
|
12
26H-21828-00-00 Elbow |
26H-21828-00-00 |
from US $3.98 |
||
|
13
|
13
90467-11019-00 Clip |
90467-11019-00 |
US $1.70 |
||
| replacements | |||||
|
13
|
13
90467-11M08-00 Clip |
90467-11M08-00 |
from US $1.70 |
||
|
13
|
13
90467-11044-00 Clip (7K7) |
90467-11044-00 |
from US $1.28 |
||
|
14
|
14
90445-08605-00 Hose (L1500) |
90445-08605-00 |
from US $10.91 |
||
| replacement | |||||
|
14
|
14
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
15
|
15
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
16
|
16
5EB-2172W-00-00 Cover |
5EB-2172W-00-00 |
US $29.43 |
||
|
17
|
17
90150-05039-00 Screw, Round Head |
90150-05039-00 |
from US $2.55 |
||
|
18
|
18
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
