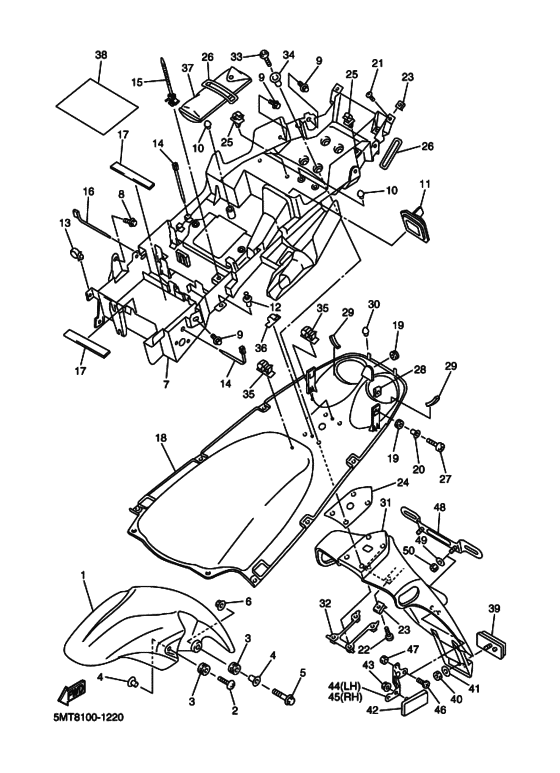

Fender Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5MTA
- Sales region
- Europe (010)
- Базовая модель
- YZF-R6 YZF-R6SN
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-21511-00-33 Fender, FrontYB |
5EB-21511-00-33 |
US $193.39 |
||
|
2
|
2
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $3.26 |
||
|
3
|
3
90480-12072-00 Grommet |
90480-12072-00 |
from US $1.84 |
||
|
4
|
4
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
4
|
4
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
5
|
5
95024-06030-00 Bolt, Flange (Small Head) |
95024-06030-00 |
from US $1.56 |
||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
7
|
7
5MT-8212B-00-00
Box, Battery 1
|
5MT-8212B-00-00 |
— | ||
|
8
|
8
90119-06010-00 Bolt |
90119-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
9
|
9
90119-06009-00 Bolt, With Washer |
90119-06009-00 |
from US $1.56 |
||
| replacements | |||||
|
9
|
9
97527-06512-00 Bolt, With Washer |
97527-06512-00 |
from US $1.56 |
||
|
9
|
9
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
10
|
10
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
11
|
11
5MT-2172X-00-00 Cover, Taillight |
5MT-2172X-00-00 |
US $5.35 |
||
|
12
|
12
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
13
|
13
90464-13133-00 Clamp |
90464-13133-00 |
from US $1.70 |
||
|
14
|
14
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
14
|
14
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
15
|
15
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
16
|
16
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
17
|
17
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.13 |
||
|
18
|
18
5MT-21611-00-P1 Fender, RearDPBMC |
5MT-21611-00-P1 |
US $215.53 |
||
|
19
|
19
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
20
|
20
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
21
|
21
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $1.66 |
||
|
22
|
22
90154-05041-00 Screw, Binding |
90154-05041-00 |
from US $1.66 |
||
|
23
|
23
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
24
|
24
5MT-21669-00-00
Seal
|
5MT-21669-00-00 |
— | ||
|
25
|
25
90464-07259-00 Clamp |
90464-07259-00 |
from US $1.70 |
||
|
26
|
26
4XV-21376-00-00 Band, Tool |
4XV-21376-00-00 |
from US $5.10 |
||
|
27
|
27
98907-05020-00 Screw, Binding |
98907-05020-00 |
from US $1.56 |
||
|
28
|
28
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
28
|
28
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
29
|
29
5MT-21717-00-00 Damper |
5MT-21717-00-00 |
US $1.03 |
||
|
30
|
30
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
30
|
30
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
31
|
31
5MT-21629-10-00 Guard, Mud |
5MT-21629-10-00 |
US $103.14 |
||
|
32
|
32
5MT-2161G-00-00 Bracket 6 |
5MT-2161G-00-00 |
US $14.49 |
||
|
33
|
33
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.56 |
||
|
34
|
34
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
34
|
34
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
35
|
35
90464-09009-00 Clamp |
90464-09009-00 |
from US $2.55 |
||
|
36
|
36
90465-04013-00 Clamp |
90465-04013-00 |
US $1.66 |
||
|
37
|
37
5EB-28100-00-00 Tool Kit |
5EB-28100-00-00 |
US $100.44 |
||
|
38
|
38
5EB-14733-00-00
Mat 1
|
5EB-14733-00-00 |
— | ||
|
39
|
39
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
40
|
40
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
40
|
40
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
41
|
41
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
42
|
42
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
43
|
43
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
44
|
44
5MT-21688-00-00 Bracket, Rear StayL.H |
5MT-21688-00-00 |
US $12.02 |
||
|
45
|
45
5MT-21689-00-00 Bracket, Rear Stay 2R.H |
5MT-21689-00-00 |
US $8.10 |
||
|
46
|
46
90149-04278-00 Screw |
90149-04278-00 |
from US $1.34 |
||
|
47
|
47
95607-04100-00 Nut, U |
95607-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
47
|
47
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
48
|
48
5MT-84751-00-00 Bracket, License |
5MT-84751-00-00 |
from US $13.60 |
||
|
49
|
49
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
50
|
50
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
50
|
50
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
