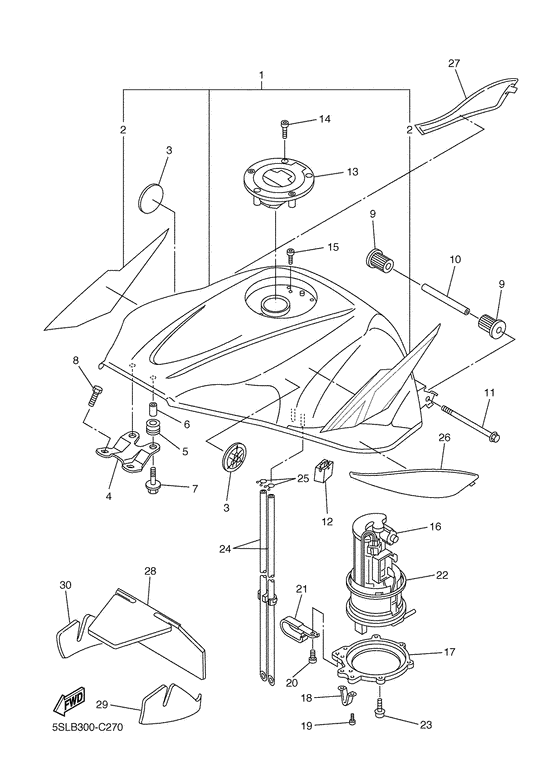

Fuel tank Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2004
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5SLB
- Sales region
- Sweden (100)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5SL-Y2410-30-04 Fuel Tank CompUr vrc1 |
5SL-Y2410-30-04 |
US $1,193.89 |
||
|
01
|
01
5SL-Y2410-30-05 Fuel Tank CompUr dpbmc |
5SL-Y2410-30-05 |
US $1,205.96 |
||
|
01
|
01
5SL-Y2410-M0-02
Fuel Tank Comp
Ur dbnm8 |
5SL-Y2410-M0-02 |
— | ||
|
02
|
02
5SL-24240-40-00 Graphic SetUr for vrc1 |
5SL-24240-40-00 |
US $77.67 |
||
|
02
|
02
5SL-24240-50-00 Graphic SetUr for dpbmc |
5SL-24240-50-00 |
US $82.33 |
||
|
02
|
02
5SL-24240-60-00
Graphic Set
Ur for dbnm8 |
5SL-24240-60-00 |
— | ||
|
03
|
03
5SL-2413B-00-00 Emblem |
5SL-2413B-00-00 |
from US $23.82 |
||
|
04
|
04
5SL-24191-00-00
Bracket, Fuel Tank 1
|
5SL-24191-00-00 |
— | ||
|
05
|
05
90480-15483-00 Grommet |
90480-15483-00 |
from US $1.84 |
||
|
06
|
06
90387-06054-00 Collar |
90387-06054-00 |
from US $3.40 |
||
|
07
|
07
90119-06062-00 Bolt, With Washer |
90119-06062-00 |
from US $1.42 |
||
| replacement | |||||
|
07
|
07
901-19062-34-00 Bolt, With Washer |
901-19062-34-00 |
from US $1.42 |
||
|
08
|
08
90110-06079-00 Bolt, Hexagon Socket Head |
90110-06079-00 |
from US $3.12 |
||
|
09
|
09
5SL-24183-00-00 Damper, Locating 3 |
5SL-24183-00-00 |
from US $3.68 |
||
|
10
|
10
903-87060-55-00 Collar |
903-87060-55-00 |
from US $4.39 |
||
|
11
|
11
95827-06090-00 Bolt, Flange |
95827-06090-00 |
from US $1.21 |
||
| replacement | |||||
|
11
|
11
958-17060-90-00 Bolt, Flange |
958-17060-90-00 |
from US $1.21 |
||
|
12
|
12
5SL-24182-00-00 Damper, Locating 2 |
5SL-24182-00-00 |
from US $7.08 |
||
|
13
|
13
5JJ-24602-00-00
Cap Assy
|
5JJ-24602-00-00 |
— | ||
| replacement | |||||
|
13
|
13
39P-24602-00-00 Cap Assy |
39P-24602-00-00 |
from US $164.98 |
||
|
14
|
14
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
15
|
15
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
16
|
16
5PW-13907-00-00
Fuel Pump Comp
|
5PW-13907-00-00 |
— | ||
| replacements | |||||
|
16
|
16
5PW-13907-02-00
Fuel Pump Comp
|
5PW-13907-02-00 |
— | ||
|
16
|
16
5PW-13907-03-00 Fuel Pump Comp. |
5PW-13907-03-00 |
from US $448.76 |
||
|
16
|
16
5PW-13907-05-00 Fuel Pump Comp. |
5PW-13907-05-00 |
US $792.95 |
||
|
16
|
16
5PW-13907-05-00 Fuel Pump Comp. |
5PW-13907-05-00 |
US $792.95 |
||
|
17
|
17
5SL-24491-10-00 Bracket, Fuel Pump |
5SL-24491-10-00 |
from US $55.36 |
||
|
18
|
18
5PW-24192-00-00 Bracket, Fuel Tank 2 |
5PW-24192-00-00 |
US $59 |
||
|
19
|
19
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
20
|
20
90154-05012-00 Screw, Bind |
90154-05012-00 |
from US $1.35 |
||
| replacement | |||||
|
20
|
20
98907-05008-00 Screw, Binding |
98907-05008-00 |
from US $1.98 |
||
|
21
|
21
90461-10009-00 Clamp |
90461-10009-00 |
US $10.85 |
||
|
22
|
22
5JW-24486-00-00
O-Ring
|
5JW-24486-00-00 |
— | ||
| replacement | |||||
|
22
|
22
19B-24486-01-00 O-Ring |
19B-24486-01-00 |
from US $20.97 |
||
|
23
|
23
90110-05014-00 Bolt, Hexagon Socket Head |
90110-05014-00 |
from US $1.70 |
||
|
24
|
24
5SL-22906-00-00 Hose Assy 1 |
5SL-22906-00-00 |
US $18.83 |
||
|
25
|
25
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
25
|
25
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
25
|
25
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
26
|
26
5SL-24129-00-00 Cover, Side 1 |
5SL-24129-00-00 |
from US $20.11 |
||
|
27
|
27
5SL-24139-00-00 Cover, Side 2 |
5SL-24139-00-00 |
from US $23.24 |
||
|
28
|
28
5SL-2414H-00-00 Damper, Plate 1 |
5SL-2414H-00-00 |
from US $9.40 |
||
|
29
|
29
5SL-2414J-00-00 Damper, Plate 2 |
5SL-2414J-00-00 |
from US $3.97 |
||
|
30
|
30
5SL-2414K-00-00 Damper, Plate 3 |
5SL-2414K-00-00 |
US $6.52 |
||
