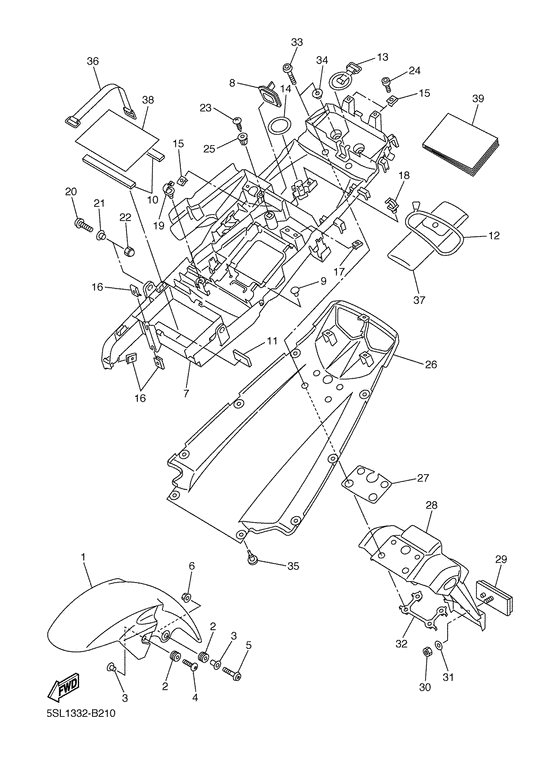

Pare boue Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2004
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5SLC
- Sales region
- France (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5SL-21511-00-P1 Fender, FrontPour dpbmc |
5SL-21511-00-P1 |
from US $122.20 |
||
|
01
|
01
5SL-21511-00-P4 Fender, FrontPour vrc1,dbnm8 |
5SL-21511-00-P4 |
from US $122.20 |
||
|
02
|
02
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
03
|
03
90387-06057-00 Collar |
90387-06057-00 |
from US $2.55 |
||
|
04
|
04
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
05
|
05
920-14060-25-00 Bolt, Button Head |
920-14060-25-00 |
from US $2.13 |
||
|
06
|
06
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
07
|
07
5SL-8212B-00-00 Box, Battery 1 |
5SL-8212B-00-00 |
from US $105.14 |
||
| replacement | |||||
|
07
|
07
5SL-8212B-01-00 Box, Battery 1 |
5SL-8212B-01-00 |
from US $105.14 |
||
|
08
|
08
5MT-2172X-00-00 Cover, Taillight |
5MT-2172X-00-00 |
US $5.35 |
||
|
09
|
09
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
09
|
09
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.98 |
||
|
10
|
10
1AE-2834E-00-00 Damper 1 |
1AE-2834E-00-00 |
from US $2.13 |
||
|
11
|
11
3KJ-24723-00-00 Damper, Seat |
3KJ-24723-00-00 |
from US $2.13 |
||
|
12
|
12
3YX-21376-00-00 Band, Tool |
3YX-21376-00-00 |
from US $11.33 |
||
|
13
|
13
5SL-21646-00-00 Band |
5SL-21646-00-00 |
from US $5.81 |
||
|
14
|
14
5SL-21647-00-00 Band |
5SL-21647-00-00 |
from US $2.69 |
||
|
15
|
15
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
15
|
15
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
16
|
16
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
16
|
16
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
17
|
17
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
18
|
18
90464-07259-00 Clamp |
90464-07259-00 |
from US $1.70 |
||
|
19
|
19
90464-13249-00 Clamp |
90464-13249-00 |
from US $1.34 |
||
|
20
|
20
90111-06007-00 Bolt, Button Head |
90111-06007-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
21
|
21
903-87060-22-00
Collar
|
903-87060-22-00 |
— | ||
| replacement | |||||
|
21
|
21
903-87061-06-00 Collar |
903-87061-06-00 |
from US $1.70 |
||
|
22
|
22
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
23
|
23
97707-60020-00 Screw, Tapping |
97707-60020-00 |
from US $0.52 |
||
|
24
|
24
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
25
|
25
90338-08226-00 Plug |
90338-08226-00 |
from US $1.70 |
||
|
26
|
26
5SL-21611-00-P1 Fender, RearPour dpbmc |
5SL-21611-00-P1 |
from US $154.98 |
||
|
26
|
26
5SL-21611-00-P4 Fender, RearPour vrc1,dbnm8 |
5SL-21611-00-P4 |
from US $161.65 |
||
|
27
|
27
5SL-21669-00-00 Seal |
5SL-21669-00-00 |
US $12.82 |
||
|
28
|
28
5SL-21629-00-00 Guard, Mud |
5SL-21629-00-00 |
US $67.84 |
||
| replacement | |||||
|
28
|
28
5SL-21629-01-00 Guard, Mud |
5SL-21629-01-00 |
US $67.84 |
||
|
29
|
29
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
30
|
30
95607-05100-00 Nut, U |
95607-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
30
|
30
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
31
|
31
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
32
|
32
5PW-2161G-00-00 Bracket 6 |
5PW-2161G-00-00 |
US $19.48 |
||
|
33
|
33
92017-06020-00 Bolt, Button Head |
92017-06020-00 |
from US $1.56 |
||
|
34
|
34
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
34
|
34
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
35
|
35
902-69070-77-00 Rivet |
902-69070-77-00 |
from US $1.84 |
||
|
36
|
36
5JJ-82131-00-00 Band, Battery |
5JJ-82131-00-00 |
from US $6.38 |
||
|
37
|
37
5SL-28100-00-00 Tool Kit |
5SL-28100-00-00 |
from US $86.35 |
||
|
38
|
38
5EB-14733-00-00
Mat 1
|
5EB-14733-00-00 |
— | ||
|
39
|
39
5SL-28199-F1-00
Manual,owner`s
|
5SL-28199-F1-00 |
— | ||
