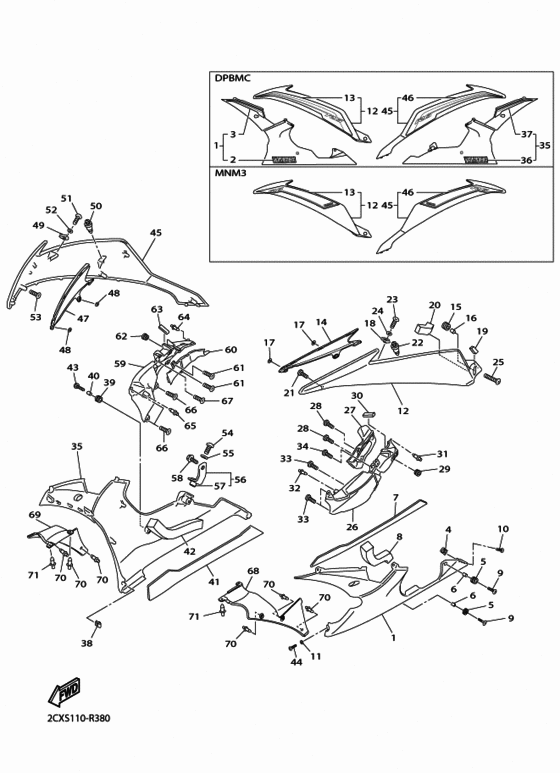

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2016
- Colour
- Deep Purplish Blue Metallic C
- Model code
- 2CXU
- Sales region
- Canada (010)
- Базовая модель
- YZF-R6
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-W2838-U0-P7 Under Cover Comp. 1UR FOR DPBMC |
13S-W2838-U0-P7 |
from US $322.34 |
||
|
2
|
2
99247-00240-00 Emblem, YamahaFOR DPBMC |
99247-00240-00 |
from US $10.91 |
||
|
3
|
3
2CX-283A1-40-00 Graphic, Under Cover 1FOR DPBMC |
2CX-283A1-40-00 |
US $47.83 |
||
|
4
|
4
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
4
|
4
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
5
|
5
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
6
|
6
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
7
|
7
13S-2838G-00-00 Seat 1 |
13S-2838G-00-00 |
from US $28.19 |
||
|
8
|
8
905-20500-02-00 Damper, Plate |
905-20500-02-00 |
from US $3.40 |
||
|
9
|
9
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
10
|
10
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
10
|
10
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
11
|
11
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
12
|
12
13S-W283U-S0-PC Panel Assy 1UR FOR DPBMC |
13S-W283U-S0-PC |
from US $422.37 |
||
|
13
|
13
2CX-28391-80-00 Graphic 1UR FOR DPBMC |
2CX-28391-80-00 |
from US $150.59 |
||
|
14
|
14
13S-28219-00-00 Cover 1 |
13S-28219-00-00 |
from US $8.22 |
||
|
15
|
15
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
16
|
16
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
17
|
17
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
18
|
18
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
19
|
19
13S-28415-00-00 Damper 1 |
13S-28415-00-00 |
from US $1.70 |
||
|
20
|
20
905-20500-01-00 Damper, Plate |
905-20500-01-00 |
from US $1.56 |
||
|
21
|
21
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
21
|
21
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
22
|
22
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
23
|
23
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
23
|
23
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
24
|
24
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
25
|
25
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
26
|
26
13S-2137U-00-00 Guide, Air 1 |
13S-2137U-00-00 |
from US $26.49 |
||
|
27
|
27
13S-2137K-00-00 Guide, Air 3 |
13S-2137K-00-00 |
from US $9.21 |
||
|
28
|
28
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
28
|
28
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
29
|
29
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
30
|
30
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
31
|
31
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
32
|
32
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
33
|
33
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
33
|
33
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
34
|
34
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
34
|
34
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
35
|
35
13S-W2839-U0-P7 Under Cover Comp. 2UR FOR DPBMC |
13S-W2839-U0-P7 |
from US $354.64 |
||
|
36
|
36
99247-00240-00 Emblem, YamahaFOR DPBMC |
99247-00240-00 |
from US $10.91 |
||
|
37
|
37
2CX-283A2-40-00 Graphic, Under Cover 2FOR DPBMC |
2CX-283A2-40-00 |
from US $37.86 |
||
|
38
|
38
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
38
|
38
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
39
|
39
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
40
|
40
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
41
|
41
13S-2848K-00-00 Seat 2 |
13S-2848K-00-00 |
from US $28.19 |
||
|
42
|
42
13S-2847R-00-00 Damper 10 |
13S-2847R-00-00 |
from US $12.47 |
||
|
43
|
43
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
44
|
44
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
44
|
44
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
45
|
45
13S-W283V-S0-PC Panel Assy 2UR FOR DPBMC |
13S-W283V-S0-PC |
from US $422.37 |
||
|
46
|
46
2CX-28392-80-00 Graphic 2UR FOR DPBMC |
2CX-28392-80-00 |
US $157 |
||
|
47
|
47
13S-28229-00-00 Cover 2 |
13S-28229-00-00 |
from US $8.22 |
||
|
48
|
48
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
49
|
49
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
49
|
49
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
50
|
50
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
51
|
51
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
51
|
51
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
52
|
52
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
53
|
53
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
53
|
53
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
54
|
54
90109-06207-00 Bolt |
90109-06207-00 |
from US $6.52 |
||
|
55
|
55
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
56
|
56
13S-2836G-00-00 Bracket 4 |
13S-2836G-00-00 |
from US $13.74 |
||
|
57
|
57
90179-06059-00 Nut |
90179-06059-00 |
from US $3.83 |
||
|
58
|
58
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
58
|
58
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
58
|
58
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
59
|
59
13S-2137V-00-00 Guide, Air 2 |
13S-2137V-00-00 |
from US $26.49 |
||
|
60
|
60
13S-2137L-00-00 Guide, Air 4 |
13S-2137L-00-00 |
from US $9.21 |
||
|
61
|
61
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
61
|
61
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
62
|
62
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
63
|
63
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
64
|
64
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
65
|
65
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
66
|
66
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
66
|
66
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
67
|
67
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
67
|
67
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
68
|
68
13S-2836L-00-00 Panel, Inner 2 |
13S-2836L-00-00 |
from US $17.57 |
||
|
69
|
69
13S-2836M-00-00 Panel, Inner 3 |
13S-2836M-00-00 |
from US $17.57 |
||
|
70
|
70
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
71
|
71
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
