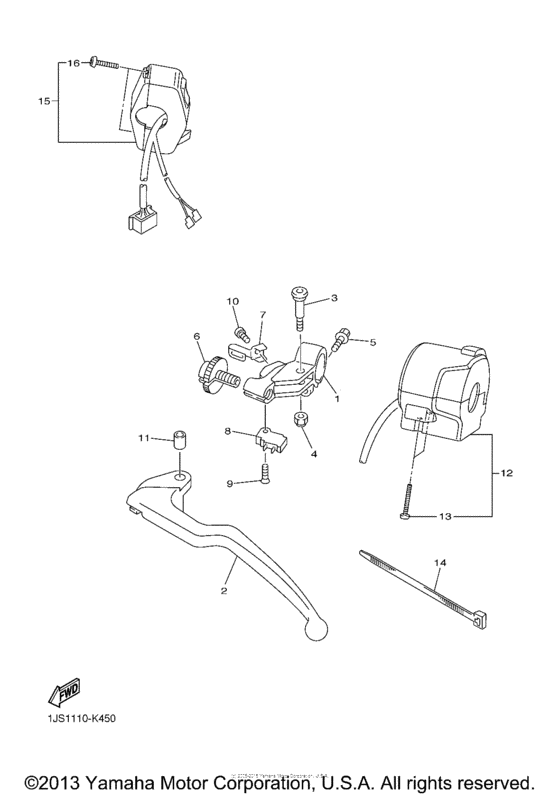

Handle switch & lever Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2011
- Model code
- 1JS6
- Sales region
- United States (California)
- Базовая модель
- YZFR6ACR
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XV-82911-10-00 Holder, Lever 1 |
4XV-82911-10-00 |
from US $31.45 |
||
|
2
|
2
5EB-83912-03-00 Lever 1 |
5EB-83912-03-00 |
from US $21.39 |
||
|
3
|
3
2C0-83945-00-00 Bolt, Lever |
2C0-83945-00-00 |
from US $5.38 |
||
|
4
|
4
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
4
|
4
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
5
|
5
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
6
|
6
5LV-83951-00-00 Bolt, Cable Adjusting |
5LV-83951-00-00 |
from US $36.61 |
||
|
7
|
7
4XV-83929-00-00 Plate, Spring |
4XV-83929-00-00 |
from US $6.38 |
||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
4XV-82917-01-00 Switch |
4XV-82917-01-00 |
from US $20.18 |
||
|
9
|
9
98707-03016-00 Screw, Flat Head |
98707-03016-00 |
from US $1.98 |
||
|
10
|
10
98507-04010-00 Screw, Pan Head |
98507-04010-00 |
from US $1.21 |
||
|
11
|
11
5JJ-83913-00-00 Collar, Lever 1 |
5JJ-83913-00-00 |
from US $5.81 |
||
|
12
|
12
13S-83973-00-00 Switch, Handle 3 |
13S-83973-00-00 |
from US $119.51 |
||
|
13
|
13
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
14
|
14
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
15
|
15
13S-83975-00-00 Switch, Handle 2 |
13S-83975-00-00 |
from US $84.69 |
||
|
16
|
16
98507-05022-00 Screw, Pan Head |
98507-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
