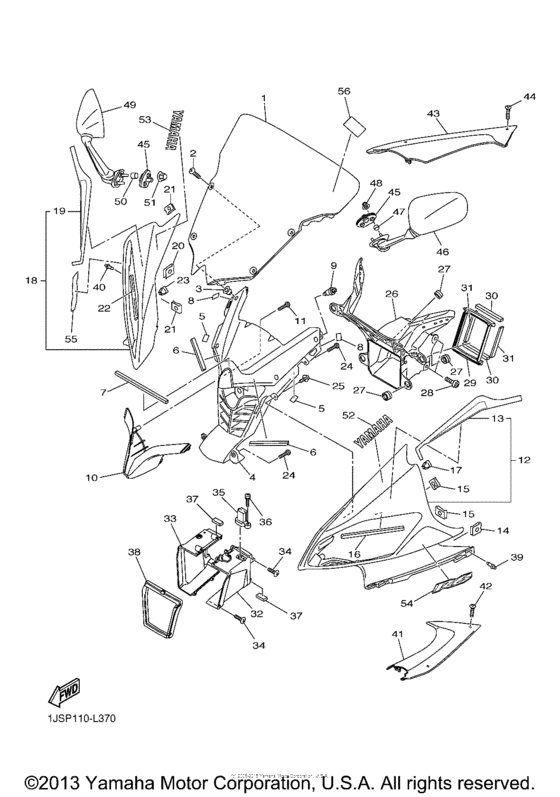

Cowling (1) Diagram Yamaha YZF-R6/ YZF600 R6 50th Anniversary Edition
- Year
- 2012
- Model code
- 1JSR
- Sales region
- United States (California)
- Базовая модель
- YZFR6BCGP
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-28381-10-00 Windshield |
13S-28381-10-00 |
from US $84.14 |
||
|
2
|
2
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.66 |
||
|
3
|
3
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
4
|
4
13S-2836K-00-00 Panel, Inner 1 |
13S-2836K-00-00 |
from US $26.64 |
||
|
5
|
5
3P6-28217-00-00 Damper 1 |
3P6-28217-00-00 |
from US $1.84 |
||
|
6
|
6
13S-28227-00-00 Damper 2 |
13S-28227-00-00 |
from US $1.34 |
||
|
7
|
7
13S-28237-00-00 Damper 3 |
13S-28237-00-00 |
from US $1.70 |
||
|
8
|
8
13S-28371-00-00 Damper |
13S-28371-00-00 |
from US $1.70 |
||
|
9
|
9
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
9
|
9
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
10
|
10
13S-28365-10-00 Cover |
13S-28365-10-00 |
from US $12.75 |
||
|
11
|
11
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
12
|
12
13S-Y280G-00-0X Body, Front Upper 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-Y280G-00-0X |
from US $233.49 |
||
|
13
|
13
13S-2832B-F0-00 Graphic, 1515 |
13S-2832B-F0-00 |
from US $21.25 |
||
|
14
|
14
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
14
|
14
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
15
|
15
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
16
|
16
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
17
|
17
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.34 |
||
|
18
|
18
13S-Y280H-00-0X Body, Front Upper 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-Y280H-00-0X |
from US $233.49 |
||
|
19
|
19
13S-2832C-F0-00 Graphic, 1616 |
13S-2832C-F0-00 |
US $22.07 |
||
|
20
|
20
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
20
|
20
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
21
|
21
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
22
|
22
2C0-28455-00-00 Damper, 4 |
2C0-28455-00-00 |
from US $1.84 |
||
|
23
|
23
90480-01605-00 Grommet |
90480-01605-00 |
from US $1.34 |
||
|
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
24
|
24
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
25
|
25
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
26
|
26
13S-28356-00-00 Stay 1 |
13S-28356-00-00 |
from US $245.92 |
||
|
27
|
27
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
28
|
28
90111-06116-00 Bolt, Hex. Socket Button |
90111-06116-00 |
from US $1.42 |
||
|
29
|
29
2C0-28342-01-00 Joint |
2C0-28342-01-00 |
from US $4.11 |
||
| replacement | |||||
|
29
|
29
2C0-28342-02-00 JOINT |
2C0-28342-02-00 |
from US $4.11 |
||
|
30
|
30
2C0-28217-00-00 Damper 1 |
2C0-28217-00-00 |
from US $1.70 |
||
|
31
|
31
2C0-28227-00-00 Damper 2 |
2C0-28227-00-00 |
from US $1.70 |
||
|
32
|
32
13S-2838R-00-00 Duct 2 |
13S-2838R-00-00 |
from US $7.65 |
||
|
33
|
33
13S-2838T-00-00 Duct 3 |
13S-2838T-00-00 |
US $7.65 |
||
| replacement | |||||
|
33
|
33
13S-2838T-01-00 Duct 3 |
13S-2838T-01-00 |
US $13.46 |
||
|
34
|
34
97702-40016-00 Screw, Tapping |
97702-40016-00 |
from US $1.42 |
||
| replacement | |||||
|
34
|
34
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
35
|
35
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
36
|
36
97702-50116-00 Screw, Tapping |
97702-50116-00 |
from US $1.42 |
||
| replacement | |||||
|
36
|
36
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.42 |
||
|
37
|
37
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
38
|
38
2C0-28371-00-00 Damper |
2C0-28371-00-00 |
from US $13.60 |
||
|
39
|
39
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
40
|
40
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
41
|
41
13S-2837L-00-00 Panel, Console 1 |
13S-2837L-00-00 |
from US $13.60 |
||
|
42
|
42
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
43
|
43
13S-2837M-00-00 Panel, Console 2 |
13S-2837M-00-00 |
from US $11.58 |
||
|
44
|
44
90111-05021-00 Bolt,hex. Socket Button |
90111-05021-00 |
from US $1.34 |
||
|
45
|
45
13S-26298-00-00 Plate, Mirror Fitting 1 |
13S-26298-00-00 |
from US $4.25 |
||
|
46
|
46
13S-26280-10-00 Rear View Mirror Assy (Left) |
13S-26280-10-00 |
from US $111.50 |
||
|
47
|
47
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
48
|
48
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.70 |
||
|
49
|
49
13S-26290-10-00 Rear View Mirror Assy (Right) |
13S-26290-10-00 |
from US $111.50 |
||
|
50
|
50
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
|
51
|
51
90176-06008-00 Nut, Crown |
90176-06008-00 |
from US $1.70 |
||
|
52
|
52
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
53
|
53
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
54
|
54
1JS-28328-30-00 Emblem |
1JS-28328-30-00 |
from US $15.91 |
||
|
55
|
55
1JS-28328-30-00 Emblem |
1JS-28328-30-00 |
from US $15.91 |
||
|
56
|
56
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
