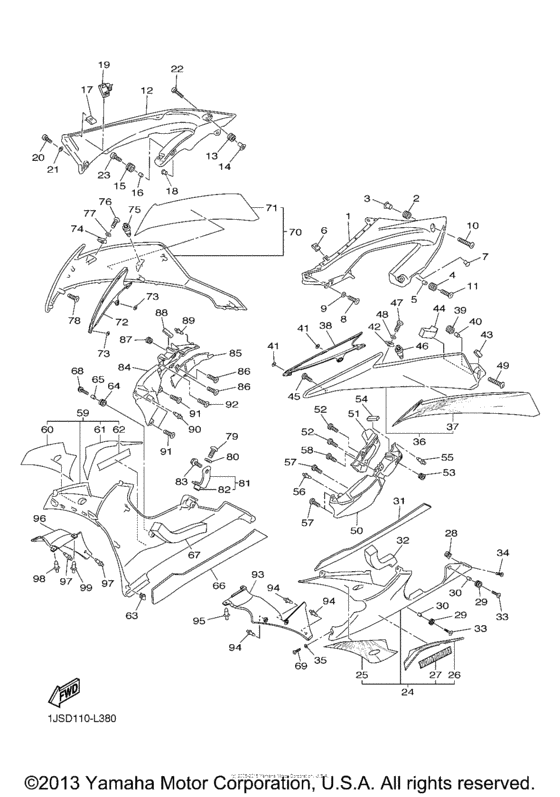

Cowling (2) Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2012
- Colour
- Bluish White Cocktail
- Model code
- 1JSE
- Sales region
- United States (California)
- Базовая модель
- YZFR6BCW
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-2117V-00-P1 Cover 7Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-2117V-00-P1 |
from US $175.46 |
||
|
2
|
2
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
3
|
3
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
4
|
4
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
5
|
5
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
6
|
6
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
6
|
6
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
7
|
7
90338-06134-00 Plug |
90338-06134-00 |
from US $2.69 |
||
|
8
|
8
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
8
|
8
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
9
|
9
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
10
|
10
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
11
|
11
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
12
|
12
13S-2117W-00-P1 Cover 8Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-2117W-00-P1 |
from US $164.41 |
||
|
13
|
13
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
14
|
14
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
15
|
15
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
16
|
16
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
17
|
17
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
17
|
17
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
18
|
18
90338-06134-00 Plug |
90338-06134-00 |
from US $2.69 |
||
|
19
|
19
90464-20014-00 Clamp |
90464-20014-00 |
from US $3.83 |
||
|
20
|
20
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
20
|
20
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
21
|
21
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
22
|
22
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
23
|
23
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
24
|
24
13S-W2838-00-33 Under Cover Comp. 1for Color YAMAHA BLACK YB / 0033 |
13S-W2838-00-33 |
from US $403.74 |
||
| replacements | |||||
|
24
|
24
13S-W2838-90-33 UNDER COVER COMP. 1for Color YAMAHA BLACK YB / 0033 |
13S-W2838-90-33 |
from US $316.33 |
||
|
24
|
24
13S-W2838-9A-33 Under Cover Comp. 1for Color YAMAHA BLACK YB / 0033 |
13S-W2838-9A-33 |
US $404.01 |
||
|
25
|
25
1JS-283A1-30-00 Graphic, Under Cover 1 |
1JS-283A1-30-00 |
from US $61.62 |
||
|
26
|
26
1JS-283A3-00-00 Graphic, Under Cover 3 |
1JS-283A3-00-00 |
from US $58.03 |
||
|
27
|
27
1JS-2153E-20-00 Emblem, Yamaha |
1JS-2153E-20-00 |
from US $25.36 |
||
|
28
|
28
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
28
|
28
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
29
|
29
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
30
|
30
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
31
|
31
13S-2838G-00-00 Seat 1 |
13S-2838G-00-00 |
from US $28.19 |
||
|
32
|
32
905-20500-02-00 Damper, Plate |
905-20500-02-00 |
from US $3.40 |
||
|
33
|
33
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
34
|
34
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
34
|
34
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
35
|
35
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
36
|
36
13S-W283U-00-33 Panel Assy 1Use for Color YAMAHA BLACK YB / 0033 |
13S-W283U-00-33 |
from US $452.85 |
||
| replacement | |||||
|
36
|
36
13S-W283U-90-33 Panel Assy 1Use for Color YAMAHA BLACK YB / 0033 |
13S-W283U-90-33 |
from US $352.72 |
||
|
37
|
37
1JS-28391-40-00 Graphic 1 |
1JS-28391-40-00 |
from US $83.17 |
||
|
38
|
38
13S-28219-00-00 Cover 1 |
13S-28219-00-00 |
from US $8.22 |
||
|
39
|
39
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
40
|
40
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
41
|
41
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
42
|
42
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
42
|
42
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
43
|
43
13S-28415-00-00 Damper 1 |
13S-28415-00-00 |
from US $1.70 |
||
|
44
|
44
905-20500-01-00 Damper, Plate |
905-20500-01-00 |
from US $1.56 |
||
|
45
|
45
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
45
|
45
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
46
|
46
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
47
|
47
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
47
|
47
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
48
|
48
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
49
|
49
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
50
|
50
13S-2137U-00-00 Guide, Air 1 |
13S-2137U-00-00 |
from US $26.49 |
||
|
51
|
51
13S-2137K-00-00 Guide, Air 3 |
13S-2137K-00-00 |
from US $9.21 |
||
|
52
|
52
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
52
|
52
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
53
|
53
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
54
|
54
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
55
|
55
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
56
|
56
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
57
|
57
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
57
|
57
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
58
|
58
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
58
|
58
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
59
|
59
13S-W2839-00-33 Under Cover Comp. 2for Color YAMAHA BLACK YB / 0033 |
13S-W2839-00-33 |
from US $316.33 |
||
| replacement | |||||
|
59
|
59
13S-W2839-90-33 Under Cover Compfor Color YAMAHA BLACK YB / 0033 |
13S-W2839-90-33 |
from US $316.33 |
||
|
60
|
60
1JS-283A2-30-00 Graphic, Under Cover 2 |
1JS-283A2-30-00 |
from US $61.62 |
||
|
61
|
61
1JS-283A4-00-00 Graphic, Under Cover 4 |
1JS-283A4-00-00 |
from US $58.03 |
||
|
62
|
62
1JS-2153E-20-00 Emblem, Yamaha |
1JS-2153E-20-00 |
from US $25.36 |
||
|
63
|
63
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
63
|
63
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
64
|
64
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
65
|
65
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
66
|
66
13S-2848K-00-00 Seat 2 |
13S-2848K-00-00 |
from US $28.19 |
||
|
67
|
67
13S-2847R-00-00 Damper 1010 |
13S-2847R-00-00 |
from US $12.47 |
||
|
68
|
68
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
69
|
69
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
69
|
69
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
70
|
70
13S-W283V-00-33 Panel Assy 2Use for Color YAMAHA BLACK YB / 0033 |
13S-W283V-00-33 |
from US $447.39 |
||
| replacement | |||||
|
70
|
70
13S-W283V-90-33 Panel Assy 2Use for Color YAMAHA BLACK YB / 0033 |
13S-W283V-90-33 |
from US $348.52 |
||
|
71
|
71
1JS-28392-40-00 Graphic 2 |
1JS-28392-40-00 |
from US $83.17 |
||
|
72
|
72
13S-28229-00-00 Cover 2 |
13S-28229-00-00 |
from US $8.22 |
||
|
73
|
73
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
74
|
74
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
74
|
74
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
75
|
75
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
76
|
76
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
76
|
76
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
77
|
77
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
78
|
78
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
78
|
78
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
79
|
79
90109-06207-00 Bolt |
90109-06207-00 |
from US $6.52 |
||
|
80
|
80
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
81
|
81
13S-2836G-00-00 Bracket 4 |
13S-2836G-00-00 |
from US $13.74 |
||
|
82
|
82
90179-06059-00 Nut |
90179-06059-00 |
from US $3.83 |
||
|
83
|
83
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
83
|
83
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
83
|
83
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
84
|
84
13S-2137V-00-00 Guide, Air 2 |
13S-2137V-00-00 |
from US $26.49 |
||
|
85
|
85
13S-2137L-00-00 Guide, Air 4 |
13S-2137L-00-00 |
from US $9.21 |
||
|
86
|
86
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
86
|
86
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
87
|
87
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
88
|
88
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
89
|
89
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
90
|
90
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
91
|
91
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
91
|
91
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
92
|
92
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
92
|
92
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
93
|
93
13S-2836L-00-00 Panel, Inner 2 |
13S-2836L-00-00 |
from US $17.57 |
||
|
94
|
94
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
95
|
95
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
|
96
|
96
13S-2836M-00-00 Panel, Inner 3 |
13S-2836M-00-00 |
from US $17.57 |
||
|
97
|
97
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
98
|
98
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
|
99
|
99
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
