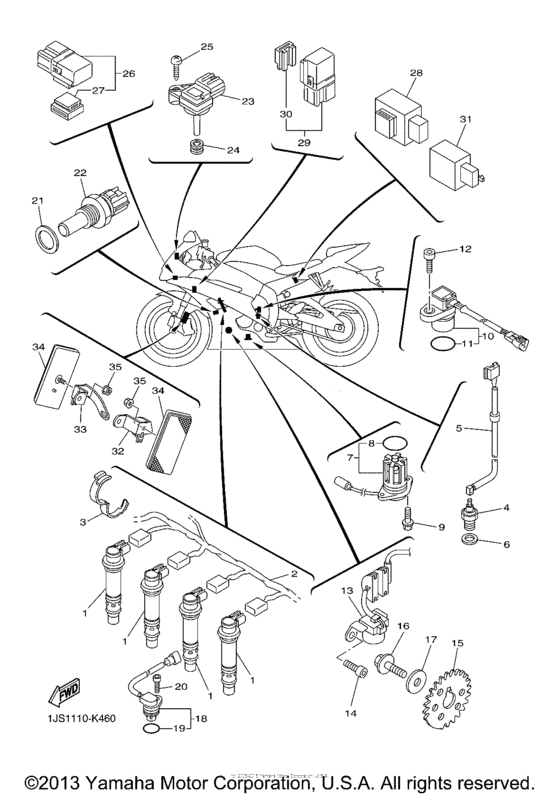

Electrical (1) Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2012
- Colour
- Bluish White Cocktail
- Model code
- 1JSE
- Sales region
- United States (California)
- Базовая модель
- YZFR6BCW
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-82310-00-00 Ignition Coil Assy |
13S-82310-00-00 |
from US $151.98 |
||
|
2
|
2
2C0-82309-00-00 Wire, Sub Lead |
2C0-82309-00-00 |
from US $111.91 |
||
|
3
|
3
90464-28003-00 Clamp |
90464-28003-00 |
from US $1.98 |
||
|
4
|
4
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
5
|
5
2C0-82541-00-00 Wire, Lead |
2C0-82541-00-00 |
from US $9.92 |
||
|
6
|
6
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
7
|
7
5VX-85720-01-00 Oil Level Gauge Assy |
5VX-85720-01-00 |
from US $85.80 |
||
|
8
|
8
5VY-8A8E0-00-00 O-Ring |
5VY-8A8E0-00-00 |
from US $7.28 |
||
|
9
|
9
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.56 |
||
|
10
|
10
4WM-83755-02-00 Sensor, Speed |
4WM-83755-02-00 |
from US $140.92 |
||
| replacement | |||||
|
10
|
10
4WM-83755-03-00 |
4WM-83755-03-00 |
US $151.15 |
||
|
11
|
11
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
12
|
12
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
13
|
13
2C0-81670-00-00 Pick-Up Assy |
2C0-81670-00-00 |
from US $104.86 |
||
|
14
|
14
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
14
|
14
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
14
|
14
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
|
15
|
15
2C0-81673-01-00 Rotor |
2C0-81673-01-00 |
from US $20.54 |
||
|
16
|
16
90105-08113-00 Bolt, Flange |
90105-08113-00 |
from US $3.40 |
||
| replacement | |||||
|
16
|
16
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
17
|
17
90201-08054-00 Washer, Plate |
90201-08054-00 |
from US $1.70 |
||
|
18
|
18
5VY-85896-00-00
Sensor, Cam Position
|
5VY-85896-00-00 |
— | ||
| replacements | |||||
|
18
|
18
5VY-85896-01-00 Sensor, Cam Position |
5VY-85896-01-00 |
from US $112.80 |
||
|
18
|
18
5VY-85896-02-00 Sensor, Cam Position |
5VY-85896-02-00 |
from US $137.61 |
||
|
19
|
19
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
20
|
20
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
20
|
20
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
20
|
20
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
21
|
21
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
22
|
22
8CC-85790-01-00 Thermosensor Assy |
8CC-85790-01-00 |
from US $51.95 |
||
|
23
|
23
2C0-82380-00-00
Sensor, Pressure
|
2C0-82380-00-00 |
— | ||
| replacement | |||||
|
23
|
23
1WS-82380-00-00 Sensor, Pressure |
1WS-82380-00-00 |
from US $114.40 |
||
|
24
|
24
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
25
|
25
97702-50120-00 Screw, Tapping |
97702-50120-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
26
|
26
5JJ-81950-20-00 Relay Assy (5JJ-20)5JJ-20 |
5JJ-81950-20-00 |
from US $23.52 |
||
|
27
|
27
5JJ-81952-00-00 Holder, Relay |
5JJ-81952-00-00 |
from US $5.38 |
||
|
28
|
28
5VK-81950-40-00
Relay Assy (5Vk-40)
5VK-40 |
5VK-81950-40-00 |
— | ||
| replacements | |||||
|
28
|
28
5VK-81950-41-00 Relay Assy5VK-40 |
5VK-81950-41-00 |
from US $65.89 |
||
|
28
|
28
5VK-81950-42-00 RELAY ASSY5VK-40 |
5VK-81950-42-00 |
from US $52.99 |
||
|
29
|
29
5EA-81950-20-00 Relay Assy (5Ea-02)5EA-02 |
5EA-81950-20-00 |
from US $21.68 |
||
|
30
|
30
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.39 |
||
|
31
|
31
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
31
|
31
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
31
|
31
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
|
32
|
32
13S-85112-00-00 Bracket, Reflector 1 |
13S-85112-00-00 |
from US $10.48 |
||
|
33
|
33
13S-85122-00-00 Bracket, Reflector 2 |
13S-85122-00-00 |
from US $10.48 |
||
|
34
|
34
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $11.92 |
||
|
35
|
35
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
35
|
35
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
