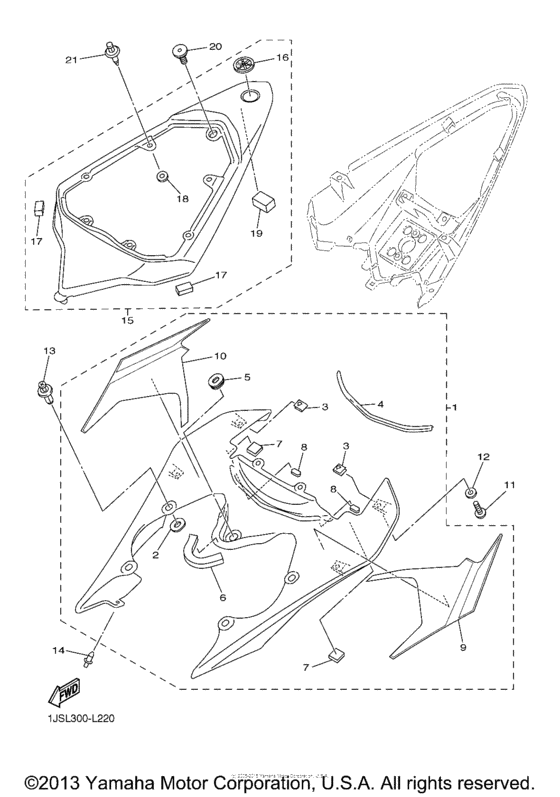

Side cover Diagram Yamaha YZF-R6/ YZF600 R6 50th Anniversary Edition
- Year
- 2012
- Model code
- 1JSP
- Sales region
- USA
- Базовая модель
- YZFR6BGP
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-Y2171-30-P1 Cover, Side 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-Y2171-30-P1 |
from US $212.77 |
||
|
2
|
2
5PW-2174X-00-00 Damper |
5PW-2174X-00-00 |
from US $1.70 |
||
|
3
|
3
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
3
|
3
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
4
|
4
13S-2171L-00-00 Mole, Side Cover 1 |
13S-2171L-00-00 |
from US $4.25 |
||
|
5
|
5
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
6
|
6
2C0-28237-00-00 Damper 3 |
2C0-28237-00-00 |
from US $2.13 |
||
|
7
|
7
1UF-15379-00-00 Seal |
1UF-15379-00-00 |
from US $1.70 |
||
|
8
|
8
5SL-28416-00-00 Damper 2 |
5SL-28416-00-00 |
from US $1.84 |
||
|
9
|
9
13S-2173E-40-00 Graphic 1 |
13S-2173E-40-00 |
US $43.15 |
||
|
10
|
10
13S-2173F-40-00 Graphic 2 |
13S-2173F-40-00 |
US $40.66 |
||
|
11
|
11
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
|
12
|
12
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
13
|
13
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
14
|
14
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
15
|
15
13S-21720-10-P1 Side Cover Assy 2Use for Color VIVID RED COCKTAIL 1 VRC1 / 0121 |
13S-21720-10-P1 |
from US $172.70 |
||
|
16
|
16
4KN-2836B-20-00 Tuning Fork Mark |
4KN-2836B-20-00 |
from US $20.54 |
||
|
17
|
17
13S-21639-00-00 Damper 2 |
13S-21639-00-00 |
from US $1.70 |
||
|
18
|
18
5SL-84753-00-00 Damper |
5SL-84753-00-00 |
from US $1.70 |
||
|
19
|
19
4J2-21778-00-00 Cap |
4J2-21778-00-00 |
from US $1.84 |
||
| replacement | |||||
|
19
|
19
1WG-2143A-00-00 Cap |
1WG-2143A-00-00 |
from US $5.67 |
||
|
20
|
20
90109-06248-00 Bolt |
90109-06248-00 |
from US $16.15 |
||
|
21
|
21
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
