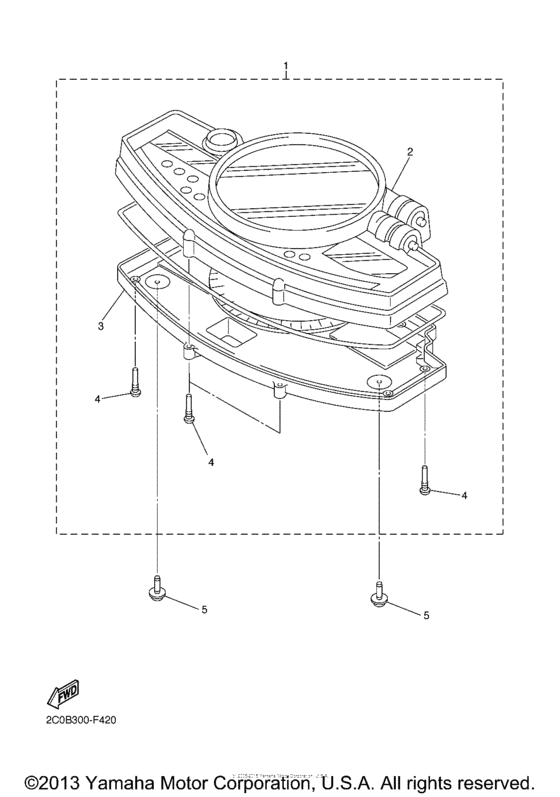

Meter Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2014
- Model code
- 2CX8
- Sales region
- United States (California)
- Базовая модель
- YZFR6ECGY
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-83500-21-00 Meter Assy (Mph) |
13S-83500-21-00 |
from US $718.08 |
||
|
2
|
2
5VY-8353E-00-00 Case, Meter Upper |
5VY-8353E-00-00 |
from US $204.48 |
||
|
3
|
3
5VY-83572-02-00 Case, Speedometer Lower |
5VY-83572-02-00 |
from US $40.48 |
||
|
4
|
4
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.84 |
||
|
5
|
5
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
