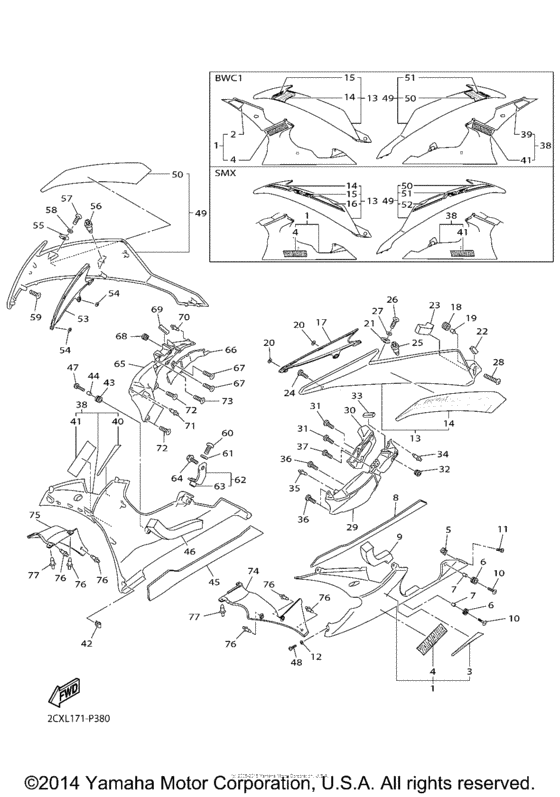

Cowling (2) Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2015
- Model code
- 2CXK
- Sales region
- United States (California)
- Базовая модель
- YZFR6FCL
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-W2838-T0-P7 Under Cover Comp. 1for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
13S-W2838-T0-P7 |
from US $364.19 |
||
|
1
|
1
13S-W2838-R0-P0 Under Cover Comp. 1for Color MAT BLACK 2 MBL2 / 0582 |
13S-W2838-R0-P0 |
US $394.63 |
||
|
1
|
1
13S-W2838-S0-P3 Under Cover Comp. 1for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-W2838-S0-P3 |
US $394.63 |
||
|
2
|
2
2CX-283A1-30-00 Graphic, Under Cover 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-283A1-30-00 |
US $22.25 |
||
|
3
|
3
2CX-283A3-20-00 Graphic, Under Cover 3Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2CX-283A3-20-00 |
US $14.99 |
||
|
4
|
4
5JJ-2153E-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5JJ-2153E-10-00 |
from US $26.12 |
||
|
4
|
4
2SG-2153B-20-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
2SG-2153B-20-00 |
from US $13.74 |
||
|
4
|
4
992-47001-80-00 Emblem, Yamahafor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
992-47001-80-00 |
from US $10.20 |
||
|
5
|
5
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
5
|
5
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
6
|
6
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
7
|
7
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
8
|
8
13S-2838G-00-00 Seat 1 |
13S-2838G-00-00 |
from US $28.19 |
||
|
9
|
9
905-20500-02-00 Damper, Plate |
905-20500-02-00 |
from US $3.40 |
||
|
10
|
10
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
11
|
11
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
11
|
11
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
12
|
12
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
13
|
13
13S-W283U-N0-PC Panel Assy 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
13S-W283U-N0-PC |
US $422.37 |
||
|
13
|
13
13S-W283U-P0-P9 Panel Assy 1Use for Color Black Metallic X SMX / 0903 |
13S-W283U-P0-P9 |
US $422.37 |
||
|
13
|
13
13S-W283U-R0-P1 Panel Assy 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-W283U-R0-P1 |
US $422.37 |
||
|
14
|
14
2CX-28391-50-00 Graphic 1Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2CX-28391-50-00 |
from US $97.68 |
||
|
14
|
14
2CX-28391-60-00 Graphic 1Use for Color Black Metallic X SMX / 0903 |
2CX-28391-60-00 |
from US $25.93 |
||
|
14
|
14
2CX-28391-70-00 Graphic 1Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-28391-70-00 |
US $34.78 |
||
|
15
|
15
2CX-2839B-10-00 Emblem 3D3D Use for Color Black Metallic X SMX / 0903 |
2CX-2839B-10-00 |
from US $60.93 |
||
|
15
|
15
2CX-28328-30-00 Emblemfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-28328-30-00 |
US $10.42 |
||
|
16
|
16
2CX-28392-60-00 Graphic 2Use for Color Black Metallic X SMX / 0903 |
2CX-28392-60-00 |
from US $28.62 |
||
|
17
|
17
13S-28219-00-00 Cover 1 |
13S-28219-00-00 |
from US $8.22 |
||
|
18
|
18
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
19
|
19
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
20
|
20
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
21
|
21
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
21
|
21
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
22
|
22
13S-28415-00-00 Damper 1 |
13S-28415-00-00 |
from US $1.70 |
||
|
23
|
23
905-20500-01-00 Damper, Plate |
905-20500-01-00 |
from US $1.56 |
||
|
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
24
|
24
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
25
|
25
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
26
|
26
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
26
|
26
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
27
|
27
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
28
|
28
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
29
|
29
13S-2137U-00-00 Guide, Air 1 |
13S-2137U-00-00 |
from US $26.49 |
||
|
30
|
30
13S-2137K-00-00 Guide, Air 3 |
13S-2137K-00-00 |
from US $9.21 |
||
|
31
|
31
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
31
|
31
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
32
|
32
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
33
|
33
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
34
|
34
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
35
|
35
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
36
|
36
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
36
|
36
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
37
|
37
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
37
|
37
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
38
|
38
13S-W2839-T0-P7 Under Cover Comp. 2for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
13S-W2839-T0-P7 |
from US $364.19 |
||
|
38
|
38
13S-W2839-R0-P0 Under Cover Comp. 2for Color MAT BLACK 2 MBL2 / 0582 |
13S-W2839-R0-P0 |
US $483.50 |
||
|
38
|
38
13S-W2839-S0-P3 Under Cover Comp. 2for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-W2839-S0-P3 |
from US $360.63 |
||
|
39
|
39
2CX-283A2-30-00 Graphic, Under Cover 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-283A2-30-00 |
US $22.25 |
||
|
40
|
40
2CX-283A4-20-00 Graphic, Under Cover 4Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2CX-283A4-20-00 |
US $15.19 |
||
|
41
|
41
5JJ-2153E-10-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5JJ-2153E-10-00 |
from US $26.12 |
||
|
41
|
41
992-47001-80-00 Emblem, Yamahafor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
992-47001-80-00 |
from US $10.20 |
||
|
41
|
41
2SG-2153B-20-00 Emblem, Yamahafor Color Black Metallic X SMX / 0903 |
2SG-2153B-20-00 |
from US $13.74 |
||
|
42
|
42
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
42
|
42
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
43
|
43
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
44
|
44
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
45
|
45
13S-2848K-00-00 Seat 2 |
13S-2848K-00-00 |
from US $28.19 |
||
|
46
|
46
13S-2847R-00-00 Damper 1010 |
13S-2847R-00-00 |
from US $12.47 |
||
|
47
|
47
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
48
|
48
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
48
|
48
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
49
|
49
13S-W283V-N0-PC Panel Assy 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
13S-W283V-N0-PC |
from US $422.37 |
||
|
49
|
49
13S-W283V-P0-P9 Panel Assy 2Use for Color Black Metallic X SMX / 0903 |
13S-W283V-P0-P9 |
US $422.37 |
||
|
49
|
49
13S-W283V-R0-P1 Panel Assy 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
13S-W283V-R0-P1 |
US $316.55 |
||
|
50
|
50
2CX-28392-50-00 Graphic 2Use for Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
2CX-28392-50-00 |
from US $97.68 |
||
|
50
|
50
2CX-28393-60-00 Graphic 3Use for Color Black Metallic X SMX / 0903 |
2CX-28393-60-00 |
from US $25.93 |
||
|
50
|
50
2CX-28392-70-00 Graphic 2Use for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-28392-70-00 |
US $34.78 |
||
|
51
|
51
2CX-2839B-10-00 Emblem 3D3D Use for Color Black Metallic X SMX / 0903 |
2CX-2839B-10-00 |
from US $60.93 |
||
|
51
|
51
2CX-28328-30-00 Emblemfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
2CX-28328-30-00 |
US $10.42 |
||
|
52
|
52
2CX-28394-60-00 Graphic 4Use for Color Black Metallic X SMX / 0903 |
2CX-28394-60-00 |
from US $28.62 |
||
|
53
|
53
13S-28229-00-00 Cover 2 |
13S-28229-00-00 |
from US $8.22 |
||
|
54
|
54
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.34 |
||
|
55
|
55
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
55
|
55
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
56
|
56
902-69070-07-00 Rivet |
902-69070-07-00 |
from US $1.34 |
||
|
57
|
57
901-10052-01-00
Bolt, Hexagon Socket Head
|
901-10052-01-00 |
— | ||
| replacement | |||||
|
57
|
57
90111-05059-00 BOLT,HEX. SOCKET BUTTON |
90111-05059-00 |
from US $1.21 |
||
|
58
|
58
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $1.66 |
||
|
59
|
59
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
59
|
59
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
60
|
60
90109-06207-00 Bolt |
90109-06207-00 |
from US $6.52 |
||
|
61
|
61
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
62
|
62
13S-2836G-00-00 Bracket 4 |
13S-2836G-00-00 |
from US $13.74 |
||
|
63
|
63
90179-06059-00 Nut |
90179-06059-00 |
from US $3.83 |
||
|
64
|
64
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
64
|
64
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
64
|
64
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
65
|
65
13S-2137V-00-00 Guide, Air 2 |
13S-2137V-00-00 |
from US $26.49 |
||
|
66
|
66
13S-2137L-00-00 Guide, Air 4 |
13S-2137L-00-00 |
from US $9.21 |
||
|
67
|
67
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.42 |
||
| replacement | |||||
|
67
|
67
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
68
|
68
90480-01558-00 Grommet |
90480-01558-00 |
from US $1.56 |
||
|
69
|
69
13S-28217-00-00 Damper 1 |
13S-28217-00-00 |
from US $1.84 |
||
|
70
|
70
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
71
|
71
90269-06081-00 Rivet |
90269-06081-00 |
from US $1.34 |
||
|
72
|
72
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
72
|
72
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
73
|
73
97702-50020-00 Screw, Tapping |
97702-50020-00 |
from US $1.56 |
||
| replacement | |||||
|
73
|
73
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
74
|
74
13S-2836L-00-00 Panel, Inner 2 |
13S-2836L-00-00 |
from US $17.57 |
||
|
75
|
75
13S-2836M-00-00 Panel, Inner 3 |
13S-2836M-00-00 |
from US $17.57 |
||
|
76
|
76
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
77
|
77
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
