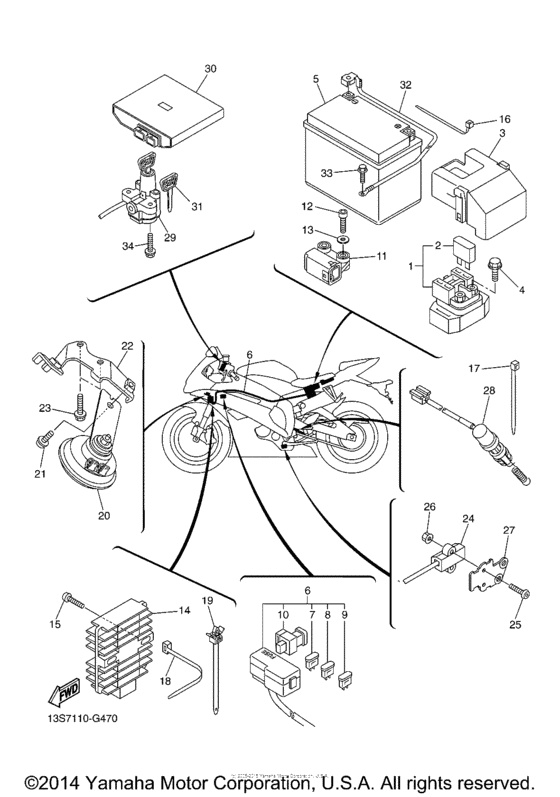

Electrical (2) Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2015
- Model code
- 2CXK
- Sales region
- United States (California)
- Базовая модель
- YZFR6FCL
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-81940-00-00 Starter Relay Assy (Rc19-054) |
2C0-81940-00-00 |
from US $79.58 |
||
|
2
|
2
36Y-82151-00-00 Fuse (15A-Blue)15A-BLUE |
36Y-82151-00-00 |
from US $2.98 |
||
|
3
|
3
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
4
|
4
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
5
|
5
5VY-82100-00-00
Ytz10S Yuasa Battery
|
5VY-82100-00-00 |
— | ||
| replacements | |||||
|
5
|
5
YTZ-10S00-00-00
Bat Ytz10S (Ptz10S) Yu
|
YTZ-10S00-00-00 |
— | ||
|
5
|
5
BTY-GTZ10-S0-00
Battery gtz10s
|
BTY-GTZ10-S0-00 |
— | ||
|
6
|
6
13S-82590-10-00 Wire Harness Assy |
13S-82590-10-00 |
from US $695.64 |
||
|
7
|
7
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
7
|
7
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.98 |
||
|
8
|
8
5JJ-82151-00-00 Fuse (7.5A-Bl)7.5A-BL |
5JJ-82151-00-00 |
from US $2.98 |
||
|
9
|
9
5JJ-82151-30-00
Fuse (10A-Bl)
10A |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
9
|
9
67F-82151-40-00 Fuse (10A)10A |
67F-82151-40-00 |
from US $1.98 |
||
|
10
|
10
5JW-82151-10-00 Fuse (50A)50A |
5JW-82151-10-00 |
from US $9.63 |
||
|
11
|
11
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
11
|
11
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
US $103.09 |
||
|
12
|
12
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
|
13
|
13
90201-042E0-00 Washer, Plate |
90201-042E0-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90201-043H7-00 Washer, Plate (34L) |
90201-043H7-00 |
from US $1.70 |
||
|
14
|
14
4XY-81960-00-00 Rectifier & Regulator Assy |
4XY-81960-00-00 |
from US $93.90 |
||
|
15
|
15
92012-06025-00 Bolt, Button Head |
92012-06025-00 |
from US $1.42 |
||
|
16
|
16
90465-15011-00 Clamp |
90465-15011-00 |
from US $1.84 |
||
|
17
|
17
90464-32060-00 Band |
90464-32060-00 |
from US $1.28 |
||
| replacement | |||||
|
17
|
17
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
18
|
18
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
18
|
18
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
19
|
19
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
19
|
19
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.35 |
||
|
20
|
20
4TH-83371-00-00 Horn |
4TH-83371-00-00 |
from US $50.98 |
||
| replacement | |||||
|
20
|
20
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
21
|
21
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
22
|
22
13S-23377-00-00 Bracket, Horn |
13S-23377-00-00 |
from US $18.70 |
||
|
23
|
23
95822-06020-00 Bolt, Flange |
95822-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
23
|
23
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
24
|
24
13S-82566-70-00 Switch, Side Stand |
13S-82566-70-00 |
from US $84.42 |
||
|
25
|
25
92012-05025-00 Bolt, Button Head |
92012-05025-00 |
from US $1.56 |
||
|
26
|
26
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
26
|
26
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
27
|
27
2C0-27961-00-00 Bracket, Sensor 1 |
2C0-27961-00-00 |
from US $18.70 |
||
|
28
|
28
13S-82530-00-00 Stop Switch Assy |
13S-82530-00-00 |
from US $20.40 |
||
| replacements | |||||
|
28
|
28
13S-82530-01-00 Stop Switch Assy |
13S-82530-01-00 |
from US $20.40 |
||
|
28
|
28
13S-82530-02-00 Stop Switch Assy |
13S-82530-02-00 |
US $49.19 |
||
|
29
|
29
2C0-82501-10-00 Main Switch Steering Lock |
2C0-82501-10-00 |
from US $207.24 |
||
|
30
|
30
13S-8591A-H0-00 Engine Control Unit Assy |
13S-8591A-H0-00 |
US $2,695.45 |
||
| replacement | |||||
|
30
|
30
13S-8591A-H1-00 Engine Control Unit Assy |
13S-8591A-H1-00 |
US $2,526.80 |
||
|
31
|
31
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $11.19 |
||
|
32
|
32
2C0-82116-00-00 Wire, Minus Lead |
2C0-82116-00-00 |
from US $17 |
||
|
33
|
33
91380-06012-00 Bolt |
91380-06012-00 |
from US $1.42 |
||
|
34
|
34
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.70 |
||
| replacement | |||||
|
34
|
34
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
