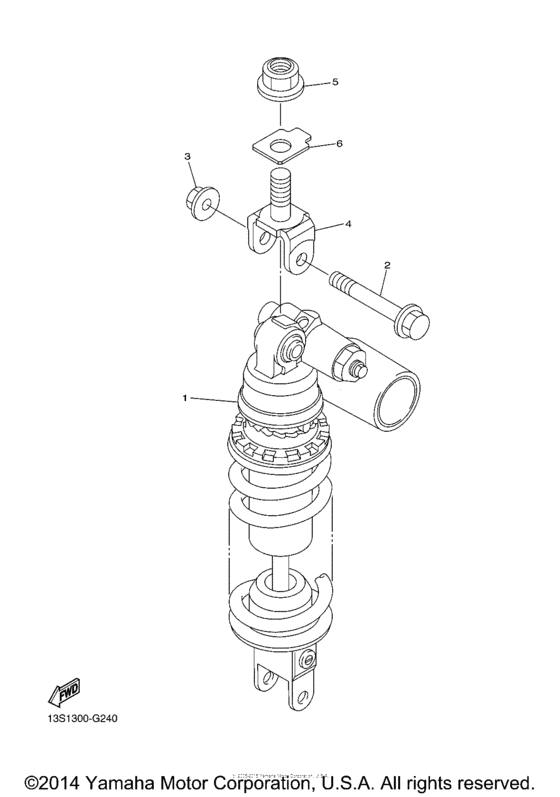

Rear suspension Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2015
- Model code
- 2CXK
- Sales region
- United States (California)
- Базовая модель
- YZFR6FCL
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13S-22210-82-00 Shock Absorber Assy, RearUR FOR BWC1 |
13S-22210-82-00 |
US $977.60 |
||
|
1
|
1
13S-22210-62-00
Shock Absorber Assy, Rear
UR FOR DPBMC, SMX |
13S-22210-62-00 |
— | ||
|
2
|
2
90105-10402-00 Bolt, Flange |
90105-10402-00 |
from US $3.83 |
||
|
3
|
3
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
4
|
4
13S-22219-00-00 Bracket, Upper |
13S-22219-00-00 |
from US $92.29 |
||
|
5
|
5
95602-14200-00 Nut, Self-Locking |
95602-14200-00 |
from US $7.51 |
||
| replacement | |||||
|
5
|
5
956-07142-00-00 Nut, Self-Locking |
956-07142-00-00 |
from US $7.48 |
||
|
6
|
6
13S-22243-00-00 Washer 1 |
13S-22243-00-00 |
from US $3.68 |
||
