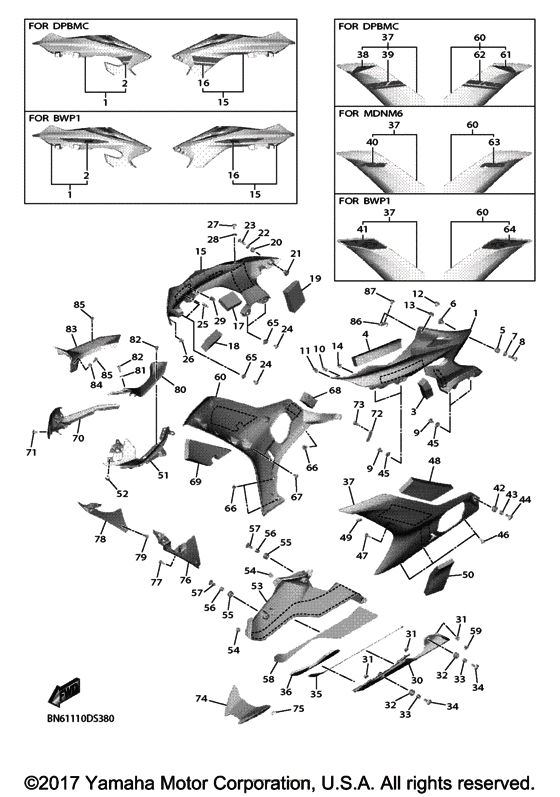

Cowling 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN61
- Sales region
- USA
- Базовая модель
- YZFR6HB
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BN6-W217V-00-P0 COVER ASSY 7Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-W217V-00-P0 |
from US $342.64 |
||
|
1
|
1
BN6-2117V-00-P1 COVER 7UR FOR MDNM6 |
BN6-2117V-00-P1 |
from US $150.59 |
||
|
1
|
1
BN6-W217V-10-P2 COVER ASSY 7UR FOR BWP1 |
BN6-W217V-10-P2 |
from US $182.37 |
||
|
2
|
2
BN6-28398-00-00 GRAPHIC 5Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28398-00-00 |
from US $18.28 |
||
|
2
|
2
BN6-28398-10-00 GRAPHIC 5UR FOR BWP1 |
BN6-28398-10-00 |
from US $26.92 |
||
|
3
|
3
905-20300-02-00 Damper, Plate |
905-20300-02-00 |
from US $1.56 |
||
|
4
|
4
7CH-22889-00-00 Seal 12 |
7CH-22889-00-00 |
from US $1.70 |
||
|
5
|
5
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
6
|
6
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
7
|
7
90201-07081-00 Washer, Plate |
90201-07081-00 |
from US $1.28 |
||
|
8
|
8
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
9
|
9
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
10
|
10
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
11
|
11
904-64070-18-00 Clamp |
904-64070-18-00 |
from US $0.90 |
||
|
12
|
12
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.56 |
||
|
13
|
13
90201-060H9-00 Washer, Plate |
90201-060H9-00 |
from US $2.69 |
||
|
14
|
14
90468-04001-00 Clip |
90468-04001-00 |
from US $0.99 |
||
|
15
|
15
BN6-W217W-00-P0 COVER ASSY 8Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-W217W-00-P0 |
from US $332.97 |
||
|
15
|
15
BN6-2117W-00-P1 COVER 8UR FOR MDNM6 |
BN6-2117W-00-P1 |
from US $150.59 |
||
|
15
|
15
BN6-W217W-10-P2 COVER ASSY 8UR FOR BWP1 |
BN6-W217W-10-P2 |
from US $178.23 |
||
|
16
|
16
BN6-28399-00-00 GRAPHIC 6Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28399-00-00 |
from US $18.28 |
||
|
16
|
16
BN6-28399-10-00 GRAPHIC 6UR FOR BWP1 |
BN6-28399-10-00 |
from US $26.92 |
||
|
17
|
17
90520-60001-00 Damper, Plate |
90520-60001-00 |
from US $1.35 |
||
|
18
|
18
90520-30008-00 DAMPER, PLATE |
90520-30008-00 |
from US $1.35 |
||
|
19
|
19
7CH-2289T-00-00 Seal 26 |
7CH-2289T-00-00 |
from US $1.70 |
||
|
20
|
20
90480-12613-00 Grommet |
90480-12613-00 |
from US $22.95 |
||
|
21
|
21
90387-067K8-00 Collar |
90387-067K8-00 |
from US $2.69 |
||
|
22
|
22
90201-07081-00 Washer, Plate |
90201-07081-00 |
from US $1.28 |
||
|
23
|
23
90111-06063-00 Bolt, Hex. Socket Button |
90111-06063-00 |
from US $1.84 |
||
|
24
|
24
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
25
|
25
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
26
|
26
904-64070-18-00 Clamp |
904-64070-18-00 |
from US $0.90 |
||
|
27
|
27
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.56 |
||
|
28
|
28
90201-060H9-00 Washer, Plate |
90201-060H9-00 |
from US $2.69 |
||
|
29
|
29
90468-04001-00 Clip |
90468-04001-00 |
from US $0.99 |
||
|
30
|
30
BN6-28385-00-P0 COVER, UNDERUse for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28385-00-P0 |
from US $100.72 |
||
|
30
|
30
BN6-28385-00-P1 COVER, UNDERUR FOR MDNM6 |
BN6-28385-00-P1 |
from US $100.72 |
||
|
31
|
31
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
31
|
31
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
32
|
32
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
33
|
33
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
34
|
34
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
35
|
35
BN6-2838G-00-00 SEAT 1 |
BN6-2838G-00-00 |
from US $21.39 |
||
|
36
|
36
BN6-2836T-00-00 DAMPER, LOCATING 1 |
BN6-2836T-00-00 |
from US $4.25 |
||
|
37
|
37
BN6-W283U-00-P0 PANEL ASSY 1Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-W283U-00-P0 |
from US $357.83 |
||
|
37
|
37
BN6-W283U-10-P1 PANEL ASSY 1UR FOR MDNM6 |
BN6-W283U-10-P1 |
from US $342.64 |
||
|
37
|
37
BN6-W283U-20-P2 PANEL ASSY 1UR FOR BWP1 |
BN6-W283U-20-P2 |
from US $357.83 |
||
|
38
|
38
BN6-2173X-00-00 GRAPHIC 7Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-2173X-00-00 |
from US $18.23 |
||
|
39
|
39
BN6-28391-00-00 GRAPHIC 1Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28391-00-00 |
from US $32.59 |
||
|
40
|
40
BN6-28328-10-00 EMBLEMUR FOR MDNM6 |
BN6-28328-10-00 |
from US $11.48 |
||
|
41
|
41
BN6-28391-10-00 GRAPHIC 1UR FOR BWP1 |
BN6-28391-10-00 |
from US $36.61 |
||
|
42
|
42
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
43
|
43
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
44
|
44
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
45
|
45
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
45
|
45
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
46
|
46
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
47
|
47
90269-06083-00 Rivet |
90269-06083-00 |
from US $1.56 |
||
| replacement | |||||
|
47
|
47
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
48
|
48
BN6-28416-00-00 DAMPER 2 |
BN6-28416-00-00 |
from US $4.53 |
||
|
49
|
49
5YT-24665-00-00 Damper |
5YT-24665-00-00 |
from US $1.70 |
||
|
50
|
50
90520-20013-00 DAMPER, PLATE |
90520-20013-00 |
from US $2.69 |
||
|
51
|
51
BN6-28219-00-00 COVER 1 |
BN6-28219-00-00 |
from US $22.39 |
||
|
52
|
52
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
53
|
53
BN6-28395-00-P0 COVER, UNDER 2Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28395-00-P0 |
from US $100.72 |
||
|
53
|
53
BN6-28395-00-P1 COVER, UNDER 2UR FOR MDNM6 |
BN6-28395-00-P1 |
from US $100.72 |
||
|
54
|
54
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
54
|
54
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
55
|
55
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
56
|
56
903-87062-60-00 Collar |
903-87062-60-00 |
from US $1.56 |
||
|
57
|
57
901-11060-40-00 Bolt, Hex. Socket Button |
901-11060-40-00 |
from US $2.32 |
||
|
58
|
58
BN6-2848K-00-00 SEAT 2 |
BN6-2848K-00-00 |
from US $21.39 |
||
|
59
|
59
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
60
|
60
BN6-W283V-00-P0 PANEL ASSY 2Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-W283V-00-P0 |
from US $357.83 |
||
|
60
|
60
BN6-W283V-10-P1 PANEL ASSY 2UR FOR MDNM6 |
BN6-W283V-10-P1 |
from US $342.64 |
||
|
60
|
60
BN6-W283V-20-P2 PANEL ASSY 2UR FOR BWP1 |
BN6-W283V-20-P2 |
from US $357.83 |
||
|
61
|
61
BN6-2173Y-00-00 GRAPHIC 8Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-2173Y-00-00 |
from US $22.10 |
||
|
62
|
62
BN6-28392-00-00 GRAPHIC 2Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-28392-00-00 |
from US $32.59 |
||
|
63
|
63
BN6-28338-10-00 EMBLEMUR FOR MDNM6 |
BN6-28338-10-00 |
from US $11.48 |
||
|
64
|
64
BN6-28392-10-00 GRAPHIC 2UR FOR BWP1 |
BN6-28392-10-00 |
from US $36.61 |
||
|
65
|
65
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
65
|
65
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
66
|
66
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
67
|
67
90269-06083-00 Rivet |
90269-06083-00 |
from US $1.56 |
||
| replacement | |||||
|
67
|
67
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.34 |
||
|
68
|
68
90520-30007-00 DAMPER, PLATE |
90520-30007-00 |
from US $1.28 |
||
|
69
|
69
BN6-28435-00-00 DAMPER 4 |
BN6-28435-00-00 |
from US $4.96 |
||
|
70
|
70
BN6-28229-00-00 COVER 2 |
BN6-28229-00-00 |
from US $22.39 |
||
|
71
|
71
901-11050-45-00 Bolt, Hex. Socket Button |
901-11050-45-00 |
from US $1.42 |
||
|
72
|
72
BN6-2836G-00-00 BRACKET 4 |
BN6-2836G-00-00 |
from US $3.40 |
||
|
73
|
73
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
73
|
73
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
73
|
73
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
74
|
74
BN6-2836K-00-00 PANEL, INNER 1 |
BN6-2836K-00-00 |
from US $32.16 |
||
|
75
|
75
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
75
|
75
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
76
|
76
BN6-2836L-00-00 PANEL, INNER 2 |
BN6-2836L-00-00 |
from US $18.84 |
||
|
77
|
77
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
78
|
78
BN6-2836M-00-00 PANEL, INNER 3 |
BN6-2836M-00-00 |
from US $18.84 |
||
|
79
|
79
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
80
|
80
BN6-2837L-00-00 PANEL, CONSOLE 1 |
BN6-2837L-00-00 |
from US $16.86 |
||
|
81
|
81
5SL-84753-00-00 Damper |
5SL-84753-00-00 |
from US $1.70 |
||
|
82
|
82
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
83
|
83
BN6-2837M-00-00 PANEL, CONSOLE 2 |
BN6-2837M-00-00 |
from US $16.86 |
||
|
84
|
84
5SL-84753-00-00 Damper |
5SL-84753-00-00 |
from US $1.70 |
||
|
85
|
85
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
86
|
86
BN6-28357-00-00 STAY 2 |
BN6-28357-00-00 |
from US $6.52 |
||
|
87
|
87
901-11050-03-00 Bolt, Hex. Socket Button |
901-11050-03-00 |
from US $1.70 |
||
