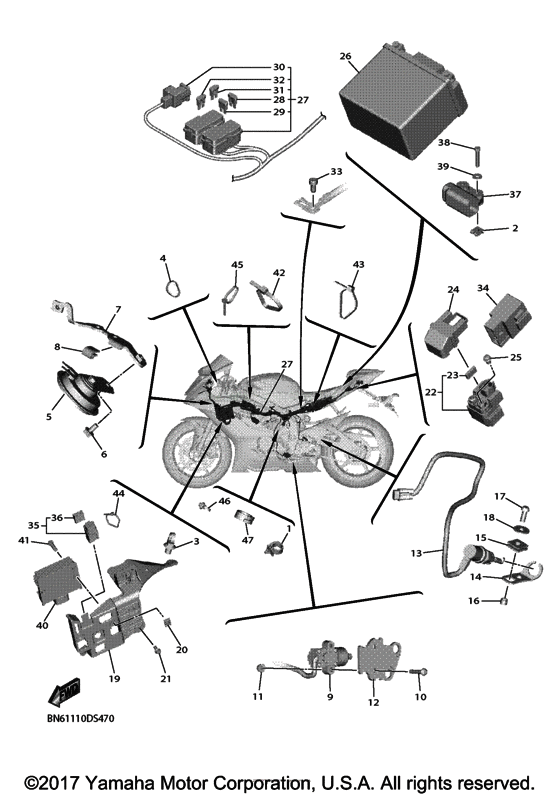

Electrical 2 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN61
- Sales region
- USA
- Базовая модель
- YZFR6HB
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
904-64170-08-00 Clamp |
904-64170-08-00 |
from US $1.42 |
||
|
2
|
2
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.98 |
||
|
3
|
3
90464-30010-00 CLAMP |
90464-30010-00 |
from US $1.28 |
||
|
4
|
4
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
5
|
5
B67-83371-00-00 HORN |
B67-83371-00-00 |
from US $38.96 |
||
|
6
|
6
95D32-06012-00 BLOT, FLANGE DEEP RE |
95D32-06012-00 |
from US $1.07 |
||
|
7
|
7
BN6-23377-00-00 BRACKET, HORN |
BN6-23377-00-00 |
from US $18.28 |
||
|
8
|
8
5RU-2139X-00-00 Damper |
5RU-2139X-00-00 |
from US $1.70 |
||
|
9
|
9
BN6-82566-00-00 SWITCH, SIDE STAND |
BN6-82566-00-00 |
from US $95.05 |
||
|
10
|
10
92012-05025-00 Bolt, Button Head |
92012-05025-00 |
from US $1.56 |
||
|
11
|
11
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
12
|
12
2C0-27961-00-00 Bracket, Sensor 1 |
2C0-27961-00-00 |
from US $18.70 |
||
|
13
|
13
BN6-82530-00-00 Stop Switch Assy |
BN6-82530-00-00 |
from US $26.07 |
||
|
14
|
14
13S-2144G-00-00 Stay, Stop Switch |
13S-2144G-00-00 |
from US $4.43 |
||
|
15
|
15
90480-12607-00 Grommet |
90480-12607-00 |
from US $2.55 |
||
|
16
|
16
90387-06023-00 Collar 8121444900 |
90387-06023-00 |
from US $1.28 |
||
|
17
|
17
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
18
|
18
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
19
|
19
BN6-2836H-00-00 BRACKET 5 |
BN6-2836H-00-00 |
from US $24.94 |
||
|
20
|
20
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
21
|
21
95D02-06014-00 BOLT, FLANGE DEEP RE |
95D02-06014-00 |
from US $0.38 |
||
|
22
|
22
2CR-81940-00-00 Starter Relay Assy |
2CR-81940-00-00 |
from US $53.74 |
||
|
23
|
23
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $1.66 |
||
|
24
|
24
5SL-82119-10-00 Cover, Lead Wire |
5SL-82119-10-00 |
from US $4.39 |
||
|
25
|
25
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
26
|
26
5TJ-82100-01-00
Ytz7S He Yuasa Battery
|
5TJ-82100-01-00 |
— | ||
| replacements | |||||
|
26
|
26
YTZ-7SHE0-00-00
YB16CLB YUASA BATTERY
|
YTZ-7SHE0-00-00 |
— | ||
|
26
|
26
BTY-GTZ7S-00-00
Battery gtz7s
|
BTY-GTZ7S-00-00 |
— | ||
|
26
|
26
YTZ-7S000-00-00
Battery Ytz7S (Ptz7S) Yu
|
YTZ-7S000-00-00 |
— | ||
|
27
|
27
BN6-82590-10-00 WIRE HARNESS ASSY |
BN6-82590-10-00 |
US $1,406.97 |
||
| replacement | |||||
|
27
|
27
BN6-82590-11-00 |
BN6-82590-11-00 |
US $1,672.12 |
||
|
28
|
28
5JJ-82151-10-00 Fuse (15A-Bl) |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
28
|
28
67F-82151-50-00 Fuse (15A) |
67F-82151-50-00 |
from US $1.98 |
||
|
29
|
29
5JJ-82151-30-00
Fuse (10A-Bl)
|
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
29
|
29
67F-82151-40-00 Fuse (10A) |
67F-82151-40-00 |
from US $1.98 |
||
|
30
|
30
5JW-82151-10-00 Fuse (50A) |
5JW-82151-10-00 |
from US $9.63 |
||
|
31
|
31
5JJ-82151-00-00 Fuse (7.5A-Bl) |
5JJ-82151-00-00 |
from US $2.98 |
||
|
32
|
32
5JJ-82151-80-00 Fuse (2A-Bl) |
5JJ-82151-80-00 |
from US $2.32 |
||
|
33
|
33
91380-06012-00 Bolt |
91380-06012-00 |
from US $1.42 |
||
|
34
|
34
5VK-81950-40-00
Relay Assy (5Vk-40)
|
5VK-81950-40-00 |
— | ||
| replacements | |||||
|
34
|
34
5VK-81950-41-00 Relay Assy |
5VK-81950-41-00 |
from US $65.89 |
||
|
34
|
34
5VK-81950-42-00 RELAY ASSY |
5VK-81950-42-00 |
from US $52.99 |
||
|
35
|
35
1TP-81950-00-00 Relay Assy (1Tp-00) |
1TP-81950-00-00 |
from US $9.49 |
||
|
36
|
36
5EA-81952-00-00 Holder, Relay |
5EA-81952-00-00 |
from US $4.39 |
||
|
37
|
37
5PS-82576-01-00
Sensor, Lean Angle
|
5PS-82576-01-00 |
— | ||
| replacement | |||||
|
37
|
37
5PS-82576-02-00 Sensor, Lean Angle |
5PS-82576-02-00 |
US $103.09 |
||
|
38
|
38
91317-04025-00 Bolt |
91317-04025-00 |
from US $1.42 |
||
|
39
|
39
90201-042E0-00 Washer, Plate |
90201-042E0-00 |
from US $1.70 |
||
| replacement | |||||
|
39
|
39
90201-043H7-00 Washer, Plate (34L) |
90201-043H7-00 |
from US $1.70 |
||
|
40
|
40
BN6-81960-00-00 RECTIFIER & REGULATO |
BN6-81960-00-00 |
from US $151.98 |
||
|
41
|
41
92012-06020-00 Bolt, Button Head |
92012-06020-00 |
from US $1.56 |
||
|
42
|
42
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
43
|
43
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
44
|
44
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
45
|
45
90464-13077-00 Clamp |
90464-13077-00 |
from US $1.70 |
||
| replacement | |||||
|
45
|
45
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
46
|
46
90464-30011-00 Clamp |
90464-30011-00 |
from US $1.35 |
||
|
47
|
47
90464-13227-00 Clamp |
90464-13227-00 |
from US $1.70 |
||
