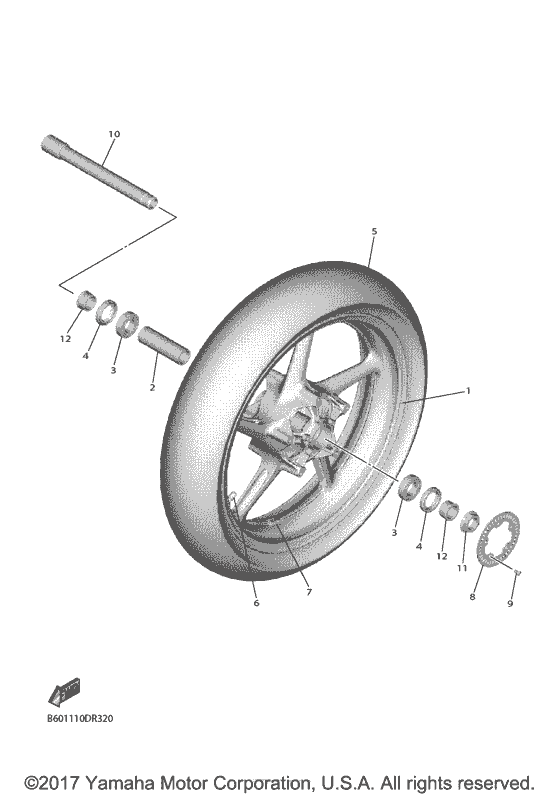

Front wheel Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN61
- Sales region
- USA
- Базовая модель
- YZFR6HB
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B60-25168-00-98 Cast Wheel, FrontUR FOR MDNM6 |
B60-25168-00-98 |
from US $671.88 |
||
|
1
|
1
B60-25168-00-P1 CAST WHEEL, FRONTUR FOR BWP1 |
B60-25168-00-P1 |
from US $671.88 |
||
|
1
|
1
B60-25168-00-P0 CAST WHEEL, FRONTUR FOR DPBMC |
B60-25168-00-P0 |
from US $671.88 |
||
|
2
|
2
B60-25117-00-00 Spacer, Bearing |
B60-25117-00-00 |
from US $23.80 |
||
|
3
|
3
933-06005-07-00 Bearing |
933-06005-07-00 |
from US $20.40 |
||
|
4
|
4
931-06310-01-00 Oil Seal |
931-06310-01-00 |
from US $4.53 |
||
|
5
|
5
94112-17139-00 TIREUR DUNLOP |
94112-17139-00 |
US $332.59 |
||
|
5
|
5
94112-17138-00 TIREUR BRIDGESTONE |
94112-17138-00 |
US $356.74 |
||
|
6
|
6
939-00000-30-00 Valve, Rim (Tr412)TAIHEIYO |
939-00000-30-00 |
from US $7.65 |
||
|
7
|
7
5MT-25398-00-00 Balancer, Wheel (10G)UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
7
|
7
5MT-25398-10-00 Balancer, Wheel (20G)UN |
5MT-25398-10-00 |
from US $7.65 |
||
|
7
|
7
5MT-25398-20-00 Balancer, Wheel (30G)UN |
5MT-25398-20-00 |
from US $7.65 |
||
|
8
|
8
1SD-2517G-00-00 Rotor, Sensor |
1SD-2517G-00-00 |
from US $98.78 |
||
|
9
|
9
901-49050-29-00
Screw
|
901-49050-29-00 |
— | ||
| replacement | |||||
|
9
|
9
901-49050-30-00 Screw |
901-49050-30-00 |
from US $1.35 |
||
|
10
|
10
2CR-25181-00-00 Axle, Wheel |
2CR-25181-00-00 |
from US $67.15 |
||
|
11
|
11
901-79240-04-00 Nut |
901-79240-04-00 |
from US $12.75 |
||
|
12
|
12
903-87250-32-00 Collar |
903-87250-32-00 |
from US $13.60 |
||
