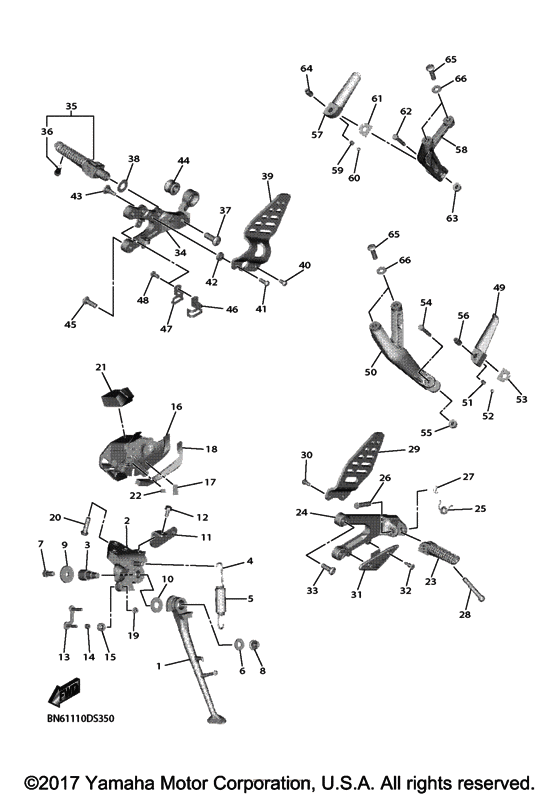

Stand & Footrest Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN61
- Sales region
- USA
- Базовая модель
- YZFR6HB
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-27311-10-00 Stand, Side |
2C0-27311-10-00 |
from US $165.79 |
||
|
2
|
2
2C0-27321-10-00 Bracket, Side Stand |
2C0-27321-10-00 |
from US $197.57 |
||
|
3
|
3
2C0-27351-00-00 Guide, Side Stand |
2C0-27351-00-00 |
from US $32.16 |
||
|
4
|
4
90506-18008-00 Spring, Tension |
90506-18008-00 |
from US $8.50 |
||
|
5
|
5
90445-19002-00 Hose (L60) |
90445-19002-00 |
from US $4.11 |
||
|
6
|
6
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
7
|
7
90101-08662-00 Bolt |
90101-08662-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
97017-08020-00 Bolt |
97017-08020-00 |
from US $1.66 |
||
|
8
|
8
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
9
|
9
90201-08050-00 Washer, Plate |
90201-08050-00 |
from US $4.39 |
||
|
10
|
10
90201-146F9-00 Washer, Plate |
90201-146F9-00 |
from US $1.84 |
||
|
11
|
11
13S-2836F-00-00 Bracket 3 |
13S-2836F-00-00 |
from US $12.61 |
||
|
12
|
12
90105-06020-00 Bolt, Flange |
90105-06020-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
12
|
12
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
13
|
13
BN6-27263-00-00 BRACKET 1 |
BN6-27263-00-00 |
from US $7.37 |
||
|
14
|
14
90387-05025-00 Collar |
90387-05025-00 |
from US $3.83 |
||
|
15
|
15
90480-11006-00 Grommet |
90480-11006-00 |
from US $2.41 |
||
|
16
|
16
BN6-27453-00-00 COVER 1 |
BN6-27453-00-00 |
from US $12.75 |
||
|
17
|
17
2C0-27414-00-00 Damper, Footrest |
2C0-27414-00-00 |
from US $1.70 |
||
|
18
|
18
90520-10031-00 DAMPER, PLATE |
90520-10031-00 |
from US $1.28 |
||
|
19
|
19
90185-05009-00 Nut, U Flange |
90185-05009-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
20
|
20
90111-08065-00 Bolt, Button Head |
90111-08065-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
92012-08030-00 Bolt, Button Head |
92012-08030-00 |
from US $1.56 |
||
|
21
|
21
2C0-28425-00-00 Damper 3 |
2C0-28425-00-00 |
from US $3.26 |
||
|
22
|
22
2C0-21485-00-00 Damper, Rubber 1 |
2C0-21485-00-00 |
from US $1.34 |
||
|
23
|
23
1KB-27451-00-00 Footrest |
1KB-27451-00-00 |
from US $13.56 |
||
|
24
|
24
2C0-27442-10-00 Bracket 2 |
2C0-27442-10-00 |
from US $62.59 |
||
|
25
|
25
90508-18134-00 Spring, Torsion |
90508-18134-00 |
from US $2.41 |
||
|
26
|
26
90240-08084-00 Pin |
90240-08084-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
91701-08038-00 Pin |
91701-08038-00 |
from US $1.56 |
||
|
27
|
27
91402-25015-00 Pin. Cotter |
91402-25015-00 |
US $1.42 |
||
| replacement | |||||
|
27
|
27
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
28
|
28
901-09082-33-00 Bolt |
901-09082-33-00 |
from US $2.83 |
||
| replacement | |||||
|
28
|
28
901-09082-35-00 BOLT |
901-09082-35-00 |
from US $2.83 |
||
|
29
|
29
2C0-27445-10-00 Plate 1 |
2C0-27445-10-00 |
from US $50.70 |
||
|
30
|
30
901-49062-33-00
Bolt, Button Head
|
901-49062-33-00 |
— | ||
| replacement | |||||
|
30
|
30
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
31
|
31
2C0-27491-00-00 Protector |
2C0-27491-00-00 |
from US $3.26 |
||
|
32
|
32
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
33
|
33
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
34
|
34
2C0-27443-10-00 Bracket 3 |
2C0-27443-10-00 |
from US $62.59 |
||
|
35
|
35
BN6-27420-00-00 FRONT FOOTREST ASSY |
BN6-27420-00-00 |
from US $109.15 |
||
|
36
|
36
901-09086-F8-00
Bolt
|
901-09086-F8-00 |
— | ||
| replacement | |||||
|
36
|
36
901-09082-25-00 Bolt |
901-09082-25-00 |
from US $3.40 |
||
|
37
|
37
90109-103A9-00 Bolt,hex. Socket But |
90109-103A9-00 |
from US $8.22 |
||
| replacement | |||||
|
37
|
37
901-11100-17-00 Bolt,hex. Socket Button |
901-11100-17-00 |
from US $8.22 |
||
|
38
|
38
90214-13002-00 Washer, Claw |
90214-13002-00 |
from US $3.26 |
||
|
39
|
39
13S-27446-10-00 Plate 2 |
13S-27446-10-00 |
from US $54.02 |
||
|
40
|
40
901-49062-33-00
Bolt, Button Head
|
901-49062-33-00 |
— | ||
| replacement | |||||
|
40
|
40
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.42 |
||
|
41
|
41
90111-06067-00 Bolt, Hex. Socket Button |
90111-06067-00 |
from US $1.84 |
||
| replacement | |||||
|
41
|
41
90111-06046-00 Bolt, Hex. Socket Button |
90111-06046-00 |
from US $1.84 |
||
|
42
|
42
90387-06215-00 Collar |
90387-06215-00 |
from US $4.39 |
||
|
43
|
43
90109-066F0-00 Bolt |
90109-066F0-00 |
from US $3.32 |
||
|
44
|
44
2C0-14747-00-00 Damper, Muffler |
2C0-14747-00-00 |
from US $4.68 |
||
|
45
|
45
90109-085G6-00 Bolt |
90109-085G6-00 |
from US $1.66 |
||
|
46
|
46
2C0-2116K-00-00 Bracket 8 |
2C0-2116K-00-00 |
from US $7.93 |
||
|
47
|
47
2C0-2116L-00-00 Bracket 9 |
2C0-2116L-00-00 |
from US $2.69 |
||
|
48
|
48
95024-06012-00 Bolt, Flange (Small Head) |
95024-06012-00 |
from US $1.56 |
||
|
49
|
49
5JJ-27431-10-00 Footrest, Rear 1 |
5JJ-27431-10-00 |
from US $56.37 |
||
|
50
|
50
2CR-2741L-00-00 Bracket 4 |
2CR-2741L-00-00 |
from US $51.40 |
||
| replacement | |||||
|
50
|
50
2CR-2741L-01-00 |
2CR-2741L-01-00 |
from US $51.40 |
||
|
51
|
51
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
52
|
52
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
52
|
52
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
53
|
53
5JJ-27437-01-00 Washer, Special |
5JJ-27437-01-00 |
from US $1.84 |
||
|
54
|
54
913-12060-35-00
Bolt
|
913-12060-35-00 |
— | ||
| replacements | |||||
|
54
|
54
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
54
|
54
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
55
|
55
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
55
|
55
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
56
|
56
90387-06697-00 Collar |
90387-06697-00 |
from US $4.68 |
||
|
57
|
57
5JJ-27441-10-00 Footrest, Rear 2 |
5JJ-27441-10-00 |
from US $56.37 |
||
|
58
|
58
2CR-2742L-00-00 Bracket 5 |
2CR-2742L-00-00 |
from US $51.40 |
||
|
59
|
59
90501-12743-00 Spring, Compression |
90501-12743-00 |
from US $1.84 |
||
|
60
|
60
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
| replacement | |||||
|
60
|
60
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
61
|
61
5JJ-27437-01-00 Washer, Special |
5JJ-27437-01-00 |
from US $1.84 |
||
|
62
|
62
913-12060-35-00
Bolt
|
913-12060-35-00 |
— | ||
| replacements | |||||
|
62
|
62
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
62
|
62
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
63
|
63
95602-06200-00 Nut, U Flange |
95602-06200-00 |
from US $1.56 |
||
| replacement | |||||
|
63
|
63
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
64
|
64
90387-06697-00 Collar |
90387-06697-00 |
from US $4.68 |
||
|
65
|
65
90111-08066-00 Bolt, Hexagon Socket Head |
90111-08066-00 |
from US $1.84 |
||
| replacement | |||||
|
65
|
65
90110-08220-00 Bolt, Hexagon Socket Head |
90110-08220-00 |
from US $1.84 |
||
|
66
|
66
13S-27417-00-00 Washer, Footrest |
13S-27417-00-00 |
from US $7.51 |
||
