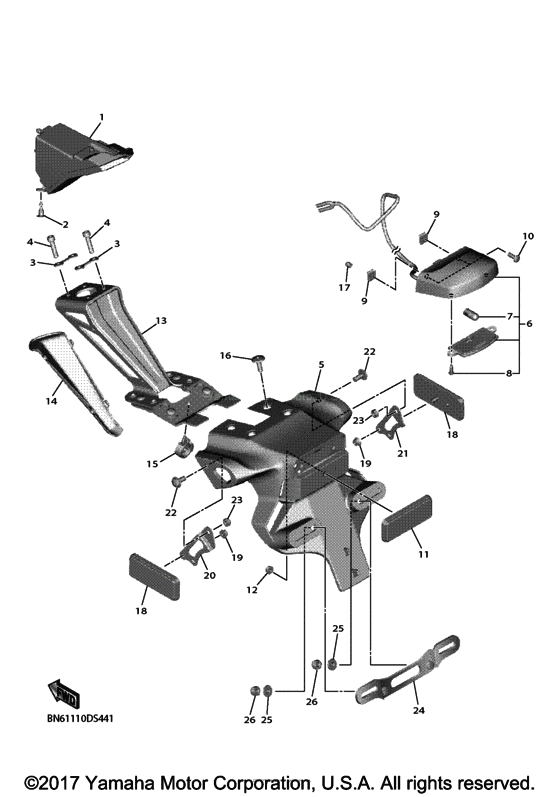

Taillight Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN61
- Sales region
- USA
- Базовая модель
- YZFR6HB
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2CR-84710-00-00 Taillight Unit Assy |
2CR-84710-00-00 |
from US $217.26 |
||
|
2
|
2
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
3
|
3
BN6-21615-00-00 WASHER, SPECIAL 1 |
BN6-21615-00-00 |
from US $4.11 |
||
|
4
|
4
90110-06295-00 Bolt, Hexagon Socket Head |
90110-06295-00 |
US $1.56 |
||
| replacement | |||||
|
4
|
4
91314-06025-00 Bolt, Hexagon Socket Head |
91314-06025-00 |
from US $1.56 |
||
|
5
|
5
2C0-21629-11-00 Guard, Mud |
2C0-21629-11-00 |
from US $19.98 |
||
|
6
|
6
5VX-84745-01-00 License Light Unit Assy |
5VX-84745-01-00 |
from US $44.63 |
||
|
7
|
7
4HC-84744-00-00 Bulb (12V-5W) |
4HC-84744-00-00 |
from US $2.83 |
||
| replacements | |||||
|
7
|
7
4SV-84347-00-00 Bulb (12V-5W) |
4SV-84347-00-00 |
from US $2.83 |
||
|
7
|
7
1WD-H4744-00-00 Bulb (12V-5W) |
1WD-H4744-00-00 |
from US $5.30 |
||
|
7
|
7
1RC-84347-00-00 Bulb (12V-5W) |
1RC-84347-00-00 |
from US $4.96 |
||
|
7
|
7
1JD-H4347-00-00 Bulb (W3W-12V) |
1JD-H4347-00-00 |
US $4.68 |
||
|
7
|
7
3WW-H4347-00-00
Bulb
|
3WW-H4347-00-00 |
— | ||
|
8
|
8
977-06040-12-00
Screw, Tapping
|
977-06040-12-00 |
— | ||
| replacement | |||||
|
8
|
8
97707-40012-00 Screw, Tapping |
97707-40012-00 |
from US $1.42 |
||
|
9
|
9
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $2.69 |
||
|
10
|
10
98902-05014-00 Screw, Bind |
98902-05014-00 |
from US $1.56 |
||
|
11
|
11
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
12
|
12
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
13
|
13
BN6-21640-00-00 REAR STAY COMP. |
BN6-21640-00-00 |
from US $165.79 |
||
|
14
|
14
BN6-2163E-00-00 COVER, REAR FENDER 2 |
BN6-2163E-00-00 |
from US $18.99 |
||
|
15
|
15
90464-14228-00 Clamp |
90464-14228-00 |
from US $4.53 |
||
|
16
|
16
90109-06182-00 Bolt |
90109-06182-00 |
from US $10.48 |
||
|
17
|
17
5VX-13569-01-00 Plug, Blind |
5VX-13569-01-00 |
from US $1.70 |
||
|
18
|
18
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
19
|
19
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
19
|
19
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
20
|
20
2C0-21688-00-00 Bracket, Rear Stay |
2C0-21688-00-00 |
from US $7.51 |
||
|
21
|
21
2C0-21689-00-00 Bracket, Rear Stay 2 |
2C0-21689-00-00 |
from US $7.51 |
||
|
22
|
22
90159-06011-00 Screw, With Washer |
90159-06011-00 |
from US $1.70 |
||
|
23
|
23
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
24
|
24
5MT-84751-00-00 Bracket, License |
5MT-84751-00-00 |
from US $13.60 |
||
|
25
|
25
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
26
|
26
95602-06100-00 Nut, U |
95602-06100-00 |
from US $1.21 |
||
| replacement | |||||
|
26
|
26
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
