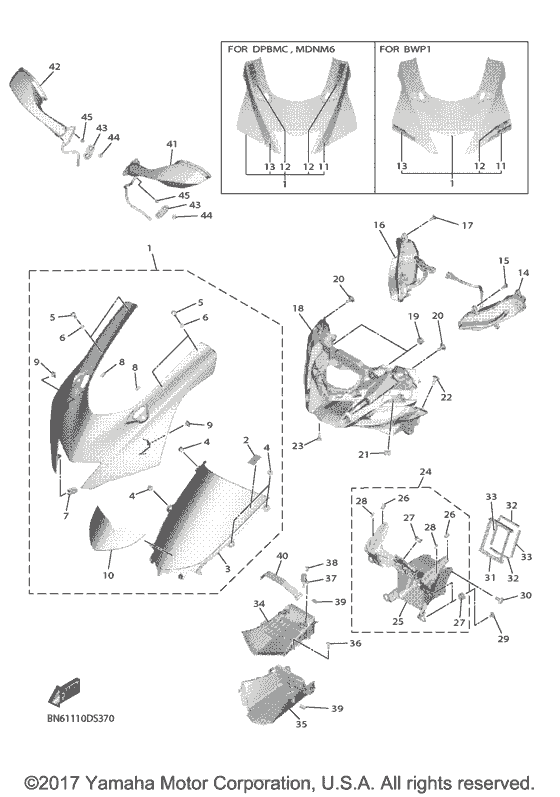

Cowling 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BN6-Y283G-00-P0 BODY, FRONT UPPER 1Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-Y283G-00-P0 |
from US $534.69 |
||
|
1
|
1
BN6-Y283G-20-P1 BODY, FRONT UPPER 1UR FOR MDNM6 |
BN6-Y283G-20-P1 |
US $843.17 |
||
|
1
|
1
BN6-Y283G-30-P2 BODY, FRONT UPPER 1UR FOR BWP1 |
BN6-Y283G-30-P2 |
US $843.17 |
||
|
2
|
2
4B5-2815K-00-00 Label, Notice Windshield 1 |
4B5-2815K-00-00 |
from US $6.52 |
||
|
3
|
3
BN6-28381-00-00 WINDSHIELD |
BN6-28381-00-00 |
from US $81.65 |
||
|
4
|
4
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.26 |
||
|
5
|
5
90150-05023-00 Screw, Round Head |
90150-05023-00 |
from US $1.66 |
||
|
6
|
6
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
7
|
7
904-64070-18-00 Clamp |
904-64070-18-00 |
from US $0.90 |
||
|
8
|
8
20S-2814H-11-00 Hook 1 |
20S-2814H-11-00 |
from US $3.12 |
||
|
9
|
9
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
10
|
10
BN6-2832P-00-00 GRAPHIC, 18 |
BN6-2832P-00-00 |
from US $54.16 |
||
|
11
|
11
BN6-2832K-00-00 GRAPHIC, 12Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-2832K-00-00 |
from US $30.04 |
||
|
11
|
11
BN6-2832K-10-00 GRAPHIC, 12UR FOR MDNM6 |
BN6-2832K-10-00 |
from US $27.02 |
||
|
11
|
11
BN6-2832K-20-00 GRAPHIC, 12UR FOR BWP1 |
BN6-2832K-20-00 |
from US $15.30 |
||
|
12
|
12
BN6-28328-20-00 EMBLEMUR BWP1 |
BN6-28328-20-00 |
from US $10.77 |
||
|
12
|
12
992-41001-00-00 Emblem, YamahaUse for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
992-41001-00-00 |
from US $5.85 |
||
|
13
|
13
BN6-2832L-00-00 GRAPHIC, 13Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 ) |
BN6-2832L-00-00 |
from US $30.04 |
||
|
13
|
13
BN6-2832L-10-00 GRAPHIC, 13UR FOR MDNM6 |
BN6-2832L-10-00 |
from US $27.02 |
||
|
13
|
13
BN6-2832L-20-00 GRAPHIC, 13UR FOR BWP1 |
BN6-2832L-20-00 |
from US $15.30 |
||
|
14
|
14
BN6-84301-00-00 PILOT LIGHT ASSY 1 |
BN6-84301-00-00 |
from US $277.70 |
||
|
15
|
15
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
15
|
15
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
16
|
16
BN6-84302-00-00 PILOT LIGHT ASSY 2 |
BN6-84302-00-00 |
from US $277.70 |
||
|
17
|
17
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
17
|
17
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
18
|
18
BN6-2830A-00-00 BODY, COWLING |
BN6-2830A-00-00 |
from US $121.44 |
||
|
19
|
19
90480-10003-00 Grommet |
90480-10003-00 |
from US $1.56 |
||
|
20
|
20
90109-06061-00 Bolt |
90109-06061-00 |
from US $6.09 |
||
|
21
|
21
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
21
|
21
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
22
|
22
90109-06061-00 Bolt |
90109-06061-00 |
from US $6.09 |
||
|
23
|
23
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.56 |
||
|
24
|
24
BN6-28320-00-00 LEG SHIELD STAY SET |
BN6-28320-00-00 |
from US $262.50 |
||
|
25
|
25
BN6-28356-00-00 STAY 1 |
BN6-28356-00-00 |
from US $239.02 |
||
|
26
|
26
20S-2814H-11-00 Hook 1 |
20S-2814H-11-00 |
from US $3.12 |
||
|
27
|
27
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $1.84 |
||
|
28
|
28
1HX-27415-00-00 Plate, Damper |
1HX-27415-00-00 |
from US $1.34 |
||
|
29
|
29
90160-05006-00 Screw, Round Tapping |
90160-05006-00 |
from US $1.34 |
||
|
30
|
30
90111-06116-00 Bolt, Hex. Socket Button |
90111-06116-00 |
from US $1.42 |
||
|
31
|
31
2C0-28342-01-00 Joint |
2C0-28342-01-00 |
from US $4.11 |
||
| replacement | |||||
|
31
|
31
2C0-28342-02-00 JOINT |
2C0-28342-02-00 |
from US $4.11 |
||
|
32
|
32
2C0-28217-00-00 Damper 1 |
2C0-28217-00-00 |
from US $1.70 |
||
|
33
|
33
2C0-28227-00-00 Damper 2 |
2C0-28227-00-00 |
from US $1.70 |
||
|
34
|
34
BN6-2838R-00-00 DUCT 2 |
BN6-2838R-00-00 |
from US $14.88 |
||
| replacement | |||||
|
34
|
34
BN6-2838R-01-00 DUCT 2 |
BN6-2838R-01-00 |
from US $14.88 |
||
|
35
|
35
BN6-2838T-00-00 DUCT 3 |
BN6-2838T-00-00 |
from US $15.44 |
||
| replacement | |||||
|
35
|
35
BN6-2838T-01-00 DUCT 3 |
BN6-2838T-01-00 |
from US $15.44 |
||
|
36
|
36
97707-40016-00 Screw, Tapping |
97707-40016-00 |
from US $1.42 |
||
|
37
|
37
8FP-85886-00-00 Sensor, Air Temperature |
8FP-85886-00-00 |
from US $22.81 |
||
|
38
|
38
97702-50116-00 Screw, Tapping |
97702-50116-00 |
from US $1.42 |
||
| replacement | |||||
|
38
|
38
97780-50116-00 Screw, Tapping |
97780-50116-00 |
from US $1.42 |
||
|
39
|
39
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
40
|
40
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
41
|
41
BN6-26280-10-00 REAR VIEW MIRROR ASS |
BN6-26280-10-00 |
from US $364.46 |
||
|
42
|
42
BN6-26290-10-00 REAR VIEW MIRROR ASS |
BN6-26290-10-00 |
from US $408.56 |
||
|
43
|
43
4C8-26298-00-00 Plate, Mirror Fitting 1 |
4C8-26298-00-00 |
from US $2.69 |
||
|
44
|
44
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.56 |
||
|
45
|
45
90387-064T3-00 Collar |
90387-064T3-00 |
from US $1.34 |
||
