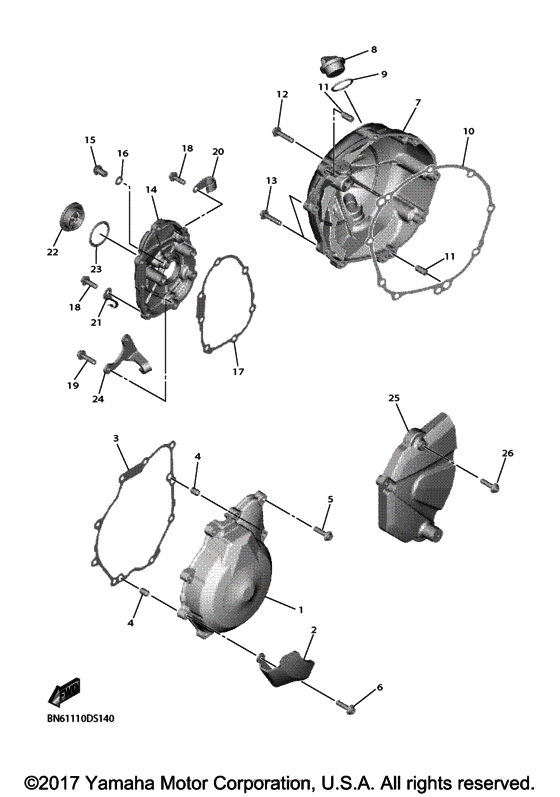

Crankcase cover 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-15411-01-00 Cover, Crankcase 1 |
2C0-15411-01-00 |
from US $73.40 |
||
|
2
|
2
BN6-15490-00-00 COVER ASSY |
BN6-15490-00-00 |
from US $83.45 |
||
|
3
|
3
2C0-15451-01-00 Gasket, Crankcase Cover 1 |
2C0-15451-01-00 |
from US $12.24 |
||
|
4
|
4
99530-08012-00 Pin, Dowel |
99530-08012-00 |
from US $1.07 |
||
|
5
|
5
901-10063-87-00 Bolt, Hexagon Socket Head |
901-10063-87-00 |
from US $1.34 |
||
|
6
|
6
901-10063-90-00 Bolt, Hexagon Socket Head |
901-10063-90-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-10063-87-00 Bolt, Hexagon Socket Head |
901-10063-87-00 |
from US $1.34 |
||
|
7
|
7
2C0-15421-00-00 Cover, Crankcase 2 |
2C0-15421-00-00 |
from US $193.42 |
||
|
8
|
8
3F9-15362-10-00 Plug, Oil Level |
3F9-15362-10-00 |
from US $10.63 |
||
| replacement | |||||
|
8
|
8
BAT-15362-00-00 PLUG OIL LEVEL |
BAT-15362-00-00 |
from US $7.62 |
||
|
9
|
9
932-10271-94-00
O-Ring
|
932-10271-94-00 |
— | ||
| replacement | |||||
|
9
|
9
932-10277-78-00 O-Ring(1Kt) |
932-10277-78-00 |
from US $3.64 |
||
|
10
|
10
2C0-15461-01-00 Gasket, Crankcase Cover 2 |
2C0-15461-01-00 |
from US $13.90 |
||
|
11
|
11
93608-17263-00 Pin, Dowel |
93608-17263-00 |
from US $1.70 |
||
|
12
|
12
901-10063-88-00 Bolt, hexagon socket head |
901-10063-88-00 |
from US $1.34 |
||
|
13
|
13
901-10063-89-00
Bolt, Hexagon Socket Head
|
901-10063-89-00 |
— | ||
| replacement | |||||
|
13
|
13
901-10063-88-00 Bolt, hexagon socket head |
901-10063-88-00 |
from US $1.34 |
||
|
14
|
14
2C0-15416-00-00 Oil Pump Cover |
2C0-15416-00-00 |
from US $101.41 |
||
|
15
|
15
92014-08014-00 Bolt, Button Head |
92014-08014-00 |
from US $1.84 |
||
|
16
|
16
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.70 |
||
|
17
|
17
2C0-15456-01-00 Gasket, Oil Pump Cover 1 |
2C0-15456-01-00 |
from US $6.23 |
||
|
18
|
18
901-10063-96-00 Bolt, Hexagon Socket Head |
901-10063-96-00 |
from US $1.28 |
||
|
19
|
19
901-10063-87-00 Bolt, Hexagon Socket Head |
901-10063-87-00 |
from US $1.34 |
||
|
20
|
20
90465-08395-00 Clamp |
90465-08395-00 |
from US $7.23 |
||
|
21
|
21
2C0-21823-00-00 Clamp, Hose |
2C0-21823-00-00 |
from US $7.79 |
||
|
22
|
22
903-40320-04-00 Plug, Straight Screw |
903-40320-04-00 |
from US $8.22 |
||
|
23
|
23
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.70 |
||
|
24
|
24
2C0-15441-00-00 Holder, Clutch Cable |
2C0-15441-00-00 |
from US $9.92 |
||
|
25
|
25
2C0-15418-00-00 Cover, Chain Case |
2C0-15418-00-00 |
from US $17.71 |
||
|
26
|
26
90110-06060-00 Bolt |
90110-06060-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
90109-06015-00 Bolt |
90109-06015-00 |
from US $1.70 |
||
