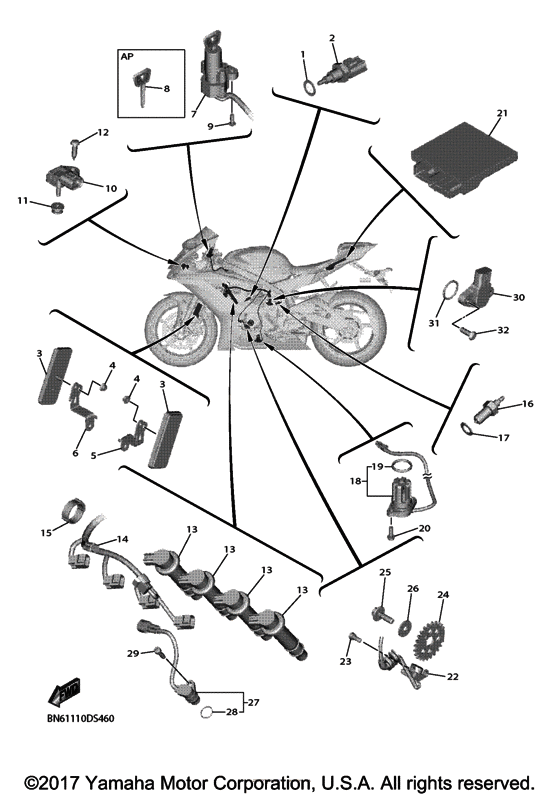

Electrical 1 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90201-12790-00 Washer, Plate |
90201-12790-00 |
from US $1.28 |
||
|
2
|
2
5YP-85790-00-00 Thermosensor Assy |
5YP-85790-00-00 |
from US $30.18 |
||
|
3
|
3
11H-85110-01-00 Reflector Assy |
11H-85110-01-00 |
from US $11.92 |
||
|
4
|
4
95702-05500-00 Nut, With Washer |
95702-05500-00 |
from US $0.50 |
||
| replacement | |||||
|
4
|
4
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
5
|
5
BN6-85112-00-00 BRACKET, REFLECTOR 1 |
BN6-85112-00-00 |
from US $7.93 |
||
|
6
|
6
BN6-85122-00-00 BRACKET, REFLECTOR 2 |
BN6-85122-00-00 |
from US $7.93 |
||
|
7
|
7
BN6-82501-10-00 MAIN SWITCH STEERING |
BN6-82501-10-00 |
US $198.54 |
||
|
8
|
8
4BH-82511-09-00 Blank KeyAP |
4BH-82511-09-00 |
from US $11.19 |
||
|
9
|
9
90109-08195-00 Bolt |
90109-08195-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
10
|
10
1WS-82380-00-00 Sensor, Pressure |
1WS-82380-00-00 |
from US $114.40 |
||
|
11
|
11
90480-08006-00 Grommet |
90480-08006-00 |
from US $1.70 |
||
|
12
|
12
97702-50120-00 Screw, Tapping |
97702-50120-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
97780-50620-00 Screw, Tapping |
97780-50620-00 |
from US $1.56 |
||
|
13
|
13
BN6-82310-00-00 IGNITION COIL ASSY |
BN6-82310-00-00 |
from US $101.27 |
||
|
14
|
14
BN6-82309-00-00 WIRE, SUB LEAD |
BN6-82309-00-00 |
from US $68.39 |
||
|
15
|
15
90464-28003-00 Clamp |
90464-28003-00 |
from US $1.98 |
||
|
16
|
16
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
17
|
17
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
18
|
18
5VX-85720-01-00 Oil Level Gauge Assy |
5VX-85720-01-00 |
from US $85.80 |
||
|
19
|
19
5VY-8A8E0-00-00 O-Ring |
5VY-8A8E0-00-00 |
from US $7.28 |
||
|
20
|
20
95022-06016-00 Bolt, Flange |
95022-06016-00 |
from US $1.56 |
||
|
21
|
21
BN6-8591A-10-00 ENGINE CONTROL UNIT |
BN6-8591A-10-00 |
US $2,227.50 |
||
| replacements | |||||
|
21
|
21
BN6-8591A-11-00 Engine Control Unit |
BN6-8591A-11-00 |
US $2,198.88 |
||
|
21
|
21
BN6-8591A-12-00 |
BN6-8591A-12-00 |
US $2,317.55 |
||
|
22
|
22
BN6-81670-00-00 PICK-UP ASSY |
BN6-81670-00-00 |
from US $96.85 |
||
|
23
|
23
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
23
|
23
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
23
|
23
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
|
24
|
24
2C0-81673-01-00 Rotor |
2C0-81673-01-00 |
from US $20.54 |
||
|
25
|
25
90105-08113-00 Bolt, Flange |
90105-08113-00 |
from US $3.40 |
||
| replacement | |||||
|
25
|
25
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
26
|
26
90201-08054-00 Washer, Plate |
90201-08054-00 |
from US $1.70 |
||
|
27
|
27
5VY-85896-01-00 Sensor, Cam Position |
5VY-85896-01-00 |
from US $112.80 |
||
| replacement | |||||
|
27
|
27
5VY-85896-02-00 Sensor, Cam Position |
5VY-85896-02-00 |
from US $137.61 |
||
|
28
|
28
4D9-81168-00-00 O-Ring |
4D9-81168-00-00 |
from US $3.40 |
||
|
29
|
29
901-10061-75-00
Bolt, Hexagon Socket Head
|
901-10061-75-00 |
— | ||
| replacements | |||||
|
29
|
29
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
29
|
29
91312-06020-00 Bolt, Hexagon Socket Head |
91312-06020-00 |
from US $1.21 |
||
|
30
|
30
2CR-85899-10-00 SENSOR, GEAR POSITIO |
2CR-85899-10-00 |
from US $71.29 |
||
|
31
|
31
932-10170-08-00 O-Ring |
932-10170-08-00 |
from US $1.42 |
||
|
32
|
32
901-49050-37-00 Screw |
901-49050-37-00 |
from US $1.28 |
||
| replacement | |||||
|
32
|
32
90149-05038-00 Screw |
90149-05038-00 |
from US $0.80 |
||
