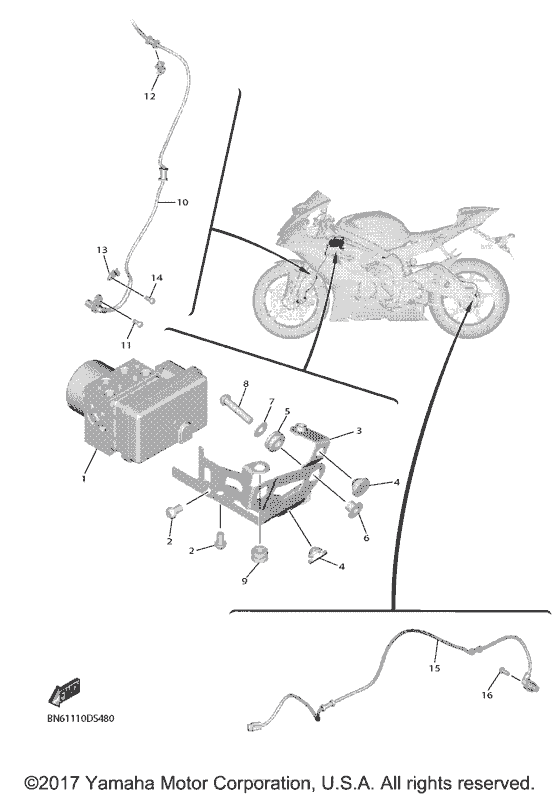

Electrical 3 Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BN6-85930-09-00 HYDRAULIC UNIT ASSY |
BN6-85930-09-00 |
from US $1,139.16 |
||
|
2
|
2
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.34 |
||
|
3
|
3
BN6-85991-00-00 BRACKET, UNIT |
BN6-85991-00-00 |
from US $22.81 |
||
|
4
|
4
90338-09127-00 Plug |
90338-09127-00 |
from US $1.70 |
||
|
5
|
5
90480-13003-00 Grommet |
90480-13003-00 |
from US $1.98 |
||
|
6
|
6
90560-06201-00 Spacer |
90560-06201-00 |
from US $3.83 |
||
|
7
|
7
90201-06089-00 Washer, Plate |
90201-06089-00 |
from US $1.70 |
||
|
8
|
8
92012-06030-00 Bolt, Button Head |
92012-06030-00 |
from US $1.56 |
||
|
9
|
9
90480-10517-00 Grommet |
90480-10517-00 |
from US $1.98 |
||
|
10
|
10
BN6-85970-00-00 WHEEL SENSOR ASSY, F |
BN6-85970-00-00 |
from US $118.26 |
||
| replacement | |||||
|
10
|
10
BN6-85970-01-00 |
BN6-85970-01-00 |
from US $118.26 |
||
|
11
|
11
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
12
|
12
90464-09129-00 Clamp |
90464-09129-00 |
from US $1.98 |
||
|
13
|
13
2CR-23317-00-00 Holder, Cable |
2CR-23317-00-00 |
from US $7.93 |
||
|
14
|
14
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
|
15
|
15
BN6-85980-00-00
WHEEL SENSOR ASSY, R
|
BN6-85980-00-00 |
— | ||
| replacement | |||||
|
15
|
15
BN6-85980-01-00 Sensor, RR Wheel |
BN6-85980-01-00 |
from US $113.84 |
||
|
16
|
16
92017-06014-00 Bolt, Button Head |
92017-06014-00 |
from US $1.56 |
||
