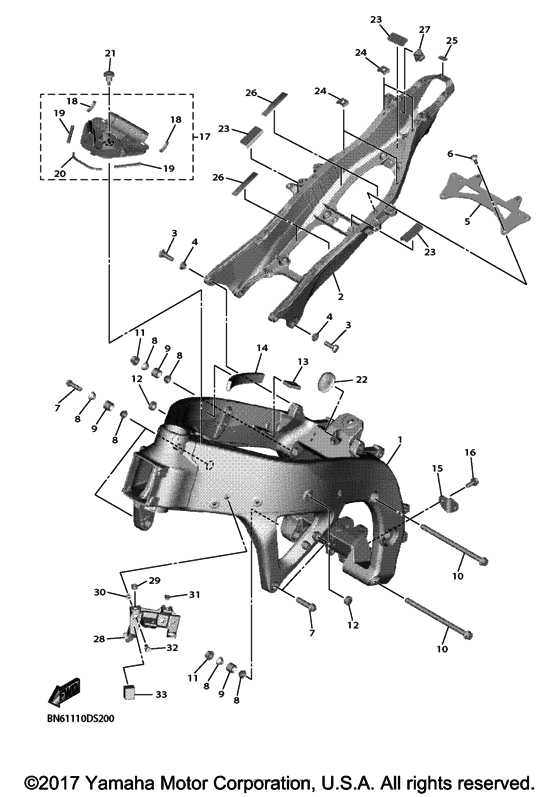

Frame Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BN6-21110-00-00 FRAME COMP. |
BN6-21110-00-00 |
from US $2,006.40 |
||
|
2
|
2
BN6-21190-00-00 REAR FRAME COMP. |
BN6-21190-00-00 |
from US $1,271.16 |
||
|
3
|
3
90149-10002-00 Screw |
90149-10002-00 |
from US $3.54 |
||
| replacement | |||||
|
3
|
3
901-49100-03-00 Screw |
901-49100-03-00 |
from US $3.54 |
||
|
4
|
4
2CR-21116-00-00 Collar |
2CR-21116-00-00 |
from US $13.18 |
||
|
5
|
5
BN6-21670-00-00 REINFORCEMENT COMP. |
BN6-21670-00-00 |
from US $37.86 |
||
|
6
|
6
901-11061-55-00 Bolt, Hex. Socket Button |
901-11061-55-00 |
from US $1.28 |
||
|
7
|
7
95024-10040-00 Bolt, Flange |
95024-10040-00 |
from US $3.68 |
||
|
8
|
8
13S-21414-00-00 Boss, Engine Mount |
13S-21414-00-00 |
from US $16.58 |
||
|
9
|
9
13S-21424-00-00 Boss, Engine Mount |
13S-21424-00-00 |
from US $24.65 |
||
|
10
|
10
90105-12228-00 Bolt, Washer Based |
90105-12228-00 |
from US $10.06 |
||
|
11
|
11
90179-12004-00 Nut |
90179-12004-00 |
from US $2.32 |
||
|
12
|
12
90338-15004-00 Plug |
90338-15004-00 |
from US $1.70 |
||
|
13
|
13
2C0-24182-00-00 Damper, Locating 2 |
2C0-24182-00-00 |
from US $1.70 |
||
|
14
|
14
2C0-21486-00-00 Damper 2 |
2C0-21486-00-00 |
from US $3.12 |
||
|
15
|
15
13S-21435-00-00 Bracket, Muffler 1 |
13S-21435-00-00 |
from US $12.18 |
||
|
16
|
16
90105-08171-00 Bolt, Flange |
90105-08171-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
95812-08020-00 Bolt, Flange |
95812-08020-00 |
from US $1.34 |
||
|
17
|
17
13S-2110M-00-00 Cover Assy 1 |
13S-2110M-00-00 |
from US $21.39 |
||
|
18
|
18
13S-2174X-00-00 Damper |
13S-2174X-00-00 |
from US $1.70 |
||
|
19
|
19
2C0-2174Y-00-00 Damper |
2C0-2174Y-00-00 |
from US $0.67 |
||
|
20
|
20
2C0-21746-00-00 Damper |
2C0-21746-00-00 |
from US $1.70 |
||
|
21
|
21
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.70 |
||
|
22
|
22
2C0-21279-00-00 Plug, Blind |
2C0-21279-00-00 |
from US $4.68 |
||
|
23
|
23
4B5-28268-00-00 Seal 4 |
4B5-28268-00-00 |
from US $5.81 |
||
|
24
|
24
2CR-22875-01-00 SEAL 3 |
2CR-22875-01-00 |
from US $1.56 |
||
|
25
|
25
5SL-21268-00-00 Seal |
5SL-21268-00-00 |
from US $1.84 |
||
|
26
|
26
4B5-28238-00-00 Seal 3 |
4B5-28238-00-00 |
from US $4.53 |
||
|
27
|
27
90464-13004-00 Clamp |
90464-13004-00 |
from US $3.83 |
||
|
28
|
28
13S-2833A-00-00 Bracket 7 |
13S-2833A-00-00 |
from US $4.11 |
||
| replacement | |||||
|
28
|
28
13S-2833A-01-00 Bracket 7 |
13S-2833A-01-00 |
from US $4.11 |
||
|
29
|
29
90480-10003-00 Grommet |
90480-10003-00 |
from US $1.56 |
||
|
30
|
30
90387-06048-00 Collar |
90387-06048-00 |
from US $3.83 |
||
|
31
|
31
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
31
|
31
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $1.84 |
||
|
32
|
32
95D02-06020-00 BOLT, FLANGE DEEP RE |
95D02-06020-00 |
from US $0.54 |
||
|
33
|
33
13S-12679-00-00 Damper, Shroud 6 |
13S-12679-00-00 |
from US $1.70 |
||
