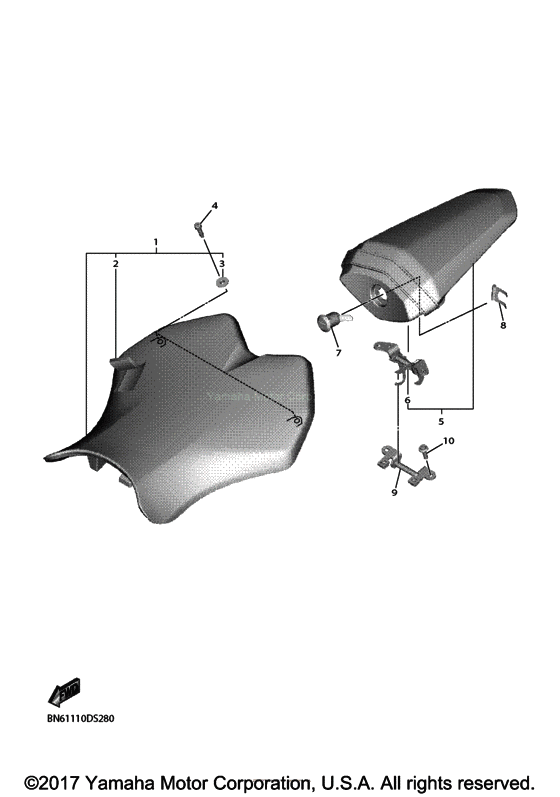

Seat Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2017
- Model code
- BN62
- Sales region
- United States (California)
- Базовая модель
- YZFR6HCL
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BN6-24710-00-00
SINGLE SEAT ASSY
|
BN6-24710-00-00 |
— | ||
| replacement | |||||
|
1
|
1
BN6-24710-01-00 SINGLE SEAT ASSY |
BN6-24710-01-00 |
from US $142.30 |
||
|
2
|
2
BN6-24711-00-00 COVER, SINGLE SEAT |
BN6-24711-00-00 |
from US $55.54 |
||
|
3
|
3
90387-06066-00 Collar |
90387-06066-00 |
from US $1.65 |
||
|
4
|
4
90110-06258-00 Bolt, Hexagon Socket Head |
90110-06258-00 |
from US $1.70 |
||
|
5
|
5
2CR-24750-00-00 Tandem Seat Assy |
2CR-24750-00-00 |
from US $151.98 |
||
| replacement | |||||
|
5
|
5
2CR-24750-01-00 Tandem Seat Assy |
2CR-24750-01-00 |
from US $150.03 |
||
|
6
|
6
2CR-2478R-00-00 Seat Lock Comp |
2CR-2478R-00-00 |
from US $40.07 |
||
|
7
|
7
2CR-W2470-00-00 Rotor Set |
2CR-W2470-00-00 |
from US $48.91 |
||
|
8
|
8
5VY-2176V-00-00 Spring, Lock 2 |
5VY-2176V-00-00 |
from US $4.11 |
||
|
9
|
9
2CR-2478X-00-00 Bracket, Seat Lock |
2CR-2478X-00-00 |
from US $14.17 |
||
|
10
|
10
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
