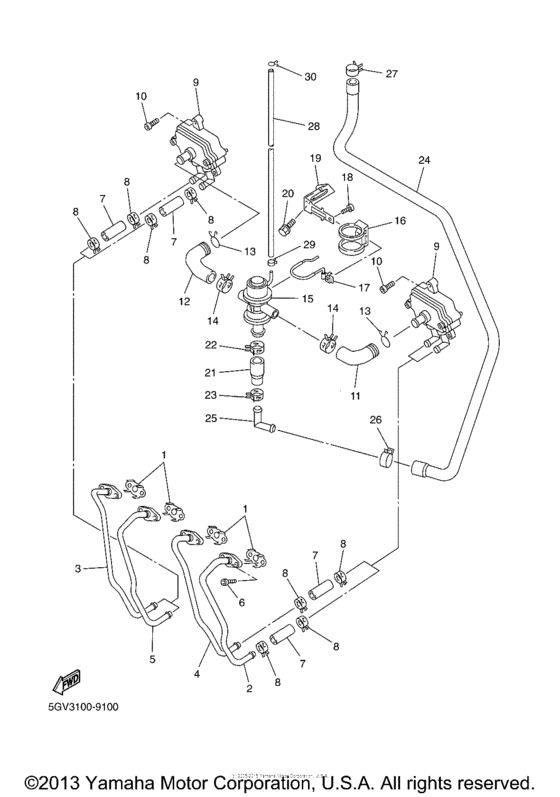

Air induction system ca Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Model code
- 5GV1
- Sales region
- USA
- Базовая модель
- YZFR6L
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GV-14815-00-00 Gasket, MufflerCA |
5GV-14815-00-00 |
US $16.38 |
||
|
2
|
2
5GV-14871-00-00 Pipe 1CA |
5GV-14871-00-00 |
US $379.96 |
||
|
3
|
3
5GV-14873-00-00 Pipe 3CA |
5GV-14873-00-00 |
US $169.43 |
||
|
4
|
4
5GV-14874-00-00 Pipe 4CA |
5GV-14874-00-00 |
US $168.37 |
||
|
5
|
5
5GV-14875-00-00 Pipe 5CA |
5GV-14875-00-00 |
US $159.21 |
||
|
6
|
6
91380-06016-00 BoltCA |
91380-06016-00 |
from US $1.42 |
||
|
7
|
7
5GV-14881-00-00 Hose, Bend 1CA |
5GV-14881-00-00 |
US $3.58 |
||
|
8
|
8
90467-15054-00 ClipCA |
90467-15054-00 |
from US $1.28 |
||
|
9
|
9
5GV-14808-00-00
Reed Valve Assy
CA |
5GV-14808-00-00 |
— | ||
|
10
|
10
91317-06020-00 BoltCA |
91317-06020-00 |
from US $1.07 |
||
|
11
|
11
5GV-14882-00-00 Hose, Bend 2CA |
5GV-14882-00-00 |
US $34.88 |
||
|
12
|
12
5GV-14883-00-00 Hose, Bend 3CA |
5GV-14883-00-00 |
US $34.88 |
||
|
13
|
13
90467-16195-00 ClipCA |
90467-16195-00 |
US $3.68 |
||
| replacement | |||||
|
13
|
13
90467-15M14-00 ClipCA |
90467-15M14-00 |
from US $3.68 |
||
|
14
|
14
904-67210-68-00 ClipCA |
904-67210-68-00 |
from US $2.79 |
||
|
15
|
15
5GV-14840-00-00 Air Cut Valve Ass'yCA |
5GV-14840-00-00 |
US $370.69 |
||
|
16
|
16
5GV-14844-00-00 DamperCA |
5GV-14844-00-00 |
US $70.85 |
||
|
17
|
17
5GV-14849-00-00 BracketCA |
5GV-14849-00-00 |
US $64.26 |
||
|
18
|
18
98507-06010-00 Screw, Pan HeadCA |
98507-06010-00 |
from US $1.07 |
||
|
19
|
19
5GV-14834-00-00 StayCA |
5GV-14834-00-00 |
US $86.47 |
||
|
20
|
20
95807-08014-00 Bolt, FlangeCA |
95807-08014-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
958-17080-14-00 Bolt, FlangeCA |
958-17080-14-00 |
from US $1.34 |
||
|
21
|
21
4MM-14885-00-00
Hose, Bend 5
CA |
4MM-14885-00-00 |
— | ||
|
22
|
22
90467-23067-00 ClipCA |
90467-23067-00 |
from US $1.84 |
||
|
23
|
23
90467-19051-00 ClipCA |
90467-19051-00 |
from US $1.35 |
||
|
24
|
24
5GV-14884-00-00 Hose, Bend 4CA |
5GV-14884-00-00 |
US $66.56 |
||
|
25
|
25
5GV-14872-00-00 Pipe 2CA |
5GV-14872-00-00 |
US $78.10 |
||
|
26
|
26
90467-19051-00 ClipCA |
90467-19051-00 |
from US $1.35 |
||
|
27
|
27
90467-17128-00 ClipCA |
90467-17128-00 |
from US $1.28 |
||
|
28
|
28
904-45097-E9-00
Hose (L685)
CA |
904-45097-E9-00 |
— | ||
| replacement | |||||
|
28
|
28
90445-090G9-00 Hose (L685)CA |
90445-090G9-00 |
from US $16.86 |
||
|
29
|
29
90467-08092-00 ClipCA |
90467-08092-00 |
from US $1.35 |
||
|
30
|
30
90467-08017-00 ClipCA |
90467-08017-00 |
from US $1.56 |
||
