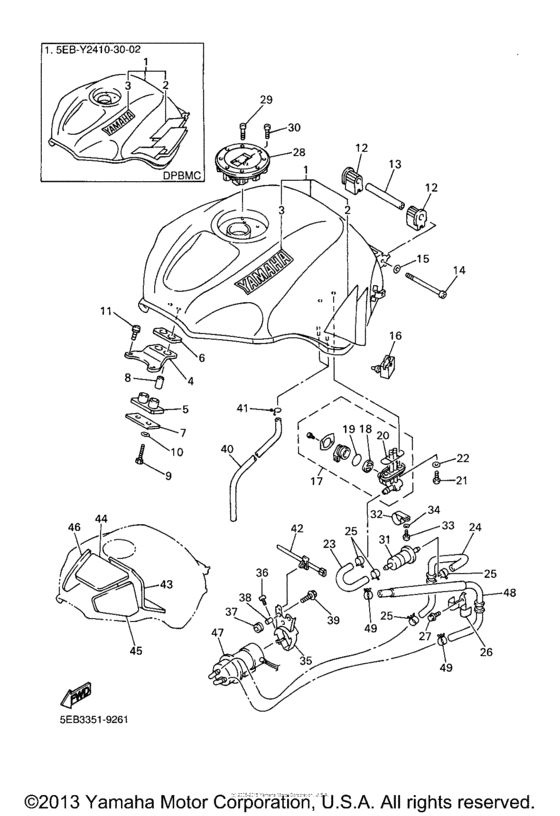

Fuel tank Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 1999
- Model code
- 5GV1
- Sales region
- USA
- Базовая модель
- YZFR6L
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-Y2410-30-02 Fuel Tank Compfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5EB-Y2410-30-02 |
US $1,288.35 |
||
|
1
|
1
5EB-Y2410-30-01
Fuel Tank Comp
for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
5EB-Y2410-30-01 |
— | ||
|
2
|
2
5EB-24240-00-00 Graphic Setfor Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
5EB-24240-00-00 |
US $76.36 |
||
|
2
|
2
5EB-24250-00-00 Graphic Setfor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
5EB-24250-00-00 |
US $208.01 |
||
|
3
|
3
4TV-2153A-20-00
Emblem, Yamaha
for Color BLUISH WHITE COCKTAIL 1 BWC1 / 0390 |
4TV-2153A-20-00 |
— | ||
|
3
|
3
4TV-2153A-00-00 Emblem, Yamahafor Color DEEP PURPLISH BLUE METALLIC C DPBMC / 0564 |
4TV-2153A-00-00 |
from US $24.79 |
||
|
4
|
4
5EB-24191-00-00
Bracket, Fuel Tank 1
U49 |
5EB-24191-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
U49 |
999-99999-99-00 |
— | ||
|
5
|
5
5EB-24181-00-00 Damper, Locating 1U49 |
5EB-24181-00-00 |
from US $5.29 |
||
|
6
|
6
2GH-24183-00-00 Damper, Locating 3U49 |
2GH-24183-00-00 |
from US $4.96 |
||
|
7
|
7
2GH-24186-00-00 Washer, SpecialU49 |
2GH-24186-00-00 |
from US $4.53 |
||
|
8
|
8
90387-06027-00 CollarU49 |
90387-06027-00 |
from US $1.70 |
||
|
9
|
9
97007-06030-00 BoltU49 |
97007-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
9
|
9
97017-06030-00 BoltU49 |
97017-06030-00 |
from US $1.07 |
||
|
10
|
10
92907-06600-00 Washer, PlateU49 |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
90159-06005-00 Screw, With WasherU49 |
90159-06005-00 |
from US $5.81 |
||
|
12
|
12
5EB-24183-00-00 Damper, Locating 3U49 |
5EB-24183-00-00 |
from US $7.51 |
||
|
13
|
13
90387-061W6-00 CollarU49 |
90387-061W6-00 |
from US $4.39 |
||
|
14
|
14
91317-06090-00 BoltU49 |
91317-06090-00 |
from US $3.74 |
||
|
15
|
15
90201-06050-00 Washer, PlateU49 |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
15
|
15
90201-06M08-00 Washer, PlateU49 |
90201-06M08-00 |
from US $1.56 |
||
|
16
|
16
5EB-24182-00-00 Damper, Locating 2U49 |
5EB-24182-00-00 |
from US $10.06 |
||
|
17
|
17
4TV-24500-00-00 Fuel Cock Assy 1U49 |
4TV-24500-00-00 |
from US $122.13 |
||
|
18
|
18
3XV-24523-00-00 ValveU49 |
3XV-24523-00-00 |
from US $7.79 |
||
|
19
|
19
3XV-24534-00-00 Seal, CockU49 |
3XV-24534-00-00 |
from US $10.48 |
||
|
20
|
20
4X8-24512-00-00 O-RingU49 |
4X8-24512-00-00 |
from US $1.84 |
||
|
21
|
21
90149-06008-00 ScrewU49 |
90149-06008-00 |
from US $1.70 |
||
|
22
|
22
902-02051-93-00
Washer, Plate(3Gm)
U49 |
902-02051-93-00 |
— | ||
| replacement | |||||
|
22
|
22
902-02051-87-00 Washer, PlateU49 |
902-02051-87-00 |
from US $1.28 |
||
|
23
|
23
5EB-24311-00-00 Pipe, Fuel 1U49 |
5EB-24311-00-00 |
from US $16.58 |
||
|
24
|
24
5EB-24312-00-00 Pipe 2U49 |
5EB-24312-00-00 |
from US $36.61 |
||
|
25
|
25
90467-14057-00 ClipU49 |
90467-14057-00 |
from US $1.28 |
||
|
26
|
26
5EB-2417H-00-00 Clamp 1U49 |
5EB-2417H-00-00 |
US $7.31 |
||
|
27
|
27
950-27060-12-00 Bolt, FlangeU49 |
950-27060-12-00 |
from US $1.28 |
||
|
28
|
28
4HM-24602-00-00 Cap AssyU49 |
4HM-24602-00-00 |
from US $221.83 |
||
| replacement | |||||
|
28
|
28
4HM-24602-01-00 Cap AssyU49 |
4HM-24602-01-00 |
from US $180.71 |
||
|
29
|
29
90110-05112-00 Bolt, Hexagon Socket HeadU49 |
90110-05112-00 |
from US $1.70 |
||
|
30
|
30
91317-05010-00 BoltU49 |
91317-05010-00 |
from US $1.21 |
||
|
31
|
31
4TV-24560-00-00 Filter AssyU49 |
4TV-24560-00-00 |
from US $23.42 |
||
|
32
|
32
1AE-24366-00-00 Clamp, Fuel Pipe 1U49 |
1AE-24366-00-00 |
from US $7.08 |
||
| replacement | |||||
|
32
|
32
4BR-24366-00-00 Clamp, Fuel Pipe 1U49 |
4BR-24366-00-00 |
from US $7.08 |
||
|
33
|
33
985-07060-12-00
Screw, Pan Head
U49 |
985-07060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
985-17060-12-00 Screw, Pan HeadU49 |
985-17060-12-00 |
from US $1.34 |
||
|
34
|
34
92907-06600-00 Washer, PlateU49 |
92907-06600-00 |
from US $1.04 |
||
|
35
|
35
5EB-24491-00-00 Bracket, Fuel PumpU49 |
5EB-24491-00-00 |
US $51.39 |
||
|
36
|
36
985-07050-10-00
Screw, Pan Head
U49 |
985-07050-10-00 |
— | ||
| replacement | |||||
|
36
|
36
985-17050-10-00 Screw, Pan HeadU49 |
985-17050-10-00 |
from US $1.21 |
||
|
37
|
37
90480-13163-00 GrommetU49 |
90480-13163-00 |
from US $1.70 |
||
|
38
|
38
90387-060G7-00 Collar(47X)U49 |
90387-060G7-00 |
from US $1.35 |
||
|
39
|
39
90119-06096-00 Bolt, With WasherU49 |
90119-06096-00 |
from US $1.34 |
||
| replacement | |||||
|
39
|
39
90119-06063-00 Bolt, With Washer (10V)U49 |
90119-06063-00 |
from US $1.70 |
||
|
40
|
40
90445-102G9-00 Hose (L650)U49 |
90445-102G9-00 |
from US $7.69 |
||
| replacement | |||||
|
40
|
40
90445-105K7-00 Hose (L730)U49 |
90445-105K7-00 |
from US $10.34 |
||
|
41
|
41
904-67100-08-00
Clip
U49 |
904-67100-08-00 |
— | ||
| replacements | |||||
|
41
|
41
90467-100A1-00 ClipU49 |
90467-100A1-00 |
from US $1.28 |
||
|
41
|
41
90467-11106-00 ClipU49 |
90467-11106-00 |
from US $1.28 |
||
|
42
|
42
90464-12089-00 ClampU49 |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
42
|
42
90464-10112-00 ClampU49 |
90464-10112-00 |
from US $1.35 |
||
|
43
|
43
5EB-2414K-00-00 Damper, Plate 3U49 |
5EB-2414K-00-00 |
US $6.05 |
||
|
44
|
44
5EB-2414H-00-00 Damper, Plate 1U49 |
5EB-2414H-00-00 |
from US $4.23 |
||
|
45
|
45
5EB-2411J-00-00 Damper, Side CoverU49 |
5EB-2411J-00-00 |
US $3.20 |
||
|
46
|
46
5EB-2414J-00-00 Damper, Plate 2U49 |
5EB-2414J-00-00 |
US $3.20 |
||
|
47
|
47
5EB-13907-00-00 Fuel Pump CompU49 |
5EB-13907-00-00 |
from US $411.93 |
||
| replacements | |||||
|
47
|
47
5EB-13907-01-00 Fuel Pump CompU49 |
5EB-13907-01-00 |
from US $411.93 |
||
|
47
|
47
5EB-13907-02-00 U49 |
5EB-13907-02-00 |
US $460.57 |
||
|
48
|
48
5EB-14294-00-00 HoseU49 |
5EB-14294-00-00 |
from US $38.27 |
||
|
49
|
49
90467-11044-00 Clip (7K7)U49 |
90467-11044-00 |
from US $1.28 |
||
