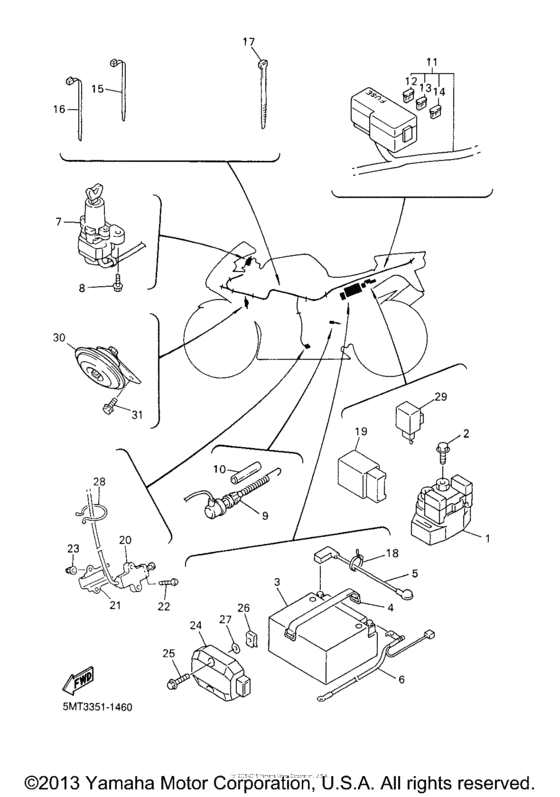

Electrical (2) Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2002
- Model code
- 5MTF
- Sales region
- USA
- Базовая модель
- YZFR6P
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4YR-81940-00-00 Starter Relay Assy (Rc19-018) |
4YR-81940-00-00 |
from US $84.28 |
||
| replacement | |||||
|
1
|
1
4YR-81940-02-00 Starter Relay Assy (Rc19-018) |
4YR-81940-02-00 |
from US $84.28 |
||
|
2
|
2
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
3
|
3
5FL-82100-00-00
Gt9B4 Gs Battery -
GS BATTERY - |
5FL-82100-00-00 |
— | ||
| replacements | |||||
|
3
|
3
GT9-B4000-00-00 LENS, TAILLIGHTGS BATTERY - |
GT9-B4000-00-00 |
US $135.88 |
||
|
3
|
3
YT9-BBS00-00-00 Battery Assy (Gs Gt9B-4)GS BATTERY - |
YT9-BBS00-00-00 |
US $182.90 |
||
|
4
|
4
5JJ-82131-00-00 Band, Battery |
5JJ-82131-00-00 |
from US $6.38 |
||
|
5
|
5
5JJ-82115-00-00 Wire, Plus Lead |
5JJ-82115-00-00 |
US $38.66 |
||
|
6
|
6
5MT-82116-10-00 Wire, Minus Lead |
5MT-82116-10-00 |
US $40.39 |
||
|
7
|
7
5EB-82501-11-00 Main Switch Steering Lock |
5EB-82501-11-00 |
from US $163.50 |
||
|
8
|
8
901-09080-G5-00
Bolt
|
901-09080-G5-00 |
— | ||
| replacement | |||||
|
8
|
8
901-09081-96-00 Bolt |
901-09081-96-00 |
from US $1.70 |
||
|
9
|
9
3XV-82530-01-00
Stop Switch Assy
|
3XV-82530-01-00 |
— | ||
|
10
|
10
90446-08001-00 Hose |
90446-08001-00 |
from US $1.98 |
||
|
11
|
11
5MT-82590-10-00
Wire Harness Assy
|
5MT-82590-10-00 |
— | ||
|
12
|
12
5JJ-82151-10-00 Fuse (15A-Bl)15A |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
12
|
12
67F-82151-50-00 Fuse (15A)15A |
67F-82151-50-00 |
from US $1.98 |
||
|
13
|
13
5JJ-82151-00-00 Fuse (7.5A-Bl)7.5A-BL |
5JJ-82151-00-00 |
from US $2.98 |
||
|
14
|
14
5JJ-82151-20-00 Fuse (20A-Bl)20A-BL |
5JJ-82151-20-00 |
from US $3.54 |
||
|
15
|
15
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
16
|
16
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
17
|
17
3MA-82591-00-00 Band |
3MA-82591-00-00 |
from US $2.69 |
||
|
18
|
18
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
|
19
|
19
5EB-81950-20-00 Relay Assy (5Eb-00)5EB-00 |
5EB-81950-20-00 |
from US $114.53 |
||
|
20
|
20
5EB-82566-00-00 Switch, Side Stand |
5EB-82566-00-00 |
from US $85.63 |
||
| replacement | |||||
|
20
|
20
5EB-82566-01-00 Switch, Side Stand |
5EB-82566-01-00 |
from US $85.63 |
||
|
21
|
21
5JJ-82388-00-00 Plate |
5JJ-82388-00-00 |
from US $7.37 |
||
|
22
|
22
92017-05030-00 Bolt, Button Head |
92017-05030-00 |
from US $2.13 |
||
|
23
|
23
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
24
|
24
4JH-81960-01-00 Rectifier-Regulator Assy |
4JH-81960-01-00 |
from US $210 |
||
|
25
|
25
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
| replacement | |||||
|
25
|
25
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
26
|
26
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
26
|
26
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.54 |
||
|
27
|
27
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
28
|
28
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
29
|
29
3GM-83350-01-00
Flasher Relay Assy
|
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
29
|
29
3GM-83350-02-00 Flasher Relay Assy |
3GM-83350-02-00 |
from US $51.67 |
||
|
29
|
29
3GM-83350-03-00 Flasher Relay Assy |
3GM-83350-03-00 |
US $93.53 |
||
|
30
|
30
2KG-83371-00-00 Horn |
2KG-83371-00-00 |
from US $89.25 |
||
|
31
|
31
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.07 |
||
