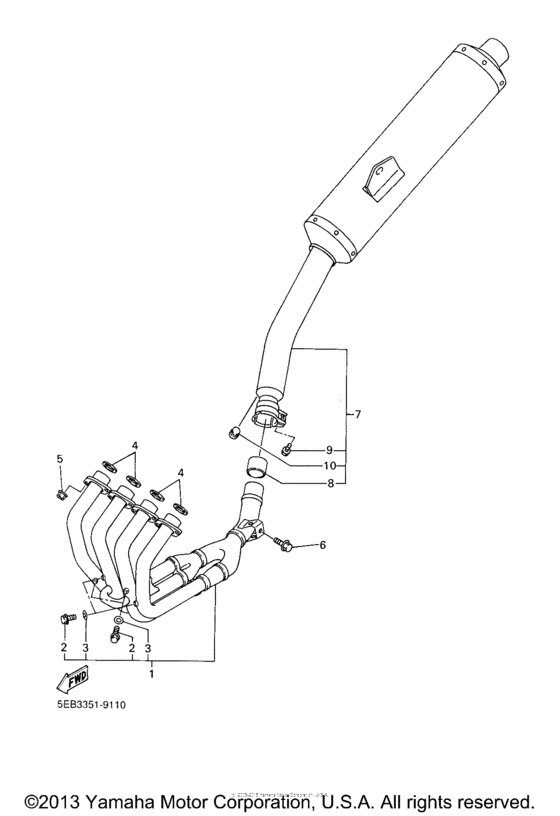

Exhaust Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2002
- Model code
- 5MTF
- Sales region
- USA
- Базовая модель
- YZFR6P
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5MT-14602-00-00
Exhaust Pipe Comp
|
5MT-14602-00-00 |
— | ||
|
2
|
2
97080-06008-00 Bolt, Hex |
97080-06008-00 |
from US $1.56 |
||
|
3
|
3
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
4
|
4
3YF-14613-01-00 Gasket, Exhaust Pipe |
3YF-14613-01-00 |
from US $2.98 |
||
|
5
|
5
90179-08410-00 Nut |
90179-08410-00 |
from US $1.70 |
||
|
6
|
6
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
7
|
7
5GV-14710-00-00 Muffler Assy 1 |
5GV-14710-00-00 |
US $1,211.36 |
||
|
8
|
8
5EB-14714-00-00 Gasket, Muffler |
5EB-14714-00-00 |
from US $26.35 |
||
| replacement | |||||
|
8
|
8
5EB-14714-01-00 Gasket, Muffler |
5EB-14714-01-00 |
from US $26.35 |
||
|
9
|
9
95814-08025-00 Bolt, Flange |
95814-08025-00 |
from US $2.69 |
||
|
10
|
10
4FM-24181-00-00 Damper, Locating 1 |
4FM-24181-00-00 |
from US $4.95 |
||
