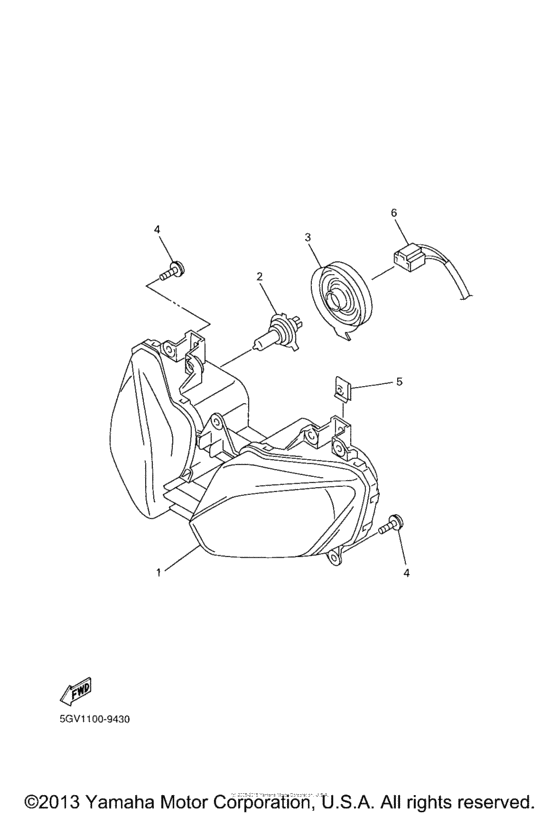

Headlight Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2002
- Model code
- 5MTF
- Sales region
- USA
- Базовая модель
- YZFR6P
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-84310-20-00 Headlight Unit Assy |
5EB-84310-20-00 |
from US $482.35 |
||
| replacement | |||||
|
1
|
1
5EB-84310-21-00 Headlight Assy |
5EB-84310-21-00 |
from US $526.28 |
||
|
2
|
2
8V0-84314-00-00
Bulb (12V 60/55W Halogen)
12V-60/55W |
8V0-84314-00-00 |
— | ||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W |
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
12V-60/55W |
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight12V-60/55W |
5VK-H4314-00-00 |
US $42.42 |
||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W |
2F9-84314-00-00 |
from US $29.16 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight12V-60/55W |
8V0-84314-10-00 |
from US $42.42 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight12V-60/55W |
8V0-84314-10-00 |
from US $42.42 |
||
|
3
|
3
4KM-84397-00-00 Cover, Socket |
4KM-84397-00-00 |
from US $35.37 |
||
|
4
|
4
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
4
|
4
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
|
5
|
5
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
5
|
5
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
6
|
6
5MT-84359-10-00 Cord, Headlight |
5MT-84359-10-00 |
from US $185.13 |
||
