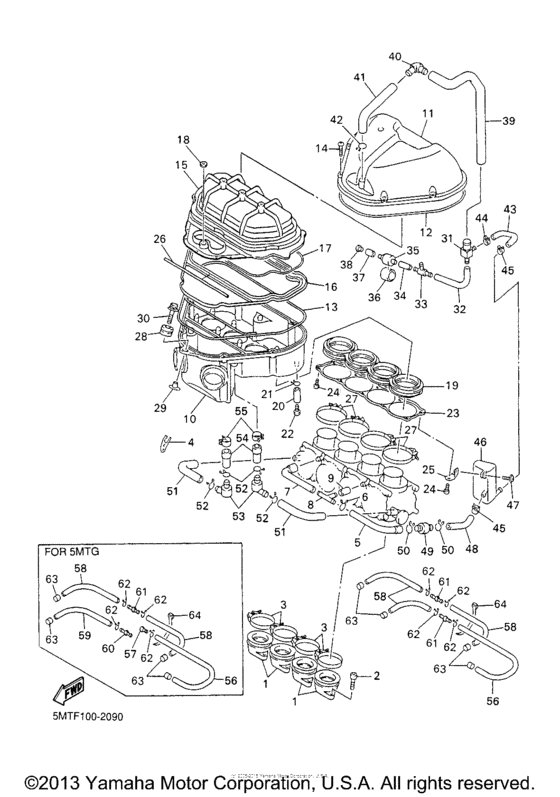

Intake Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2002
- Model code
- 5MTF
- Sales region
- USA
- Базовая модель
- YZFR6P
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EB-13586-00-00 Joint, Carburetor 1 |
5EB-13586-00-00 |
from US $57.75 |
||
|
2
|
2
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
3
|
3
90450-54093-00 Hose Clamp Assy |
90450-54093-00 |
from US $4.04 |
||
| replacement | |||||
|
3
|
3
90450-54008-00 Hose Clamp Assy |
90450-54008-00 |
from US $4.39 |
||
|
4
|
4
5EB-14413-00-00 Stay |
5EB-14413-00-00 |
from US $2.64 |
||
|
5
|
5
5EB-14349-00-00 Pipe |
5EB-14349-00-00 |
US $10.48 |
||
|
6
|
6
90467-15197-00 Clip |
90467-15197-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
7
|
7
5EB-14348-00-00
Pipe 1
|
5EB-14348-00-00 |
— | ||
|
8
|
8
90413-10016-00 Way 3 |
90413-10016-00 |
US $28.66 |
||
|
9
|
9
90445-11795-00 Hose (L30) |
90445-11795-00 |
from US $2.13 |
||
|
10
|
10
5EB-14411-01-00 Case, Air Cleaner 1 |
5EB-14411-01-00 |
US $79.07 |
||
|
10
|
10
5GV-14411-00-00 Case, Air Cleaner 1 |
5GV-14411-00-00 |
US $68.06 |
||
|
11
|
11
5EB-14421-00-00 Case, Air Cleaner 2 |
5EB-14421-00-00 |
from US $30.84 |
||
|
12
|
12
5EB-14452-00-00 Seal |
5EB-14452-00-00 |
from US $8.93 |
||
| replacement | |||||
|
12
|
12
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
13
|
13
5EB-14462-00-00 Seal |
5EB-14462-00-00 |
from US $8.93 |
||
|
14
|
14
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
15
|
15
5EB-14450-01-00 Element Assy, Air Cleaner |
5EB-14450-01-00 |
from US $101.61 |
||
| replacement | |||||
|
15
|
15
5EB-14450-02-00 |
5EB-14450-02-00 |
US $116.46 |
||
|
16
|
16
5EB-1441F-01-00 Partition, Air Cleaner Case |
5EB-1441F-01-00 |
from US $24.09 |
||
|
17
|
17
5EB-14457-00-00 Seal |
5EB-14457-00-00 |
from US $8.93 |
||
| replacement | |||||
|
17
|
17
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
18
|
18
5EB-1446R-10-00 Seal |
5EB-1446R-10-00 |
from US $2.05 |
||
|
19
|
19
5EB-14453-00-00 Joint, Air Cleaner 1 |
5EB-14453-00-00 |
from US $26.07 |
||
|
20
|
20
90445-11795-00 Hose (L30) |
90445-11795-00 |
from US $2.13 |
||
|
21
|
21
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
21
|
21
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
21
|
21
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
22
|
22
903-38081-74-00 Plug |
903-38081-74-00 |
from US $1.84 |
||
|
23
|
23
5EB-14477-00-00 Plate |
5EB-14477-00-00 |
from US $30.46 |
||
|
24
|
24
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
25
|
25
5EB-1441L-00-00 Panel 1 |
5EB-1441L-00-00 |
from US $6.46 |
||
|
26
|
26
5EB-14467-00-00 Seal |
5EB-14467-00-00 |
from US $2.27 |
||
|
27
|
27
90450-68094-00 Hose Clamp Assy |
90450-68094-00 |
from US $12.75 |
||
|
28
|
28
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
|
29
|
29
903-87065-J6-00
Collar
|
903-87065-J6-00 |
— | ||
| replacement | |||||
|
29
|
29
903-87061-59-00 Collar |
903-87061-59-00 |
from US $1.56 |
||
|
30
|
30
90119-06172-00 Bolt, With Washer(2Wg) |
90119-06172-00 |
from US $1.70 |
||
| replacement | |||||
|
30
|
30
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
31
|
31
90413-18033-00 Way 3 |
90413-18033-00 |
US $10.84 |
||
|
32
|
32
4TV-14349-00-00 Pipe |
4TV-14349-00-00 |
from US $5.44 |
||
|
33
|
33
90413-09032-00
Way 3
|
90413-09032-00 |
— | ||
|
34
|
34
90445-112E0-00 Hose (L70) |
90445-112E0-00 |
from US $1.34 |
||
|
35
|
35
4TV-14226-00-00 Cup, Drain |
4TV-14226-00-00 |
from US $8.64 |
||
|
36
|
36
90445-307K7-00 Hose (L35) |
90445-307K7-00 |
from US $4.53 |
||
|
37
|
37
90445-11262-00 Hose (L30) |
90445-11262-00 |
from US $2.13 |
||
| replacement | |||||
|
37
|
37
90445-11795-00 Hose (L30) |
90445-11795-00 |
from US $2.13 |
||
|
38
|
38
903-38081-74-00 Plug |
903-38081-74-00 |
from US $1.84 |
||
|
39
|
39
5EB-14197-00-00 Pipe |
5EB-14197-00-00 |
US $38.74 |
||
|
40
|
40
5EB-14485-00-00
Pipe, Joint
|
5EB-14485-00-00 |
— | ||
|
41
|
41
5EB-14466-00-00
Pipe
|
5EB-14466-00-00 |
— | ||
|
42
|
42
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
43
|
43
5EB-14419-01-00
Pipe
|
5EB-14419-01-00 |
— | ||
|
44
|
44
90467-16098-00 Clip |
90467-16098-00 |
from US $4.59 |
||
|
45
|
45
90467-15054-00 Clip |
90467-15054-00 |
from US $1.28 |
||
|
46
|
46
5EB-13581-01-00
Chamber, Air
|
5EB-13581-01-00 |
— | ||
|
47
|
47
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $2.83 |
||
|
48
|
48
5EB-1444J-01-00
Pipe
|
5EB-1444J-01-00 |
— | ||
|
49
|
49
4X7-14467-01-00 Seal |
4X7-14467-01-00 |
from US $16.58 |
||
|
50
|
50
90467-15197-00 Clip |
90467-15197-00 |
from US $1.56 |
||
| replacement | |||||
|
50
|
50
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
51
|
51
5EB-1443J-00-00 Pipe |
5EB-1443J-00-00 |
US $12.24 |
||
|
52
|
52
90467-15012-00 Clip |
90467-15012-00 |
from US $1.56 |
||
|
53
|
53
3LN-24515-00-00 Net, Filter 2 |
3LN-24515-00-00 |
from US $14.87 |
||
|
54
|
54
5EB-14148-00-00 Pipe |
5EB-14148-00-00 |
from US $6.02 |
||
|
55
|
55
90467-17128-00 Clip |
90467-17128-00 |
from US $1.28 |
||
|
56
|
56
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
56
|
56
90445-09500-00 Hose (L685) |
90445-09500-00 |
from US $16.86 |
||
| replacement | |||||
|
56
|
56
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
57
|
57
90338-05240-00
Plug(4Jh)
|
90338-05240-00 |
— | ||
|
58
|
58
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
59
|
59
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
60
|
60
4MM-13582-00-00 Pipe |
4MM-13582-00-00 |
from US $24.79 |
||
|
61
|
61
90338-05271-00 Plug |
90338-05271-00 |
US $3.58 |
||
|
62
|
62
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
63
|
63
90467-09120-00 Clip |
90467-09120-00 |
from US $1.98 |
||
|
64
|
64
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.35 |
||
