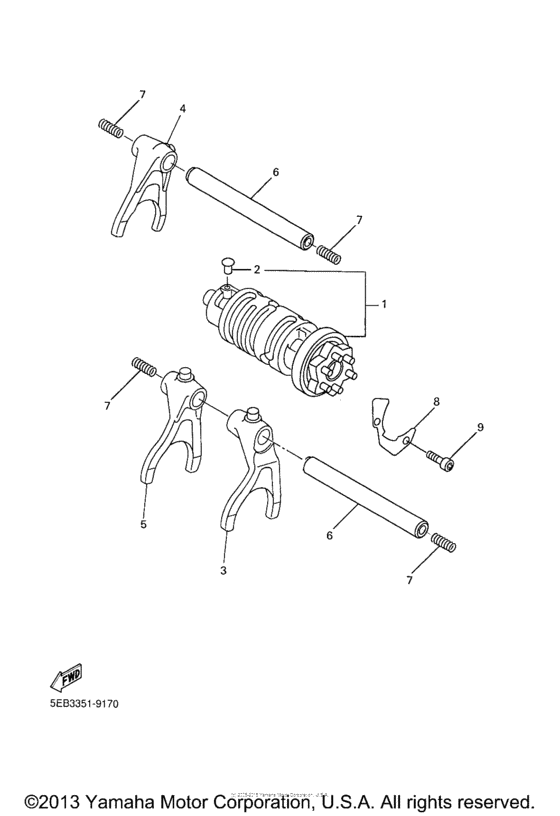

Shift Cam & Fork Diagram Yamaha YZF-R6/ YZF600 R6
- Year
- 2002
- Model code
- 5MTF
- Sales region
- USA
- Базовая модель
- YZFR6P
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5MT-18540-00-00 Shift Cam Assy |
5MT-18540-00-00 |
from US $197.93 |
||
|
2
|
2
136-18542-00-00 Point, Neutral |
136-18542-00-00 |
from US $1.98 |
||
|
3
|
3
5EB-18511-00-00 Fork, Shift 1 |
5EB-18511-00-00 |
from US $89.67 |
||
|
4
|
4
5MT-18512-00-00 Fork, Shift 2 |
5MT-18512-00-00 |
from US $73.78 |
||
|
5
|
5
5EB-18513-00-00 Fork, Shift 3 |
5EB-18513-00-00 |
from US $61.76 |
||
|
6
|
6
4XV-18531-00-00 Bar, Shift Fork Guide 1 |
4XV-18531-00-00 |
from US $23.38 |
||
|
7
|
7
90501-064L1-00 Spring, Compression |
90501-064L1-00 |
from US $1.70 |
||
|
8
|
8
5EB-18536-00-00 Stopper, Shift Bar |
5EB-18536-00-00 |
from US $6.95 |
||
|
9
|
9
903-17060-12-00
Bolt
|
903-17060-12-00 |
— |
