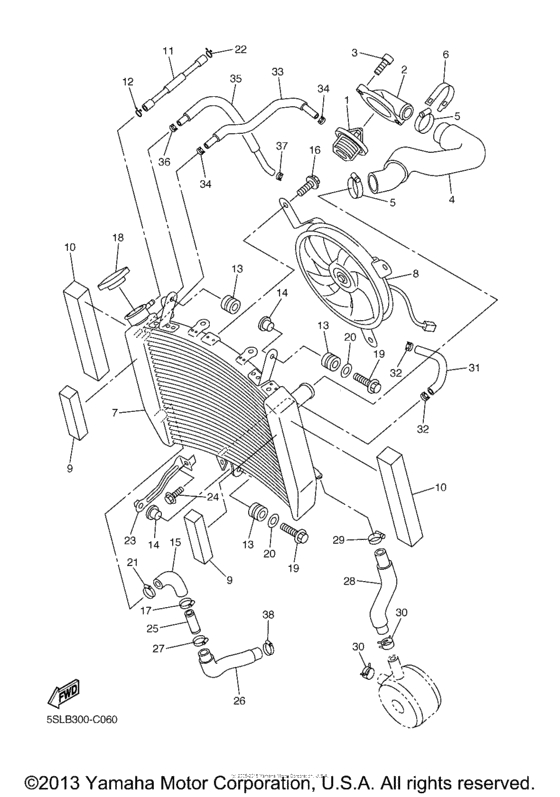

Radiator & hose Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2004
- Model code
- 5SLJ
- Sales region
- United States (California)
- Базовая модель
- YZFR6SCS
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-12410-00-00 Thermostat Assy |
5SL-12410-00-00 |
from US $53.19 |
||
| replacement | |||||
|
1
|
1
5SL-12410-01-00 THERMOSTAT ASSY |
5SL-12410-01-00 |
from US $53.19 |
||
|
2
|
2
5EB-12413-00-00 Cover, Thermostat |
5EB-12413-00-00 |
from US $33.15 |
||
|
3
|
3
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
4
|
4
5SL-12578-00-00 Hose 3 |
5SL-12578-00-00 |
from US $36.06 |
||
|
5
|
5
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
6
|
6
5GV-1246E-00-00 Cover 2 |
5GV-1246E-00-00 |
from US $3.26 |
||
|
7
|
7
5SL-12461-00-00 Radiator Assy |
5SL-12461-00-00 |
from US $486.95 |
||
|
8
|
8
5SL-12405-00-00 Blower Assy |
5SL-12405-00-00 |
from US $316.33 |
||
|
9
|
9
5EB-12659-00-00 Damper, Air Shroud 2 |
5EB-12659-00-00 |
from US $2.55 |
||
|
10
|
10
5EB-12668-00-00 Damper, Air Shroud 3 |
5EB-12668-00-00 |
from US $2.69 |
||
|
11
|
11
90445-08016-00 Hose |
90445-08016-00 |
from US $7.49 |
||
|
12
|
12
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
13
|
13
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.56 |
||
|
14
|
14
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
15
|
15
5SL-12579-00-00 Hose 4 |
5SL-12579-00-00 |
from US $18.42 |
||
|
16
|
16
5GJ-12675-00-00 Bolt, Blower Holding |
5GJ-12675-00-00 |
from US $1.34 |
||
|
17
|
17
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
18
|
18
5SL-12462-00-00 Cap, Radiator |
5SL-12462-00-00 |
from US $17.20 |
||
|
19
|
19
90105-06040-00 Bolt, Flange |
90105-06040-00 |
from US $1.70 |
||
|
20
|
20
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
20
|
20
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
21
|
21
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
22
|
22
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
23
|
23
5SL-1244E-00-00 Bracket 1 |
5SL-1244E-00-00 |
from US $3.82 |
||
|
24
|
24
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
24
|
24
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
25
|
25
5SL-12582-10-00
Joint, Hose 2
|
5SL-12582-10-00 |
— | ||
|
26
|
26
5SL-12551-10-00 Hose 7 |
5SL-12551-10-00 |
from US $28.90 |
||
|
27
|
27
904-50350-01-00 Hose Clamp Assy |
904-50350-01-00 |
from US $5.24 |
||
|
28
|
28
5SL-12589-01-00 Hose 6 |
5SL-12589-01-00 |
from US $19.55 |
||
|
29
|
29
90450-22017-00 Hose Clamp Assy |
90450-22017-00 |
from US $7.65 |
||
| replacement | |||||
|
29
|
29
90450-22M14-00 Hose Clamp Assy(64X) |
90450-22M14-00 |
from US $7.65 |
||
|
30
|
30
90467-200A0-00 Clip |
90467-200A0-00 |
from US $5.96 |
||
|
31
|
31
5SL-1243A-00-00 Hose 1 |
5SL-1243A-00-00 |
from US $8.36 |
||
|
32
|
32
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
32
|
32
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
33
|
33
5SL-1243E-00-00 Hose 2 |
5SL-1243E-00-00 |
from US $22.95 |
||
|
34
|
34
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
34
|
34
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
35
|
35
5SL-1244G-00-00 Hose, 4 |
5SL-1244G-00-00 |
from US $21.25 |
||
|
36
|
36
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
36
|
36
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
37
|
37
90467-11090-00 Clip |
90467-11090-00 |
from US $1.28 |
||
| replacement | |||||
|
37
|
37
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
38
|
38
90450-32001-00 Hose Clamp Assy |
90450-32001-00 |
from US $5.24 |
||
| replacement | |||||
|
38
|
38
90450-32003-00 Hose Clamp Assy |
90450-32003-00 |
from US $5.24 |
||
