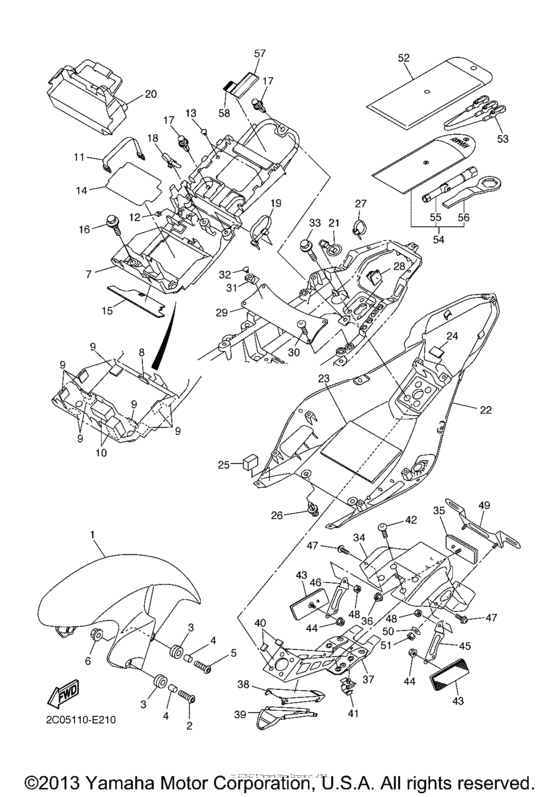

Fender Diagram Yamaha YZF-R6/ YZF600 R6 50th Anniversary Edition
- Year
- 2006
- Model code
- 2C08
- Sales region
- USA
- Базовая модель
- YZFR6SPV
- Engine Capacity
- 600
- Model
- YZF-R6
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2C0-21511-00-33 Fender, Frontfor Color YAMAHA BLACK YB / 0033 |
2C0-21511-00-33 |
from US $96.96 |
||
|
2
|
2
90111-06043-00 Bolt, Hex. Socket Button |
90111-06043-00 |
from US $1.80 |
||
|
3
|
3
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.65 |
||
|
4
|
4
90387-06057-00 Collar |
90387-06057-00 |
from US $2.24 |
||
|
5
|
5
90111-06030-00 Bolt, Hex. Socket Button |
90111-06030-00 |
from US $2.39 |
||
|
6
|
6
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $0.90 |
||
|
7
|
7
2C0-8212B-00-00 Box, Battery 1 |
2C0-8212B-00-00 |
from US $18.51 |
||
|
8
|
8
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.80 |
||
|
9
|
9
2C0-21649-00-00 Damper |
2C0-21649-00-00 |
from US $0.22 |
||
|
10
|
10
2C0-21541-00-00 Damper 1 |
2C0-21541-00-00 |
from US $0.72 |
||
|
11
|
11
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.57 |
||
|
12
|
12
90183-04039-00 Nut, Spring |
90183-04039-00 |
from US $1.94 |
||
|
13
|
13
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
13
|
13
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.94 |
||
|
14
|
14
2C0-821A1-00-00 Seat Battery Assy 1 |
2C0-821A1-00-00 |
from US $11.02 |
||
|
15
|
15
2C0-821A2-00-00 Seat Battery Assy 2 |
2C0-821A2-00-00 |
from US $11.02 |
||
|
16
|
16
90109-06171-00 Bolt |
90109-06171-00 |
from US $1.94 |
||
|
17
|
17
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.65 |
||
|
18
|
18
90464-12089-00 Clamp |
90464-12089-00 |
from US $1.35 |
||
| replacement | |||||
|
18
|
18
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.20 |
||
|
19
|
19
90464-44002-00 Clamp |
90464-44002-00 |
from US $2.24 |
||
|
20
|
20
2C0-82160-00-00 Battery Cover Assy |
2C0-82160-00-00 |
from US $68.51 |
||
|
21
|
21
2C0-21376-00-00 Band, Tool |
2C0-21376-00-00 |
from US $7.34 |
||
|
22
|
22
2C0-21611-00-P3 Fender, Rearfor Color REDDISH YELLOW COCKTAIL 1 RYC1 / 0251 |
2C0-21611-00-P3 |
from US $118.32 |
||
|
23
|
23
2C0-21639-00-00 Damper 2 |
2C0-21639-00-00 |
from US $1.49 |
||
|
24
|
24
5GM-27445-00-00 Plate 1 |
5GM-27445-00-00 |
from US $0.43 |
||
|
25
|
25
2C0-2162G-00-00 Plate 1 |
2C0-2162G-00-00 |
from US $1.60 |
||
|
26
|
26
902-69070-10-00 Rivet |
902-69070-10-00 |
from US $1.65 |
||
|
27
|
27
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
27
|
27
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.20 |
||
|
28
|
28
90464-13004-00 Clamp |
90464-13004-00 |
from US $3.59 |
||
|
29
|
29
2C0-21131-00-00 Bracket |
2C0-21131-00-00 |
US $29.61 |
||
|
30
|
30
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.50 |
||
|
31
|
31
5SL-2172E-00-00 Stay, Side Cover 1 |
5SL-2172E-00-00 |
from US $3.24 |
||
|
32
|
32
903-38060-18-00
Plug
|
903-38060-18-00 |
— | ||
| replacement | |||||
|
32
|
32
903-38071-80-00 Plug |
903-38071-80-00 |
from US $1.94 |
||
|
33
|
33
90119-06138-00 Bolt, With Washer |
90119-06138-00 |
from US $1.94 |
||
|
34
|
34
2C0-21629-10-00 Guard, Mud |
2C0-21629-10-00 |
from US $16.16 |
||
| replacement | |||||
|
34
|
34
2C0-21629-11-00 Guard, Mud |
2C0-21629-11-00 |
from US $15.42 |
||
|
35
|
35
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $13.02 |
||
|
36
|
36
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.43 |
||
|
37
|
37
2C0-21640-00-00 Rear Stay Comp |
2C0-21640-00-00 |
from US $160.63 |
||
|
38
|
38
2C0-2163A-00-00 Cover, Rear Fender 1 |
2C0-2163A-00-00 |
from US $3.24 |
||
|
39
|
39
2C0-2163E-00-00 Cover, Rear Fender 2 |
2C0-2163E-00-00 |
from US $3.24 |
||
|
40
|
40
2C0-21669-00-00 Seal |
2C0-21669-00-00 |
from US $0.18 |
||
|
41
|
41
90464-14228-00 Clamp |
90464-14228-00 |
from US $3.96 |
||
|
42
|
42
90109-06182-00 Bolt |
90109-06182-00 |
from US $9.67 |
||
|
43
|
43
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $13.02 |
||
|
44
|
44
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $0.90 |
||
|
45
|
45
2C0-21688-00-00 Bracket, Rear Stay |
2C0-21688-00-00 |
from US $5.44 |
||
|
46
|
46
2C0-21689-00-00 Bracket, Rear Stay 2 |
2C0-21689-00-00 |
from US $5.44 |
||
|
47
|
47
90159-06011-00 Screw, With Washer |
90159-06011-00 |
from US $1.65 |
||
|
48
|
48
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
48
|
48
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.05 |
||
|
49
|
49
5MT-84751-00-00 Bracket, License |
5MT-84751-00-00 |
from US $10.28 |
||
|
50
|
50
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.13 |
||
|
51
|
51
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
51
|
51
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.05 |
||
|
52
|
52
2C0-28100-00-00 Tool Kit |
2C0-28100-00-00 |
from US $48.05 |
||
|
53
|
53
2C0-21370-00-00 Helmet Hanger Assy |
2C0-21370-00-00 |
from US $30.67 |
||
|
54
|
54
2C0-28110-00-00 Tool Kit, 2 |
2C0-28110-00-00 |
from US $41.92 |
||
|
55
|
55
4XV-2814F-00-00 Box, Spark Plug |
4XV-2814F-00-00 |
from US $26.18 |
||
|
56
|
56
4FM-28135-00-00 Spanner, Special |
4FM-28135-00-00 |
from US $15.71 |
||
|
57
|
57
3JJ-28446-A1-00 Label, Caution |
3JJ-28446-A1-00 |
from US $3.52 |
||
|
58
|
58
3TB-24877-A0-00 Label, Caution |
3TB-24877-A0-00 |
from US $1.47 |
||
