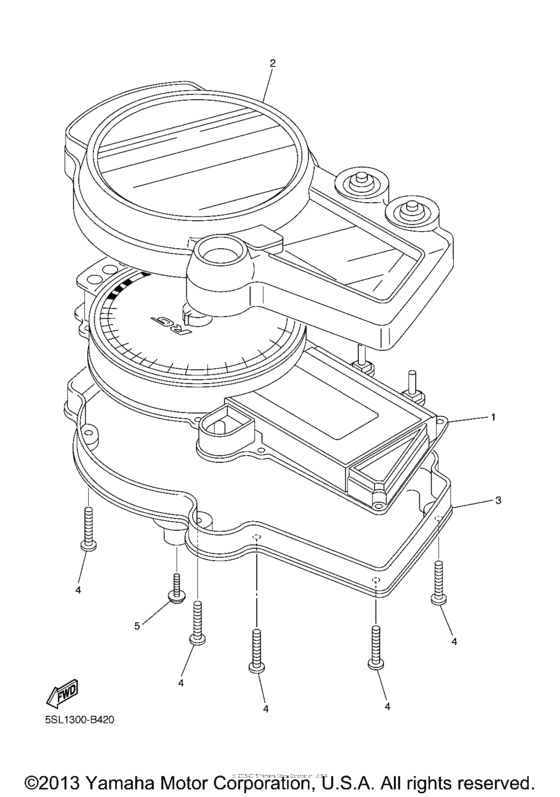

Meter Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2003
- Model code
- 5SL7
- Sales region
- USA
- Базовая модель
- YZFR6SR
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-83570-20-00 Speedometer Assy (Mph) |
5SL-83570-20-00 |
from US $637.51 |
||
|
2
|
2
5PW-8353E-00-00 Cover, Speedometer |
5PW-8353E-00-00 |
from US $156.12 |
||
|
3
|
3
5PW-83572-00-00 Case, Speedometer Lower |
5PW-83572-00-00 |
from US $47.39 |
||
|
4
|
4
5PW-8352S-00-00 Screw, Panel Ftting |
5PW-8352S-00-00 |
from US $1.84 |
||
|
5
|
5
901-64050-14-00
Screw, Tapping
|
901-64050-14-00 |
— | ||
| replacement | |||||
|
5
|
5
901-64050-01-00 Screw, Tapping |
901-64050-01-00 |
from US $1.34 |
||
