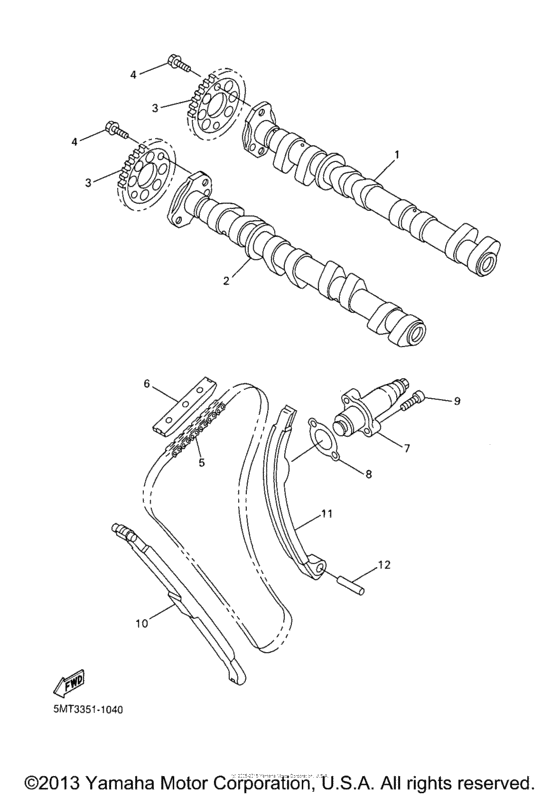

Camshaft & chain Diagram Yamaha YZF-R6/ YZF600 R6S
- Year
- 2003
- Model code
- 5SL8
- Sales region
- United States (California)
- Базовая модель
- YZFR6SRC
- Engine Capacity
- 600
- Model
- YZF-R6S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5SL-12170-00-00 Camshaft Assy 1 |
5SL-12170-00-00 |
from US $334.52 |
||
|
2
|
2
5SL-12180-00-00 Camshaft Assy 2 |
5SL-12180-00-00 |
US $330.71 |
||
|
3
|
3
5EB-12176-00-00 Sprocket, Cam Chain |
5EB-12176-00-00 |
from US $93.53 |
||
|
4
|
4
90105-07342-00 Bolt, Flange |
90105-07342-00 |
from US $2.55 |
||
| replacement | |||||
|
4
|
4
90105-07004-00 Bolt, Flange |
90105-07004-00 |
from US $1.66 |
||
|
5
|
5
945-91491-20-00 Chain |
945-91491-20-00 |
from US $42.28 |
||
|
6
|
6
5BE-12241-00-00
Guide, Stopper 2
|
5BE-12241-00-00 |
— | ||
| replacement | |||||
|
6
|
6
5BE-12241-01-00 GUIDE STOPPER 2 |
5BE-12241-01-00 |
from US $14.22 |
||
|
7
|
7
5SL-12210-10-00
Tensioner Assy, Cam Chain
|
5SL-12210-10-00 |
— | ||
| replacement | |||||
|
7
|
7
5SL-12210-11-00 TENSIONER ASSY CAM CHAIN |
5SL-12210-11-00 |
from US $125.59 |
||
|
8
|
8
4FM-12213-00-00 Gasket, Tensioner Case |
4FM-12213-00-00 |
from US $1.56 |
||
|
9
|
9
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
10
|
10
5EB-12251-00-00 Damper, Chain 1 |
5EB-12251-00-00 |
from US $45.18 |
||
|
11
|
11
5EB-12252-10-00 Damper, Chain 2 |
5EB-12252-10-00 |
from US $71.29 |
||
| replacement | |||||
|
11
|
11
5EB-12252-11-00 Damper, Chain 2 |
5EB-12252-11-00 |
from US $83.72 |
||
|
12
|
12
93607-44190-00 Pin, Dowel |
93607-44190-00 |
from US $5.10 |
||
